Wavecor Tweeter 30mm TW030WA13 Neodymium Dome Low Inductance 4 Ohm

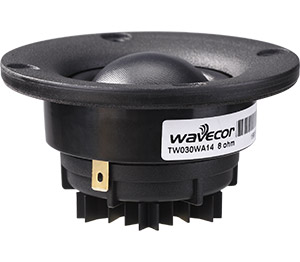

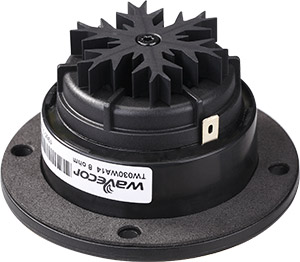

Thumbnail Filmstrip of Wavecor Tweeter 30mm TW030WA13 Neodymium Dome Low Inductance 4 Ohm Images

    Purchase Wavecor Tweeter 30mm TW030WA13 Neodymium Dome Low Inductance 4 Ohm

    SKU: Wavecor-Tweeter-TW030WA13 Wavecor Tweeter 30mm TW030WA13 Neodymium Dome Low Inductance 4 Ohm

    $198.00 per pair
    Brand: Wavecor
    Quantity in Basket:  None







    Wavecor Speaker Driver - TW030WA13 - 4 Ohm 30mm Chambered Neodymium Textile Tweeter

    Description
    TW030WA13 is a true high-end tweeter designed for the most demanding applications featuring an array of performance improving details that participate in obtaining low resonance frequency, low distortion and very high frequency extension.



    Features

    • Precision textile dome ensuring extended response and very good consistency
    • 30 mm voice coil design with high power handling, and low resonance frequency
    • Copper clad center pole yielding very low voice coil inductance for reduced distortion and increased high frequency output
    • Vented through to a damped rear chamber for low resonance frequency and low distortion
    • Internal volumes for low resonance frequency and low distortion
    • Optimized dome shape for ultra high frequency cut-off
    • Rear heat sink for increased long term power handling
    • Vented voice coil former for reduced distortion and compression
    • Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
    • Built-in cavities under dome/edge to equalise pressure - for lower distortion and lower resonance frequency
    • Flexible lead wires for higher power handling and larger excursion
    • Gold plated terminals to prevent oxidation and ensure long-term reliable connection
    • Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing



    Frequency SPL and Impedance Response Graphs

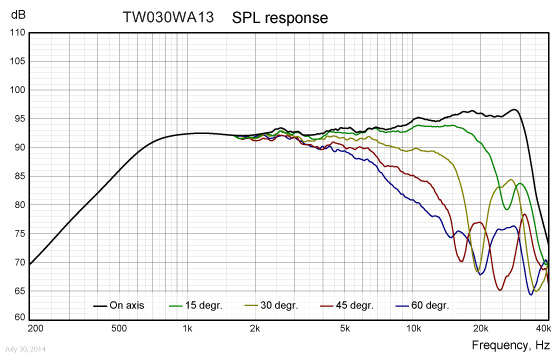

    Loudspeaker Frequency Response Graph
    Loudspeaker Frequency Response Graph
    Measuring conditions, SPL
    Driver mounting: Flush in infinite baffle
    Microphone distance: 1.0 m
    Input level: 2.83 VRMS
    Smoothing: 1/6 oct.

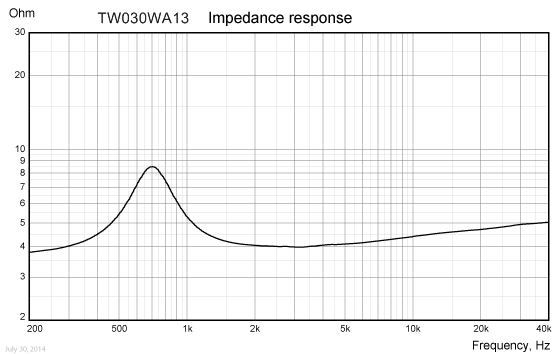

    Loudspeaker Impedance Response Graph
    Loudspeaker Impedance Response Graph
    Measuring conditions, impedance
    Driver mounting: Free air, no baffle
    Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA
    Smoothing: None










    Technical Specifications

    Notes Parameter Value Unit
      Nominal size 30 mm
      Nominal impedance 4 Ohm
      Recommended frequency range
    2-30 kHz
    1, 4 Sensitivity, 2.83V/1m (average SPL in range 2 - 20 kHz) 93.5 dB
    2 Power handling, short term, IEC 268-5, 2.5 kHz @ 12dB/oct.   W
    2 Power handling, long term, IEC 268-5, 2.5 kHz @ 12dB/oct.   W
    2 Power handling, continuous, IEC 268-5, 2.5 kHz @ 12dB/oct. 35 W
      Effective radiating area, Sd 11.5 cm2
    3, 4, 6 Resonance frequency (free air, no baffle), Fs 690 kHz
      Moving mass, incl. air (free air, no baffle), Mms 0.43 g
    3 Force factor, Bxl 1.95 -
    3, 4, 6 Suspension compliance, Cms 0.124 mm/N
    3, 4, 6 Equivalent air volume, Vas 23 ml
    3, 4, 6 Mechanical resistance, Rms 0.76 Ns/m
    3, 4, 6 Mechanical Q, Qms 2.45 -
    3, 4, 6 Electrical Q, Qes 1.72 -
    3, 4, 6 Total Q, Qts 1.01 -
    4 Voice coil resistance, RDC 3.5 Ohm
    5 Voice coil inductance, Le (measured at 20 kHz) 33 uH
      Voice coil inside diameter 30.4 mm
      Voice coil winding height 1.7 mm
      Air gap height 3.0 mm
      Theoretical linear motor stroke, Xmax ±0.65 mm
      Magnet weight   g
      Total unit net weight excl. packaging 0.13 kg
    3, 4, 5 Krm 4.1 mOhm
    3, 4, 5 Erm 0.48 -
    3, 4, 5 Kxm 197 mH
    3, 4, 5 Exm 0.11 -
    Note 1 Measured in infinite baffle.
    Note 2 Tested in free air (no cabinet).
    Note 3 Measured using a semi-constant current source, nominal level 2 mA.
    Note 4 Measured at 25 deg. C
    Note 5 It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.
    Note 6 Measured before burn in



    Driver Nominal Dimensions

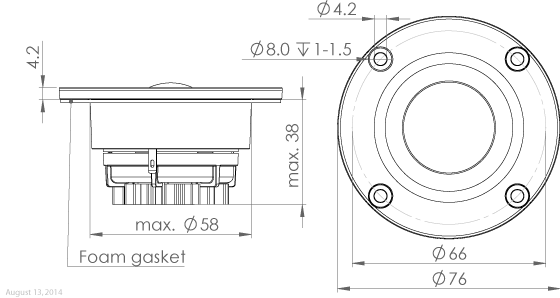

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Terminal Nominal Dimensions

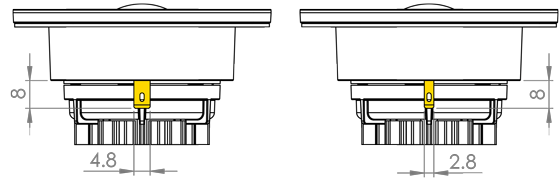

    Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
    Thickness, both terminals: 0.5 mm
    Terminal plating: Gold
