Wavecor Speaker Driver - TW030WA08 - 8 Ohm 30mm Chambered Textile Tweeter - Ferro Fluid
Description
Real high-end tweeter design with extremely low resonance frequency and distortion. Thanks to the extensive internal venting between three internal cavities no air inside is trapped. This feature extends the usable frequency range downwards to an extend very rarely found on tweeters. Adding the high power handling this tweeter is the natural candidate for high-end 2-way speaker systems.
Features
- Precision-coated textile diaphragm for improved consistency and high-frequency extension
- Extreme internal venting through pole, voice coil former, and top plate to 3 internal chambers
- Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
- Reflection-free rear chamber design with solid reinforcement ribs
- Large ferrite magnet for improved efficiency and transient response
- With or without high-stability light ferro fluid
- Flexible lead wires for higher power handling and larger excursion
- Black anodized magnet structure for increased power handling and reduced power compression
- Gold plated terminals to prevent oxidation for long-term reliable connection
- Delivered with EVA gasket attached for hassle-free mounting and secure cabinet sealing

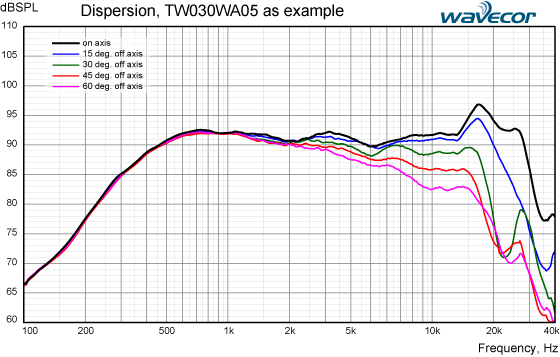

Frequency SPL and Impedance Response Graphs

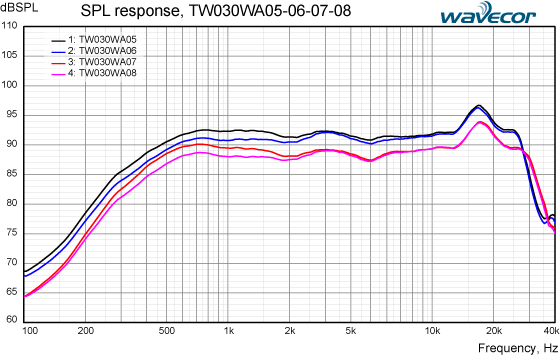

Loudspeaker Frequency Response Graph
Measuring conditions, SPL
Driver mounting: Flush in infinite baffle
Microphone distance: 1.0 m
Input level: 2.83 VRMS
Smoothing: 1/6 oct.
Loudspeaker Impedance Response Graph
Measuring conditions, impedance
Driver mounting: Free air, no baffle
Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA
Smoothing: None
Technical Specifications
| Parameter | Value | Unit |
| Nominal size | 30 | mm |
| Nominal impedance | 8 | Ohm |
| Recommended frequency range |
1.5-25 | kHz |
| Sensitivity, 2.83V/1m (average SPL in range 1 - 20 kHz) | 88½ | dB |
| Power handling, continuous, IEC 268-5, 2.0 kHz @ 12dB/oct. | 60 | W |
| Effective radiating area, Sd | 11.5 | cm2 |
| Resonance frequency, Fs | 470 | kHz |
| Moving mass, incl. air (free air, no baffle) | 0.39 | g |
| Force factor, Bxl | 2.4 | Tm |
| Suspension compliance, Cms | 0.30 | mm/N |
| Equivalent air volume, Vas | 0.056 | ml |
| Mechanical Q, Qm | 1.3 | - |
| Electrical Q, Qe | 1.25 | - |
| Total Q, Qt | 0.64 | - |
| Voice coil resistance, RDC | 6.3 | Ohm |
| Voice coil inductance | 28 | uH |
| Voice coil inside diameter | 30.4 | mm |
| Voice coil height | 1.7 | mm |
| Air gap height | 2.5 | mm |
| Magnet weight | 260 | g |
| Total unit net weight | 0.59 | kg |
| Krm (Note 1) | 64 | mOhm |
| Erm (Note 1) | 0.92 | - |
| Kxm (Note 1) | 4.3 | mH |
| Exm (Note 1) | 0.56 | - |
Driver Nominal Dimensions
Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
Terminal Nominal Dimensions
Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
Thickness, both terminals: 0.5 mm
Terminal plating: Gold
