Wavecor Tweeter 30mm TW030WA06 Ferrite Dome 4 Ohm Ferro Fluid

Thumbnail Filmstrip of Wavecor Tweeter 30mm TW030WA06 Ferrite Dome 4 Ohm Ferro Fluid Images

    Purchase Wavecor Tweeter 30mm TW030WA06 Ferrite Dome 4 Ohm Ferro Fluid

    SKU: Wavecor-Tweeter-TW030WA06 Wavecor Tweeter 30mm TW030WA06 Ferrite Dome 4 Ohm Ferro Fluid

    $85.00 each
    Brand: Wavecor
    Quantity in Basket:  None



    2 available.




    Wavecor Speaker Driver - TW030WA06 - 4 Ohm 30mm Chambered Textile Tweeter with Ferro Fluid

    Description
    Real high-end tweeter design with extremely low resonance frequency and distortion. Thanks to the extensive internal venting between three internal cavities no air inside is trapped. This feature extends the usable frequency range downwards to an extend very rarely found on tweeters. Adding the high power handling this tweeter is the natural candidate for high-end 2-way speaker systems.



    Features

    • Precision-coated textile diaphragm for improved consistency and high-frequency extension
    • Extreme internal venting through pole, voice coil former, and top plate to 3 internal chambers
    • Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
    • Reflection-free rear chamber design with solid reinforcement ribs
    • Large ferrite magnet for improved efficiency and transient response
    • With or without high-stability light ferro fluid
    • Flexible lead wires for higher power handling and larger excursion
    • Black anodized magnet structure for increased power handling and reduced power compression
    • Gold plated terminals to prevent oxidation for long-term reliable connection
    • Delivered with EVA gasket attached for hassle-free mounting and secure cabinet sealing



    Frequency SPL and Impedance Response Graphs

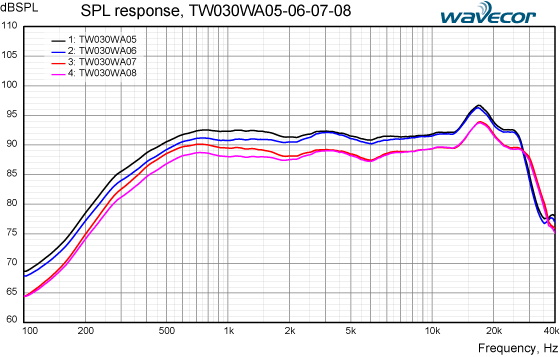

    Loudspeaker Frequency Response Graph

    Dispersion TW030WA05
    Loudspeaker Frequency Response Graph
    Measuring conditions, SPL
    Driver mounting: Flush in infinite baffle
    Microphone distance: 1.0 m
    Input level: 2.83 VRMS
    Smoothing: 1/6 oct.

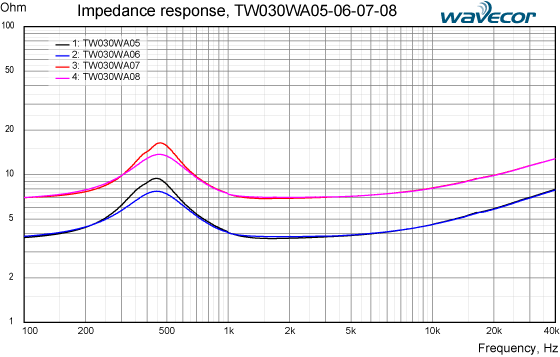

    Loudspeaker Impedance Response Graph
    Loudspeaker Impedance Response Graph
    Measuring conditions, impedance
    Driver mounting: Free air, no baffle
    Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA
    Smoothing: None



    Technical Specifications

    Parameter Value Unit
    Nominal size 30 mm
    Nominal impedance 4 Ohm
    Recommended frequency range
    1.5-25 kHz
    Sensitivity, 2.83V/1m (average SPL in range 1 - 20 kHz) 91 dB
    Power handling, continuous, IEC 268-5, 2.0 kHz @ 12dB/oct. 60 W
    Effective radiating area, Sd 11.5 cm2
    Resonance frequency, Fs 450 kHz
    Moving mass, incl. air (free air, no baffle) 0.42 g
    Force factor, Bxl 2.0 -
    Suspension compliance, Cms 0.30 mm/N
    Equivalent air volume, Vas 0.056 ml
    Mechanical Q, Qm 1.2 -
    Electrical Q, Qe .1.01 -
    Total Q, Qt 0.55 -
    Voice coil resistance, RDC 3.4 Ohm
    Voice coil inductance 20 uH
    Voice coil diameter 30.4 mm
    Voice coil height 1.7 mm
    Air gap height 2.5 mm
    Magnet weight 260 g
    Total unit net weight 0.59 kg
    Krm (Note 1) 152 mOhm
    Erm (Note 1) 0.82 -
    Kxm (Note 1) 2.8 mH
    Exm (Note 1) 0.56 -
    Note 1. It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here. Specifications are before burn-in



    Driver Nominal Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



    Terminal Nominal Dimensions

    Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
    Thickness, both terminals: 0.5 mm
    Terminal plating: Gold
