Description
TW030WA02 is identical to TW030WA01 with the exception that TW030WA02 features ferro fluid in the air gap. TW030WA02 is a high performance 30mm soft dome tweeter that works equally well for most demanding high frequency audio applications. The low resonance frequency and high power handling makes TW030WA02 the ideal tweeter for 2-way speakers, where standard tweeters will not do. The usage of dual neodymium magnets as power house ensures an almost perfect magnetic screening for demanding A/V applications. The low distortion and the smooth and extended frequency response combine extreme details and dynamics into making TW030WA02 the pearl of any high-end 2-channel system. Small size and high efficiency make TW030WA02 well suited for high quality multimedia applications. There is a version of TW030WA02 without face plate available for manufacturers, for building the unit directly into the cabinet baffle. The part number of this version is TW030WA04 and the electrical / acoustical specifications are identical to that of TW030WA02. Please contact us for more information.
Features
- Precision-coated textile diaphragm for improved consistency and high-frequency extension
- Vented voice coil former for reduced distortion and compression
- Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
- Build-in cavities under dome/edge to equalize pressure for lower distortion and lower resonance frequency
- Rear heat sink for increased power handling and reduced power compression
- Dual neodymium magnets for improved efficiency and improved magnetic shielding for A/V applications
- High-stability ferro fluid for increased heat transfer from the voice coil
- Flexible lead wires for higher power handling and larger excursion
- Black anodized magnet structure for increased power handling and reduced power compression
- Gold plated terminals to prevent oxidation for long-term reliable connection
- Delivered with EVA gasket attached for hassle-free mounting and secure cabinet sealing
Frequency SPL and Impedance Response Graphs

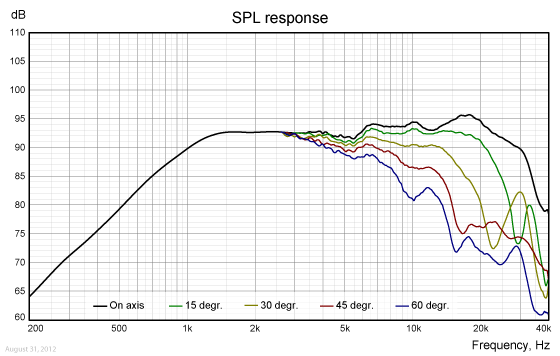

![Loudspeaker Frequency Response Graph](../mm5/graphics/wavecor/tw030wa02/TW030WA02-freq.-response.png)
Loudspeaker Frequency Response Graph
Measuring conditions, SPL
Driver mounting: Flush in infinite baffle
Microphone distance: 1.0 m
Input level: 2.83 VRMS
Smoothing: 1/6 oct.

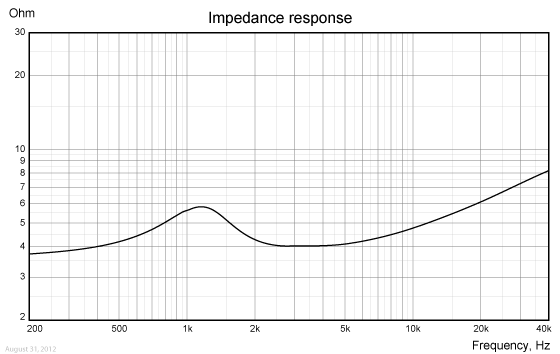

![Loudspeaker Impedance Response Graph](../mm5/graphics/wavecor/tw030wa02/TW030WA02-impedance.png)
Loudspeaker Impedance Response Graph
Measuring conditions, impedance
Driver mounting: Free air, no baffle
Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA
Smoothing: None
Technical Specifications
Parameter | Value | Unit |
Nominal size | 30 | mm |
Nominal impedance | 4 | Ohm |
Recommended frequency range |
2-25 | kHz |
Sensitivity, 2.83V/1m (average SPL in range 2 - 20 kHz) | 94 | dB |
Power handling, continuous, IEC 268-5, 2.5 kHz @ 12dB/oct. | 45 | W |
Effective radiating area, Sd | 11.5 | cm2 |
Resonance frequency (free air, no baffle), Fs | 1.100 | kHz |
Moving mass, incl. air (free air, no baffle), Mms | 0.45 | g |
Force factor, Bxl | 2.5 | Tm |
Suspension compliance, Cms | 0.47 | mm/N |
Equivalent air volume, Vas | 0.0087 | lit |
Mechanical Q, Qm | 1.2 | - |
Electrical Q, Qe | 1.69 | - |
Total Q, Qt | 0.70 | - |
Voice coil resistance, RDC | 3.4 | Ohm |
Voice coil inductance, Le (measured at 20 kHz) | 28 | uH |
Voice coil inside diameter | 30 | mm |
Voice coil winding height | 1.7 | mm |
Air gap height | 3.0 | mm |
Total unit net weight | 0.13 | kg |
Magnet weight (dual neo) | 25.5 | g |
Driver Nominal Dimensions

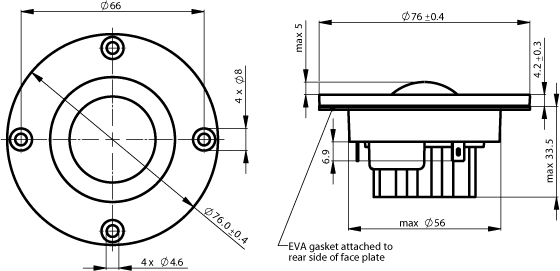

![Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)](../mm5/graphics/wavecor/tw030wa02/TW030WA01-outline-drawing6.gif)
Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
Terminal Nominal Dimensions

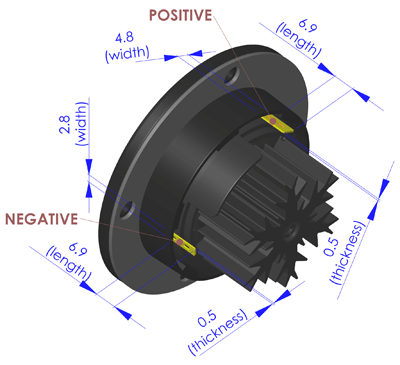

![Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)](../mm5/graphics/wavecor/tw030wa02/Connections.png)
Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
Thickness, both terminals: 0.5 mm
Terminal plating: Gold
