Wavcor Speaker Driver WF168WA02 - 8 Ohm 6in. Paper Cone Mid-Woofer

Thumbnail Filmstrip of Wavcor Speaker Driver WF168WA02 - 8 Ohm 6in. Paper Cone Mid-Woofer Images

    Purchase Wavcor Speaker Driver WF168WA02 - 8 Ohm 6in. Paper Cone Mid-Woofer

    SKU: Wavecor-Mid-Woofer-WF168WA02 Wavcor Speaker Driver WF168WA02 - 8 Ohm 6in. Paper Cone Mid-Woofer

    $75.00 each
    Brand: Wavecor
    Quantity in Basket:  None



    5 available.




    Wavecor Speaker Driver - WF168WA02 - 8 Ohm 6" Paper Cone Mid-Woofer

    Description
    Nominal impedance is 4 ohm for WF168WA01 and 8 ohm for WF168WA02. Otherwise the two models are identical.

    WF168WA01/02 are mid/woofers designed for demanding bass and midrange applications. It works equally well for high-end hi-fi, high quality home theater systems, and monitoring setups.

    Powered by a large 90 mm magnet structure that ensures good efficiency and optimal T/S parameters. The large 32 mm voice coil ensures high power handling - thermally and mechanically

    The optimized paper cone ensures large bandwidth and low distortion. Distortion is further reduced by efficient venting and an alu shorting ring stabilizing the magnetic field in the air gap. WF168WA01/02 are very good choices for medium sized 2- way speaker systems



    Features

    • Alu field-stabilizing ring inside magnet assembly for reduced high-level distortion
    • Vented voice coil former for reduced distortion and compression
    • New vented chassis for lower air flow speed reducing audible distortion
    • Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
    • Large motor system with 1¼” voice coil diameter and 90 mm magnet for better control, power handling, and efficiency
    • Black magnet parts for better heat transfer to increase power handling
    • Linear suspension with specially designed
    • Conex damper (spider) for long durability under extreme operating conditions
    • Gold plated terminals to prevent oxidation, for long-term reliable connection

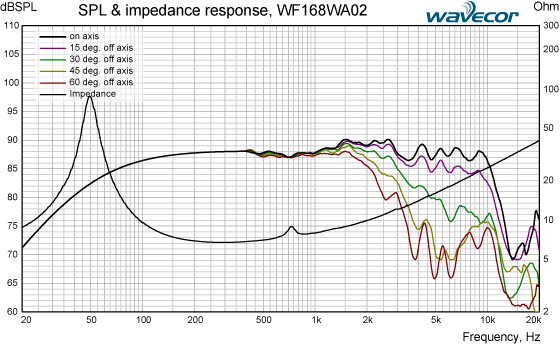

    Frequency SPL and Impedance Response Graphs


    Loudspeaker Frequency Response Graph
    Measuring conditions, SPL
    Driver mounting: Flush in infinite baffle
    Microphone distance: 1.0 m
    Input level: 2.83 VRMS
    Smoothing: 1/6 oct.

    Loudspeaker Impedance Response Graph
    Measuring conditions, impedance
    Driver mounting: Free air, no baffle
    Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA
    Smoothing: None



    Technical Specifications

    Notes Parameter   Value Unit
        Before Burn-in After Burn-in
      Nominal size 6 ½ inch
      Nominal impedance 8 Ohm
      Recommended max upper frequency limit
    3 kHz
    1, 3 Sensitivity, 2.83V/1m (average SPL in range 200-1000 kHz) 89 dB
    2 Power handling, short term, IEC 268-5, 6 kHz, no additional filtering   W
    2 Power handling, long term, IEC 268-5, 6 kHz, no additional filtering   W
    2 Power handling, continuous, IEC 268-5, 6 kHz, no additional filtering 60 W
      Effective radiating area, Sd 139 cm2
    3, 6 Resonance frequency (free air, no baffle), Fs 49   Hz
      Moving mass, incl. air (free air, no baffle), Mms 11.8 g
    3 Force factor, Bxl 6.4 -
    3, 6 Suspension compliance, Cms 0.90   mm/N
    3, 6 Equivalent air volume, Vas 24.6   lit
    3, 6 Mechanical Q, Qms 7.1   -
    3, 6 Electrical Q, Qes 0.56   -
    3, 6 Total Q, Qts 0.52   -
    4 Voice coil resistance, RDC 6.3 Ohm
    5 Voice coil inductance, Le (measured at 10 kHz) 0.39 mH
      Voice coil inside diameter 32 mm
      Voice coil winding height 11 mm
      Air gap height 5 mm
      Magnet weight 400 g
      Total unit net weight excl. packaging 1.03 kg
    3, 5 Krm 0.26 mOhm
    3, 5 Erm 0.69 -
    3, 5 Kxm 8.1 mH
    3, 5 Exm 0.69 -
    Note 1 Measured in infinite baffle.
    Note 2 Tested in free air (no cabinet).
    Note 3 Measured using a semi-constant current source, nominal level 2 mA.
    Note 4 Measured at 20 deg. C
    Note 5 It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.
    Note 6 After burn-in specifications are measured 12 hours after exiting the transducer by a 20 Hz sine wave for 2 hours at level 10/14.1 VRMS (4/8 ohm version). The unit is not burned in before shipping.



    Driver Nominal Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

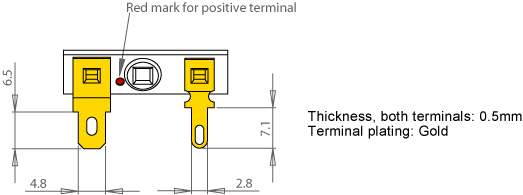

    Terminal Nominal Dimensions

    Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Terminal Dimensions and Measurements - all dimensions in mm (approx.)
    Thickness, both terminals: 0.5 mm
    Terminal plating: Gold
