Visaton Speaker Driver - W 130 S - 4 Ohm HiFi Low-Midrange Driver
Art. No. 9022
Visaton W130S - 4 Ohm HiFi Low-Midrange Driver
Characteristics and Sound Properties
13 cm (5") HiFi low-midrange driver with coated paper cone, elastic rubber surround and 25 mm voice-coil. Suitable as woofer and due to the very balanced frequency response also as low-midrange driver especially in large 3-way speaker systems.
Technical Specifications
| Rated power | 50 W |
| Maximum power | 80 W |
| Nominal impedance Z | 4 Ohm |
| Frequency response (fu: Lower cut-off frequency depending on cabinet) |
fu-12000 Hz |
| Mean sound pressure level | 87 dB (1W/1m) |
| Opening angle (-6 dB) | 113°/4000 Hz |
| Excursion limit | ± 8 mm |
| Resonance frequency fs | 50 Hz |
| Magnetic induction | 0.9 T |
| Magnetic flux | 283 uWb |
| Height of front pole-plate | 4 mm |
| Voice coil diameter | 25 mm |
| Height of winding | 8.5 mm |
| Cutout diameter | 109 mm |
| Net weight | 0.63 kg |
| DC resistance Rdc | 3.5 Ohm |
| Mechanical Q factor Qms | 2.54 |
| Electrical Q factor Qes | 0.55 |
| Total Q factor Qts | 0.45 |
| Equivalent volume Vas | 14 litres |
| Effective piston area Sd | 74 cm2 |
| Dynamically moved mass Mms | 5.4 grams |
| Force factor Bxl | 3.6 Tm |
| Inductance of the voice coil L | 0.6 mH |
Recommended Cabinet Sizes
| Volume / Principle | BR Port | fb | fc / QTC |
| 7 litre / closed | - | - | 92 Hz / 0.8 |
| 20 litre / bass reflex | BR 6.8 (length 4 cm) | 44 Hz | - |
| 30 litre / bass reflex | BR 19.24 (length 12 cm) | 39 Hz | - |
fc = System resonance (sealed box system)
QTC = The system's Q at resonance (fc)
Driver Dimensions
Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
Frequency and Impedance Response

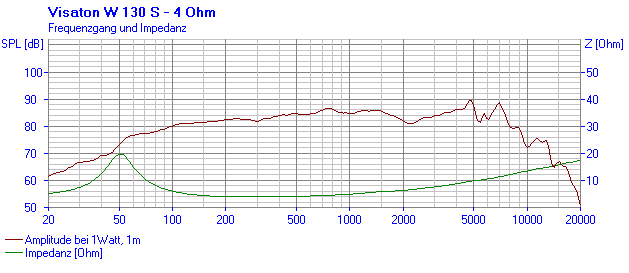

Loudspeaker Frequency and Impedance Response Graph
Directivity Pattern
Loudspeaker Directivity Pattern (on and off axis response)
