SKU: V-8003-SC59OM SC 5.9 OM - 8 Ohm

Visaton Speaker Driver - SC 5.9 OM - 8 Ohm Fullrange Speaker
Art. No. 8003

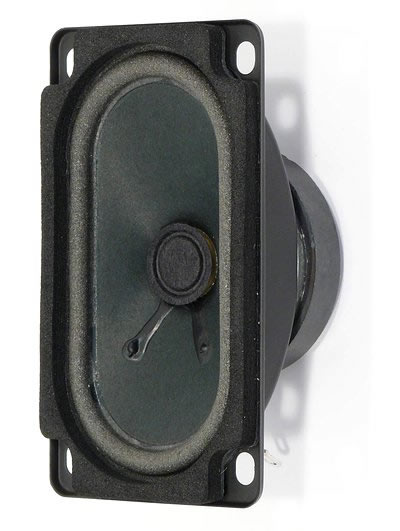

Visaton SC 5.9 OM - 8 Ohm Fullrange Speaker

Characteristics and Sound Properties
5 x 9 cm (2" x 3.5") fullrange driver with a powerful magnetic drive, good efficiency and a very balanced frequency response. Due to the very good highrange reproduction and the small size any non-spacious application in the field of multimedia and Dolby Surround are possible. The SC 5.9 OM - 8 Ohm can furthermore be used as replacement part for internal flat TV speakers.

Typical applications:-
- Multimedia systems
- Flat TVs
- Control speaker for electronic devices Attributes
- Moisturised cone
- Metal basket

Technical Specifications

Rated power	10 W
Maximum power	15 W
Nominal impedance Z	8 Ohm
Frequency response	90–20000 Hz
Mean sound pressure level	84 dB (1 W/1 m)
Resonance frequency fs	170 Hz
Height of front pole-plate	3 mm
Voice coil diameter	14 mm
Height of winding	4 mm
Cutout diameter	43 x 82 mm
Net weight	0.13 kg
Connections	4.8 x 0.8 mm (+) 2.8 x 0.8 mm (−)
Temperature range	−25 ... 70 °C

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

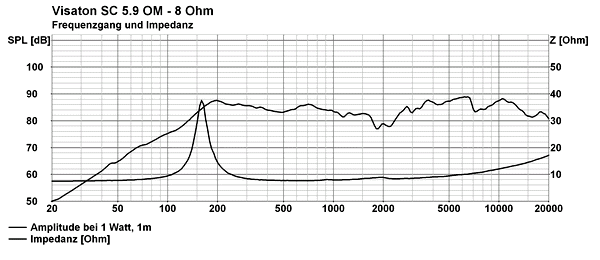

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

Directivity Pattern
