Visaton Speaker Kit - Aria 2 MHT Center
Art. No. 5947
Visaton Aria 2 MHT Center - shown assembled with suggested cabinets, not supplied.
Characteristics and Sound Properties
The ARIA 2 MHT CENTER is equipped with the popular combination of drivers consisting of the TI 100 - 8 Ohm and the MHT 12 - 8 Ohm. As a result of this choice of drivers and the linear frequency response, it is ideally suited as a complementary centre speaker in conjunction with the VOX 253 MTI or TOPAS, for example, to produce a high-end home theatre system. As already seen in the ARIA 2, the magnetostat is positioned in the middle of the slim-line baffle and is flanked by the two titanium mid-bass units.
In contrast to centre speakers featuring a genuine D'Appolito arrangement, the ARIA 2 MHT CENTER is well suited to horizontal positioning e.g. above or below the television set, because it does not have anything like the same beaming effect. The sophisticated 2.5-band crossover circuitry is responsible for this feature.
The crossover separates one of the two mid-bass units at 1800 Hz while the second is not separated until 4500 Hz is reached, to leave the higher frequencies to the magnetostat.
This deliberate individual treatment of the two TI 100 - 8 Ohm prevents noticeable directivity which, in a vertically placed D'Appolito arrangement, would be intentional but in a horizontally placed centre speaker must be avoided at all costs to ensure that all the seating positions in the home theatre are treated to the same volume levels.
Technical Specifications
Rated power | 80 W |
Maximum power | 120 W |
Nominal impedance Z | 4 Ohm |
Frequency response | 58-40000 Hz |
Mean sound pressure level | 86 dB (1W/1m) |
Cut-off frequency | 1800 / 4500 Hz |
Principle of Housing | Bassreflex |
Net volume | 8 litres |
Outer dimension height | 160 mm |
Outer dimension width | 396 mm |
Outer dimension depth | 210 mm |
Frequency and Impedance Response

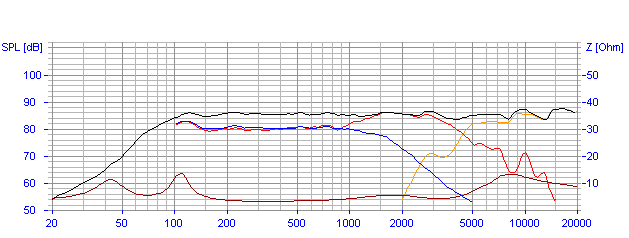

Frequency Response and Impedance Graph
Exploded Cabinet Drawing
Exploded Speaker Box Drawing
Assembly
All the cabinet panels are cut from 16 mm chipboard or medium density fibreboard, butt-jointed and glued. After that, the openings for the driver and terminals are cut out and any necessary recesses cut. The chamfer on the outer baffle can be made either before the cabinet is glued together or afterwards.
Since the cabinets are relatively small, it is hardly possible to mount the crossover inside the housing. The PCB can, however, simply be wrapped in damping material and placed inside the speaker if the rear wall is not removable.
Internal Damping
The damping material is loosely pushed into the cabinet. The space immediately behind the bass reflex tube must remain free.
Component Parts List for Each Box - Supplied with Kit
The kit comes with all necessary components (see list below for one box), one set if the speaker is an each, or two sets for a pair, see price above for details.
Tweeter | MHT 12 - 8 Ohm | 1 pc. |
Woofer | TI 100 - 8 Ohm | 2 pcs. |
Crossover | Aria 2 MHT Center | 1 pc. |
Bass reflex tube | BR 6.8 (full length) | 2 pcs. |
Terminal | ST 77 | 1 pc. |
Damping material | Polyester wool | 0.5 bags |
Wood screws | 3.5 x 19 mm | 12 pcs. |
Countersunk screws | 3.5 x 25 mm | 4 pcs. |
Cable | 2 x 1.5 mm² | 1 m |
Speaker Cabinet Material List to Make 1 Box - Not Supplied with Kit
Parts for One Box (not supplied) | Size (mm) | Quantity |
Material: 16 mm chipboard or MDF recommended | ||
Front and rear panel | 160 x 396 | 2 |
Top and bottom panel | 178 x 396 | 2 |
Side panels | 178 x 128 | 2 |
Speaker Cabinet Dimensions

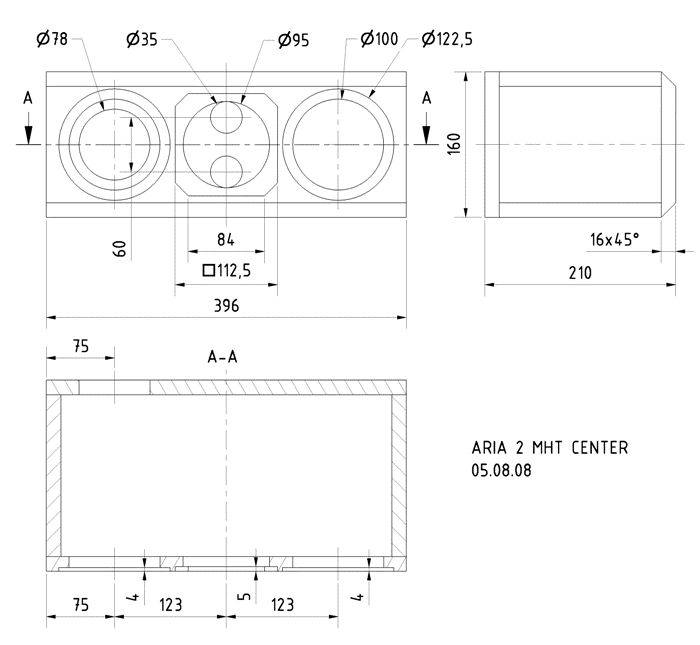

Loudspeaker Box Construction Diagram - all dimensions in mm.
Crossover - Supplied with Kit Already Assembled

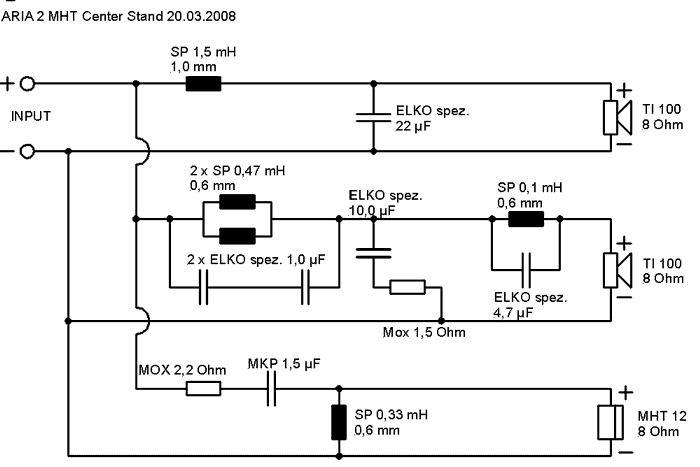

Speaker Kit Crossover Circuit
