SKU: V-50471-UL7N UL 7 N - 100 V

Visaton Speaker Driver - UL 7 N - 100V Cabinet Housed Speaker for Lighting Systems
Art. No. 50471

Visaton UL7N - 100V Cabinet Housed Speaker for Lighting Systems

Characteristics and Sound Properties
Cabinet-housed speaker for use in lighting systems. Stainless steel cabinet (V2A). Equipped with two 7 cm fullrange speakers and an 100 V transformer.

Typical applications:-
- Lighting systems

Attributes:-
- Moisturised cone
- UV-resistant
- 100 V transformer

Technical Specifications

Tranformer Matching	10; 5; 2.5; 1.5; 0.8 W
Nominal impedance Z	1.0; 2.0; 4.0; 6.6; 12.5 kOhm
Frequency response	300–20000 Hz
Sound pressure level	93 dB (1 W/1 m) @ 531 Hz
Mean sound pressure level	90 dB (1W/1m)
Max. sound pressure level	100 dB (10 W/1 m)
Opening angle (-6 dB)	94°/4000 Hz hor. 47°/4000 Hz vert.
Net weight	1.45 kg
Length of cable	0.4 m
Protective system	IP X4
Temperature Range	-25... 70 °C

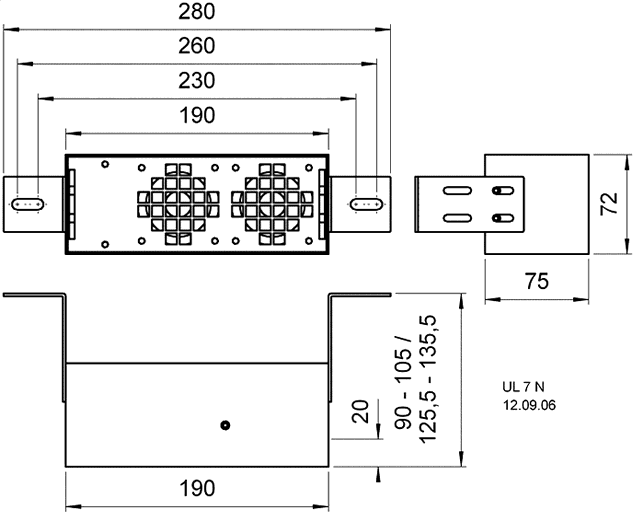

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

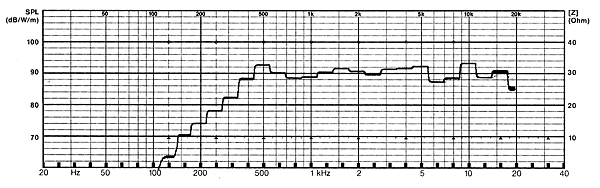

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

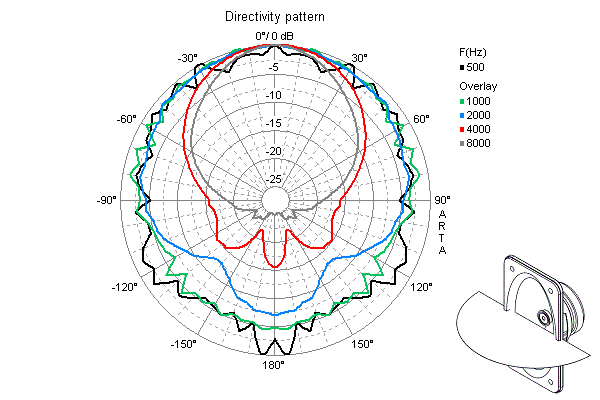

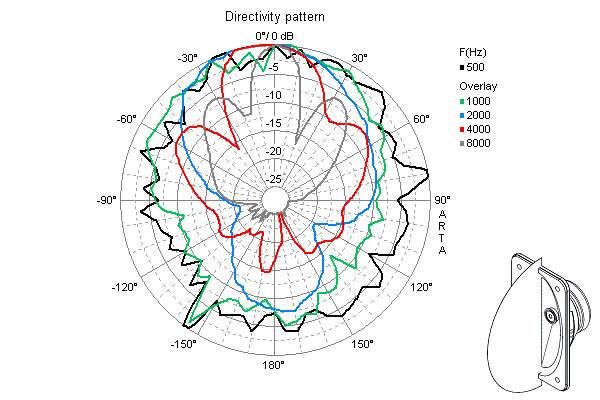

Directivity Pattern
