Visaton Speaker Driver - W 13 PR P - 100 V Wall Mounted Speaker
Art. No. 50324

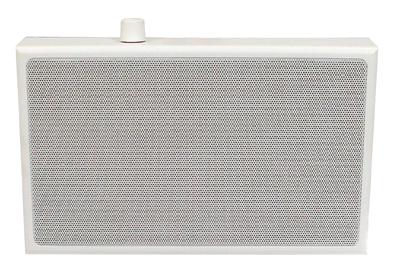

Visaton W13PRP - 100V Wall Mounted Speaker
Characteristics and Sound Properties
Wall-mounted speaker with a volume control-knob and priority relay, white plastic cabinet and metal grille. Fitted with a full range driver. Good music reproduction and clear speech reproduction properties. Connection to 100 volt network and level trimming by means of spring terminal. Also available:
- WL 13 P - 100 V (without volume control) - WL 13 PR - 100 V (with volume control, without priority relay).
Typical applications:-
- Wall-mounted speakers in 100 volt networks in public areas, schools, hotels, surgeries etc. for announcements and backgrounds
Attributes:-
- 100 V transformer
- Plastic: ABS V0 (UL 94: V-0)
- Level control
- Priority relay (breaking voltage 24 V)
Technical Specifications
| Transformer matching | 6; 3; 1.5 W |
| Sound pressure level | 94 dB (1 W/1 m) @ 5312 Hz |
| Frequency response | 90–16000 Hz |
| Mean sound pressure level | 88 dB (1 W/1 m) |
| Max. sound pressure level | 96 dB (6W/1m) |
| Opening angle (-6 dB) | 74°/4000 Hz hor. 67°/4000 Hz vert. |
| Net weight | 1.15 kg |
| Temperature range | 0 ... 70 °C |

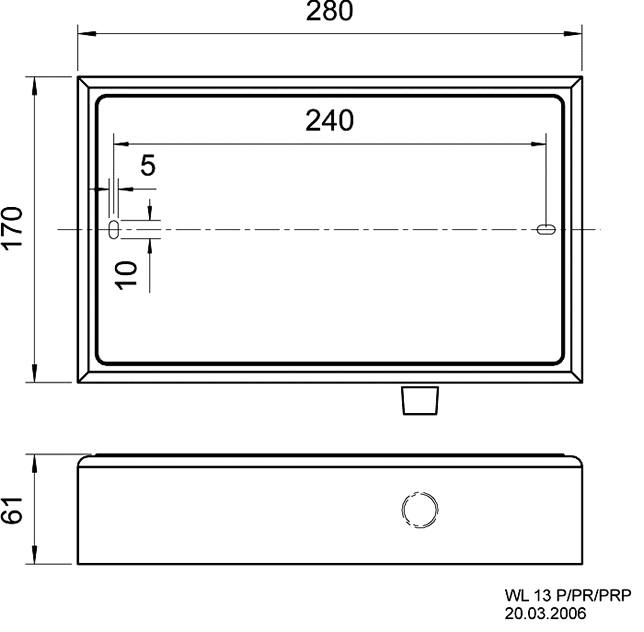

Driver Dimensions
Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

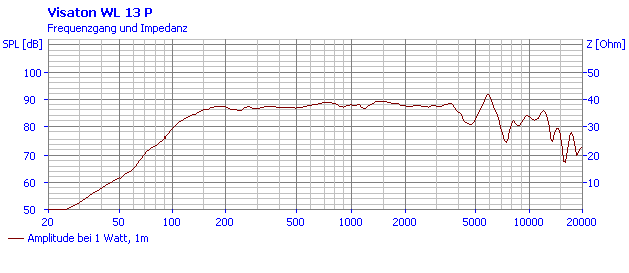

Frequency and Impedance Response
Loudspeaker Frequency and Impedance Response Graph

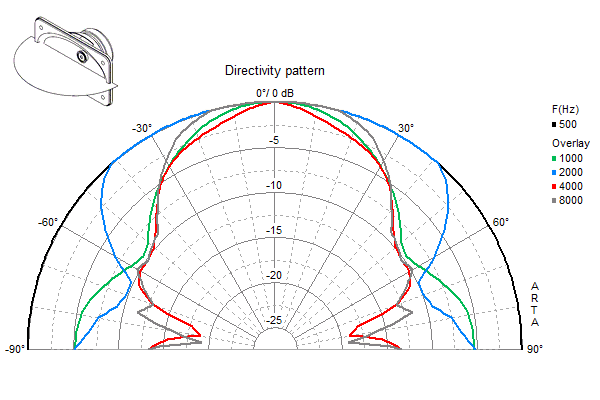

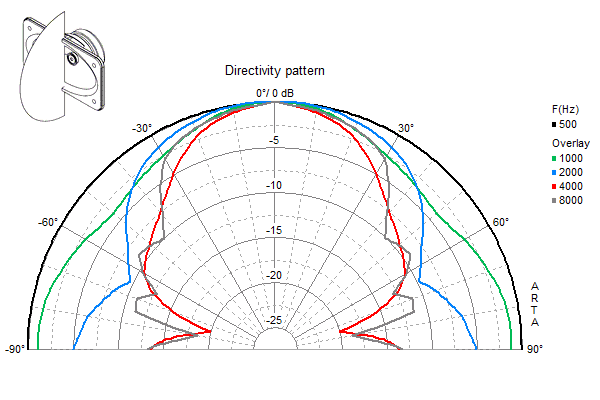

Directivity Pattern
Loudspeaker Directivity Pattern (on and off axis response)
