Visaton Speaker Driver - WL 13 P - 100V Wall Mounted Speaker
Art. No. 50321
Visaton WL13P - 100V Wall Mounted Speaker.
Characteristics and Sound Properties
Wall-mounted speaker with a volume control-knob, white plastic cabinet and metal grille. Fitted with a full range driver. Good music reproduction and clear speech reproduction properties. Connection to 100 volt network and level trimming by means of spring terminal.
Also available: - WL 13 PR - 100 V (with volume control)
Typical applications:
- Wall-mounted speakers in 100 volt networks in public areas, schools, hotels, surgeries etc. for announcements and backgrounds
Attributes:
- 100 V transformer
- Plastic: ABS V0 (UL 94: V-0)
Technical Specifications
| Transformer matching | 6; 3; 1.5 W |
| Sound pressure level | 94 dB (1 W/1 m) @ 5312 Hz |
| Sensitivity | 90 dB (1 W/1 m; 700-7000 Hz) |
| Frequency response | 90-16000 Hz |
| Mean sound pressure level | 88 dB (1 W/1 m) |
| Max. sound pressure level | 96 dB (6 W/1m) |
| Opening angle (-6 dB) | 74°/4000 Hz hor. 67°/4000 Hz vert. |
| Net weight | 1.15 kg |
| Temperature range | 0 ... +70 °C |

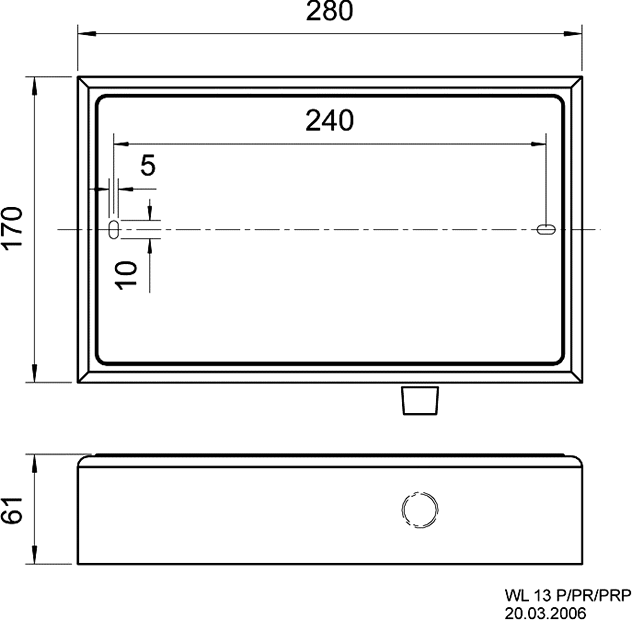

Driver Dimensions
Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
Frequency and Impedance Response
Loudspeaker Frequency and Impedance Response Graph

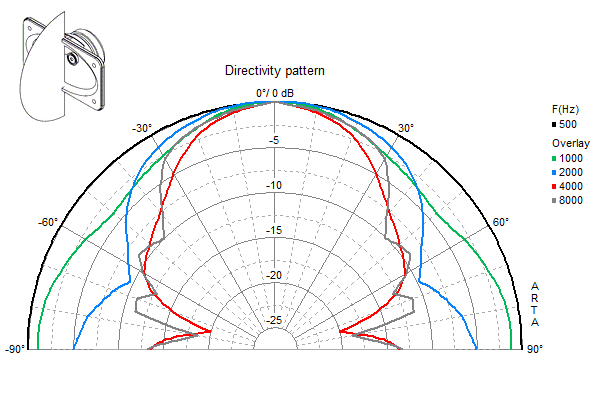

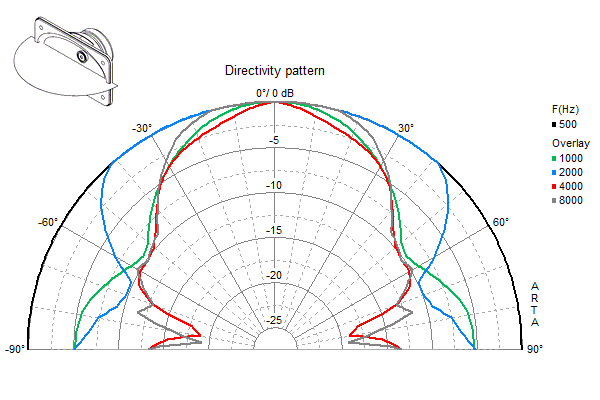

Directivity Pattern
Loudspeaker Directivity Pattern (on and off axis response)
