SKU: V-50316-WB16 WB 16 - 100V - 8 Ohm White

Visaton Speaker Driver - WB 16 - 100 V / 8 Ohm 2-Way Compact Speaker White
Art. No. 50316

Characteristics and Sound Properties

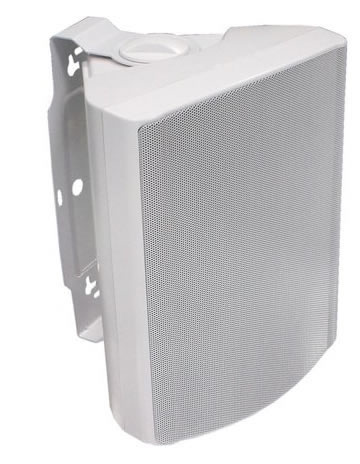

2-way compact speakers in a sturdy plastic housing (white), fitted with one 16 cm woofer and one tweeter providing broad frequency response.

Well suited for music and voices. Universally applicable to professional PA or in the home. Can be run as a 100 V system or as 8 ohm units due to an integrated transformer. 100 V transformer and 8 ohm mode are selected using a knob.
Swivelling fixing bracket allows the speakers to be mounted horizontally or vertically, as required, and the housing is equipped with a threaded hole for attaching to a bracket or swivelling arm.

Typical applications:-
- Conference facilities
- Multimedia
- Outdoor use

Attributes:-
- UV-resistant
- 100 V transformer
- Weather-proof plastic cabinet
- Plastic: ABS (UL 94:HB)

Technical Specifications

Rated power	60 W
Maximum power	90 W
Transformer matching	25; 15; 7.5; 4; 2 W / 8 Ohm
Sound pressure level	92 dB (1 W/1 m) @ 16223 Hz
Frequency response	80-20000 Hz
Mean sound pressure level	89 dB (1 W/1 m)
Max. sound pressure level	103 dB (25 W/1 m)
Opening angle (-6dB)	52°/4000 Hz 97°/4000 Hz
Net weight	2.8 kg
Protective System	IP 54
Temperature range	−25 ... 70 °C
Colour	White

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

Directivity Pattern
