SKU: V-50315-WB13 WB 13 - 100V - 8 Ohm Silver

Visaton Speaker Driver - WB 13 - 100V / 8 Ohm 2-Way Compact Speaker Silver
Art. No. 50313

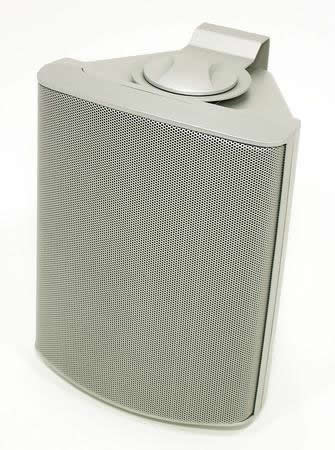

Visaton WB13 - 100V / 8 Ohm 2-Way Compact Speaker Silver.

Characteristics and Sound Properties
2-way compact speakers in a sturdy plastic housing (silver), fitted with one 13 cm woofer and one tweeter providing broad frequency response. Well suited for music and voices. Universally applicable to professional PA or in the home.

Can be run as a 100 V system or as 8 ohm units due to an integrated transformer. 100 V transformer and 8 ohm mode are selected using a knob. Swivelling fixing bracket allows the speakers to be mounted horizontally or vertically, as required, and the housing is equipped with a threaded hole for attaching to a bracket or swivelling arm.

Typical applications:-
- Conference facilities
- Multimedia
- Outdoor use

Attributes:-
- UV-resistant
- 100 V transformer
- Weather-proof plastic cabinet
- Plastic: ABS (UL 94:HB)

Technical Specifications

Rated power	50 W
Maximum power	80 W
Transformer matching	25; 15; 7.5; 4; 2 W / 8 Ohm
Sound pressure level	91 dB (1 W/1 m) @ 6108 Hz
Frequency response	95–20000 Hz
Mean sound pressure level	88 dB (1 W/1 m)
Max sound pressure level	102 dB (25 W/1 m)
Opening angle (-6 dB)	89°/4000 Hz hor. 77°/4000 Hz vert.
Net Weight	2.4 kg
Protective system	IP 54
Colour	Silver

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

Directivity Pattern
