SKU: V-50303-WL13NR WL 13 NR - 100V

Visaton Speaker Driver - WL 13 NR - 100 V Wall Mount Speaker
Art. No. 50303

Visaton WL13NR - 100V Wall Mounted Speaker with Volume Control.

Characteristics and Sound Properties

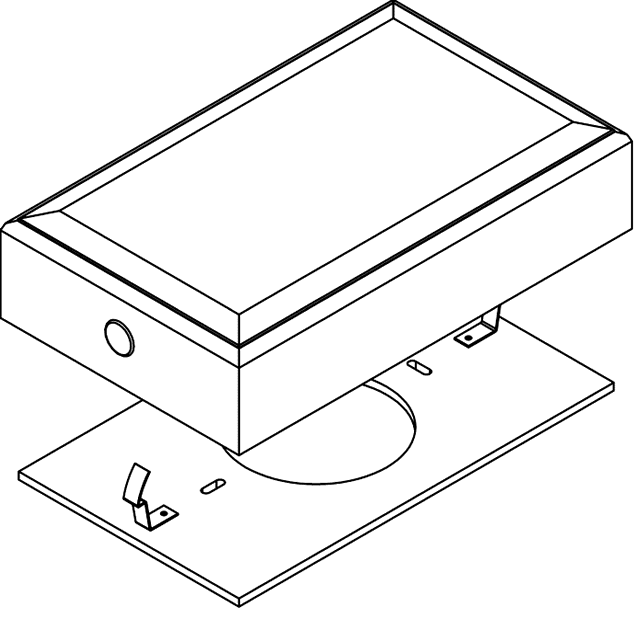

Wall-mounted speaker with a volume control-knob, wooden cabinet and metal grille. Fitted with a high quality full range driver. Removable rear panel for easy fitting to the wall using two screws. Good music reproduction and clear speech reproduction properties. Connection to 100 V network and level trimming by means of spring terminal. Also available: - WL 13 N - 100 V (without volume control) and WL 13 NR P - 100 V (with volume control and priority relay).

Typical applications:
- Wall-mounted speakers in 100 volt networks in public areas, schools, hotels, surgeries etc. for announcements and backgrounds

Attributes:
- 100 V transformer
- Wooden cabinet with rear panel
- Level control

Technical Specifications

Transformer matching	6; 3; 1.5 W
Sound pressure level	96 dB (1 W/1 m) @ 4954 Hz
Frequency response	90–20000 Hz
Mean sound pressure level	88 dB (1 W/1 m)
Mean sound pressure level	96 dB (1 W/1 m)
Opening angle (-6 dB)	79°/4000 Hz hor. 61°/4000 Hz vert.
Net weight	1.4 kg
Temperature range	−25 ... +70 °C
Colour	RAL 9010

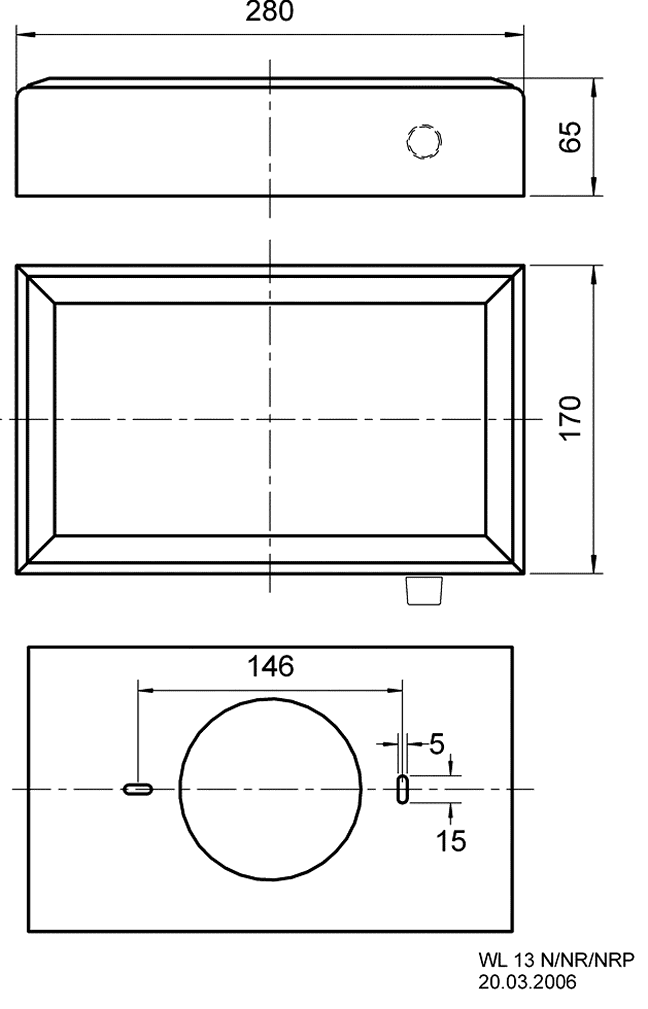

Driver Dimensions

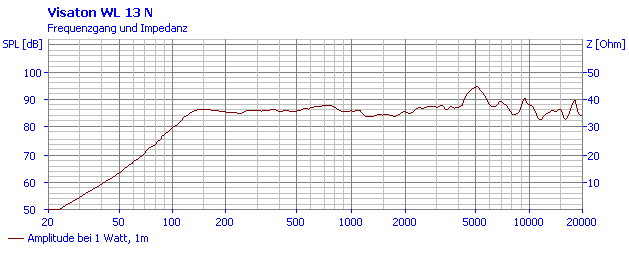

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

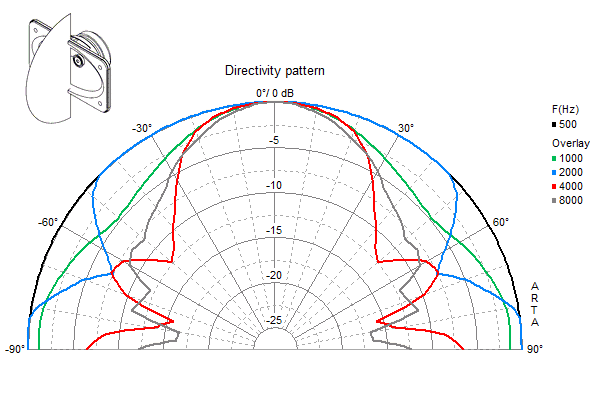

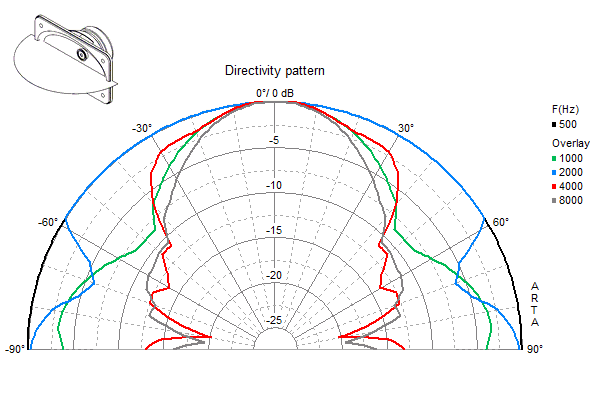

Directivity Pattern
