SKU: V-50241-DK130X DK 130 X - 100 V

Visaton Speaker Driver - DK 130 X - 100 V Re-Entrant Horn Speaker
Art. No. 50241

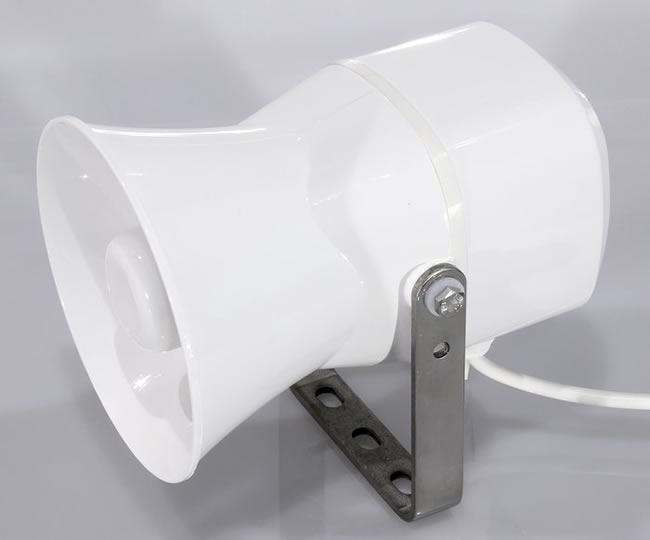

Visaton DK130X - 100V Re-entrant Horn Speaker

Characteristics and Sound Properties

Re-entrant horn speaker with 100V transformer. Compact dimensions an waterproof design. High sound pressure and wide range of frequency response guarantee excellent voice quality. Pivoting metal frame for mounting on walls, ceilings, columns etc.

Typical applications:-

• PA systems in factory halls, railway stations etc.
• Outdoor PA for vehicles
• Use in alarm systems

Technical Specifications

Transformer Matching	6 W
Frequency response	500-7000 Hz
Mean sound pressure level	106 dB (1 W/1 m)
Net Weight	1.7 kg
Length of cable	1.1 m
Protective sytem	IP67
Temperature range	-30 ... 60 °C

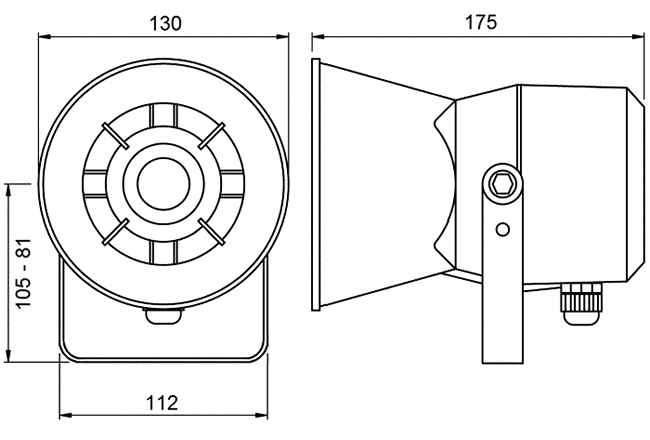

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

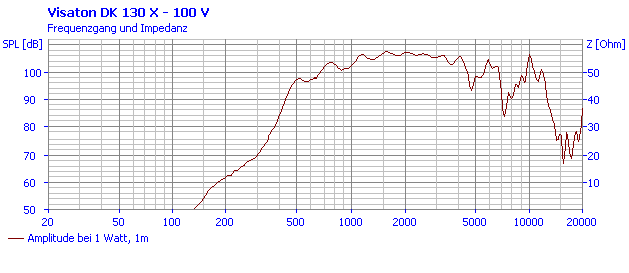

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph
