Home
Speakers
Visaton Drivers - Speakers
Horn
DK 115 S - 8 Ohm

Thumbnail Filmstrip of DK 115 S - 8 Ohm Images

Purchase DK 115 S - 8 Ohm

SKU: V-50211-DK115S DK 115 S - 8 Ohm

Name: DK 115 S - 8 Ohm
Brand: Visaton
SKU: V-50211-DK115S
Price: 88 AUD
Availability: InStock

$88.00 each

Brand: Visaton

Quantity in Basket: None

Qty

Description

Visaton Speaker Driver - DK 115 S - 8 Ohm Re-entrant Horn
Art. No. 50211

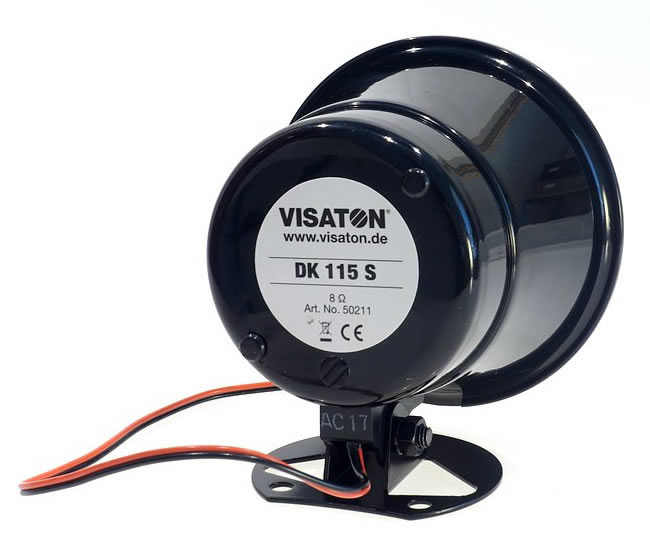

Visaton DK115S - 8 Ohm Re-entrant Horn

Characteristics and Sound Properties

Short-stroke re-entrant horn speakers for mid- to high-range. Water-resistant 8-ohm model made of black high-impact ABS plastic, high IP protection class. High sound pressure and good voice reproduction. specially suitable for concealed installation due to compact design. Pivoting metal base for attaching to ceilings, walls, columns etc. Additional mounting alternatives due to two integrated M4 tapped holes in rear metal base.

Typical Applications:-

Public address in factories, railway stations etc.
Outdoor address systems
Use in alarm/alert systems

Attributes:-

Weather-proof plastic cabinet
UV-resistant
Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature) Plastic: ABS (UL 94: HB)

Technical Specifications

Rated power	15 W
Nominal impedance Z	8Ohm
Frequency response	700–15000 Hz
Mean sound pressure level	101 dB (1W/1m)
Max sound pressure level	112 dB (15 W/1 m)
Net Weight	0.45 kg
Length of cable	0.35 m
Protective system	IP66
Temperature range	−40 ... +70 °C

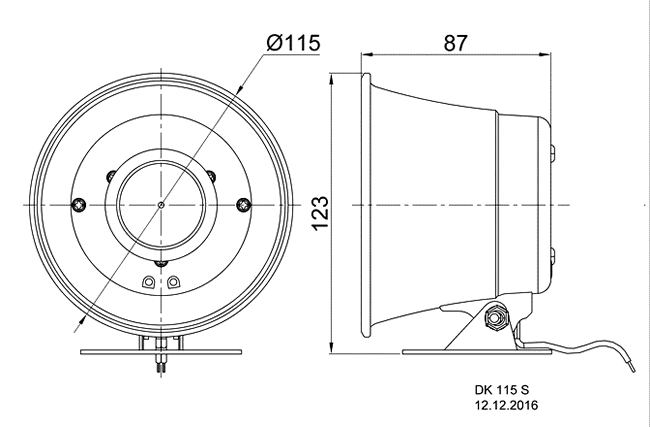

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

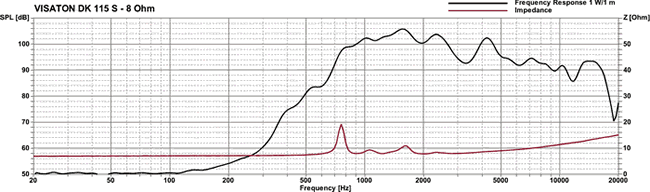

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph
