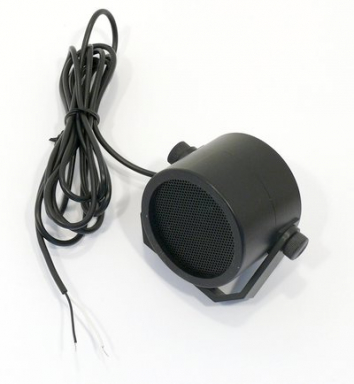

SKU: V-4466-PL5 PL 5 - 8 Ohm'

Visaton Speaker Driver - PL 13 D - 100 V Projection Loudspeaker
Art. No. 50353

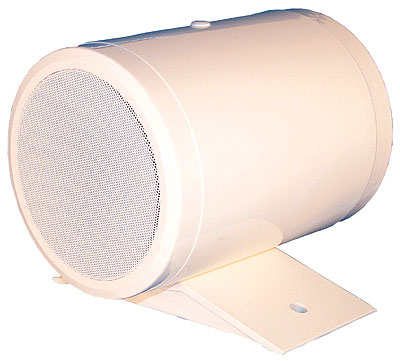

Visaton PL13D - 100V Projection loudspeaker.

Characteristics and Sound Properties
Twin radiating loudspeaker with cylindrical plastic housing (ABS) and sturdy mounting bracket (aluminium). Fitted with two full range loudspeakers and 100 V transformer. Cables can be concealed in the bracket if required. High level of voice quality. Particularly suitable for corridors and other elongated rooms.

Typical applications:
- Public address systems in public buildings, particularly suitable for corridors and other elongated rooms

Attributes:
- Plastic: ABS (UL 94:HB)
- Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
- Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/ low temperature)
- UV-resistant
- 100 V transformer
- Weather-resistant

Technical Specifications

Transformer matching	15; 7.5; 3.75 W
Sound pressure level	99 dB (1 W/1 m) @ 1739 Hz
Frequency response	150–6000 Hz
Mean sound pressure level	92 dB (1 W/1 m)
Max sound pressure level	103 dB (15 W/1 m)
Opening angle (-6 dB)	54°/4000 Hz
Net weight	2.3 kg
Temperature range	-40...80°C
Protective system	IP 65
Length of cable	1 m

Driver Dimensions

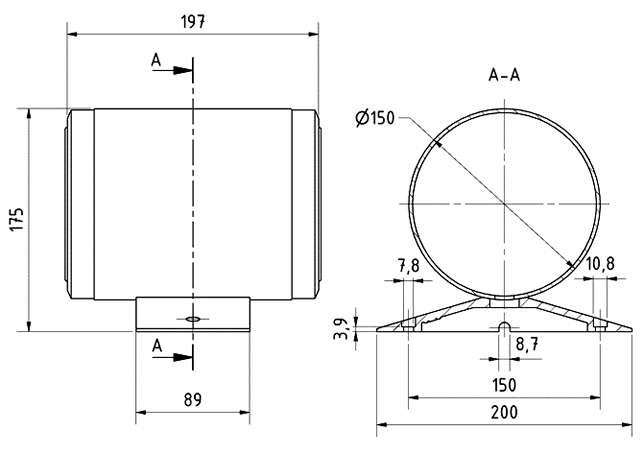

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

Frequency and Impedance Response

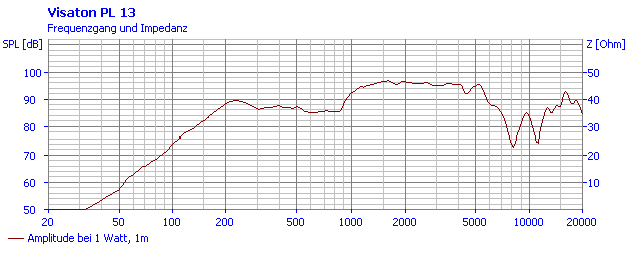

Loudspeaker Frequency and Impedance Response Graph

Directivity Pattern

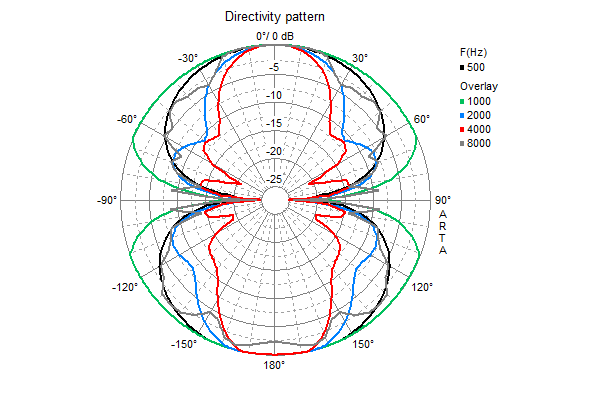

Loudspeaker Directivity Pattern (on and off axis response)
