SKU: V-3580-PB99-Piezo-Buzzer PB 99 - 3V

Visaton Speaker Driver - PB9.9 3V Piezo Buzzer
Art. No. 3580

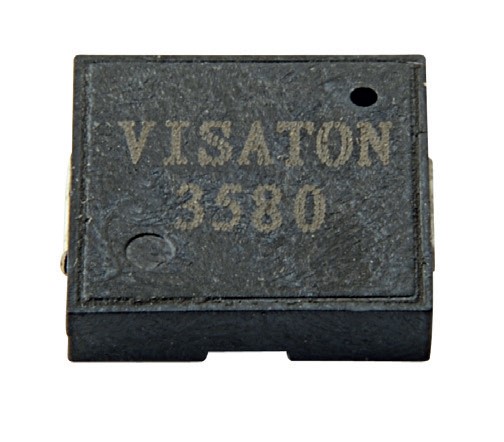

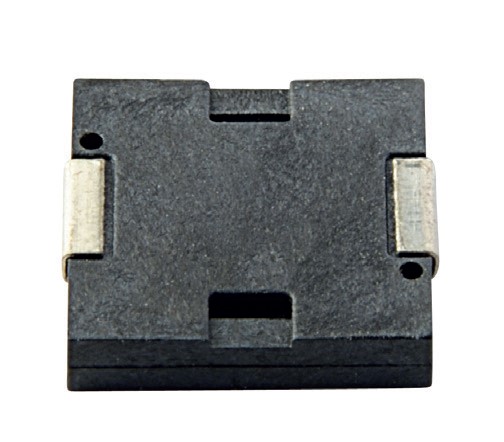

Visaton PB 9.9 - 3V Piezo Buzzer

Characteristics and Sound Properties
9 x 9 mm Piezo Buzzer
Piezo-electric audio signalling buzzer for devices and applications, e.g. for industrial and office technology, medical technology, home and automotive electronics.

Technical Specifications

Resonance frequency fs	4000 Hz
Net weight	0.2g
Sound pressure level	70 dB (0.1 m)
Input voltage	3 Vp-p (1-25 Vp-p; square wave)
Temperature range	−40 ... 85 °C

Driver Dimensions

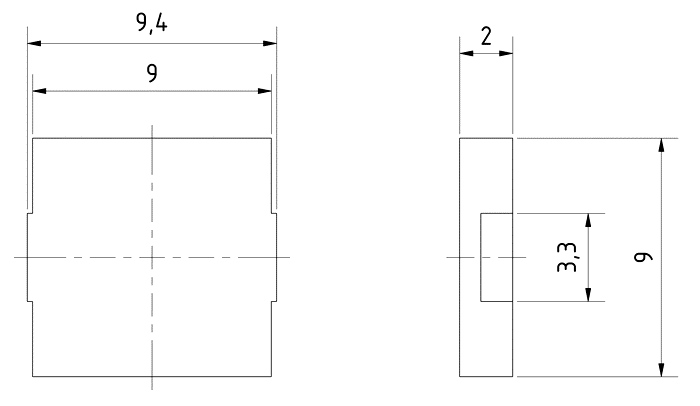

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
