SKU: V-3017-BG17 BG 17 - 8 Ohm

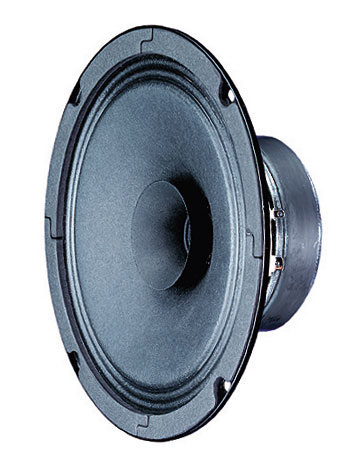

Visaton Speaker Driver - BG 17 - 8 Ohm Full Range
Art. No. 3017

Visaton BG17 - 8 Ohm

Characteristics and Sound Properties
16 cm (6.5") full-range speaker with tweeter cone. High efficiency. Holes for fitting a transformer to magnet or basket (TR 10.16 or TR 6.8) for use in a 100 V network. Suitable as full-range unit for vocal or guitar monitors or as a mid-range unit for full-scale or musicians' PA systems.

- Midrange unit for full scale or musicians' PA systems
- Vocal or guitar monitors
- Fullrange speaker for electronic organs and keyboards

Technical Specifications

Rated power	40 W
Maximum power	60 W
Nominal impedance Z	8 Ohm
Frequency response	80 -20000 Hz
Mean sound pressure level	93 dB (1W/1m)
Dispersion angle (-6 dB)	51°/4000 Hz
Excursion limit	± 2 mm
Resonance frequency fs	120 Hz
Magnetic induction	1.0 T
Magnetic flux	250 µWb
Height of front pole-plate	4 mm
Voice coil diameter	20 mm
Height of winding	7 mm
Cutout diameter	146 mm
Net weight	0.72 kg
DC resistance Rdc	6.3 Ohm
Mechanical Q factor Qms	2.94
Electrical Q factor Qes	0.98
Total Q factor Qts	0.74
Equivalent volume Vas	8.2 litres
Effective piston area Sd	143 cm2
Dynamically moved mass Mms	6.5 grams
Force factor Bxl	5.7 Tm
Connections	5.2 x 0.5mm (+) 2.8 x 0.5mm (-)
Inductance of the voice coil L	0.7 mH
Temperature range	−25 ... 70 °C

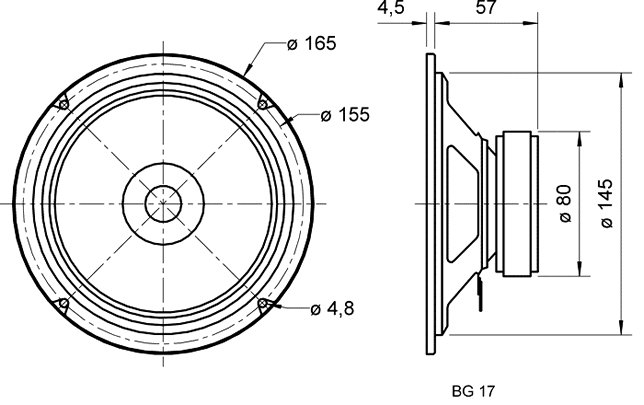

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

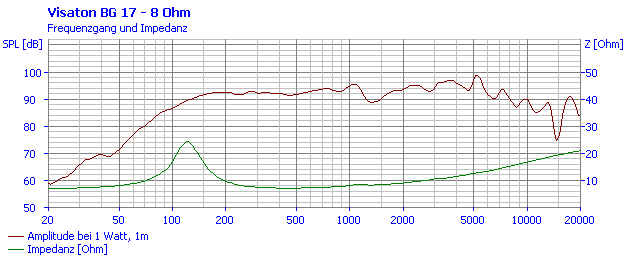

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

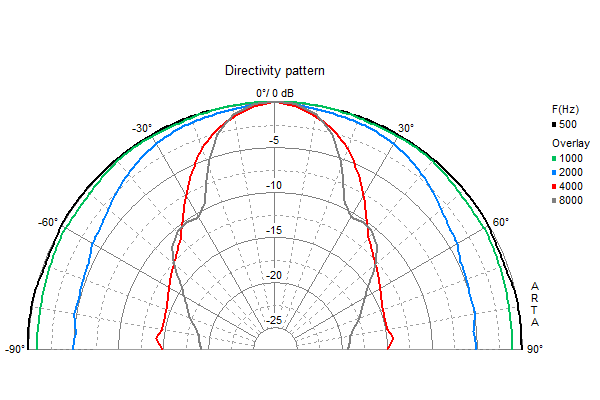

Directivity Pattern

Loudspeaker Directivity Pattern (on and off axis response)
