SKU: V-2949-K50FL K 50 FL - 16 Ohm

Visaton Speaker Driver - K 50 FL - 16 Ohm Miniature Speaker
Art. No. 2949

Visaton K50FL - 16 Ohm Miniature Speaker

Characteristics and Sound Properties
5 cm (2") miniature speaker with plastic diaphragm. Very compact design. Good speech reproduction.

*) IP protection class for front side when built into a sealed enclosure

Typical applications:-
- Signal output in machines and other equipment where space is at a premium
- Well suited to outdoor applications and where ambient conditions are generally unfavourable

Technical Specifications

Rated power	1 W
Maximum power	2 W
Nominal impedance Z	16 Ohm
Frequency response	150–20000 Hz
Mean sound pressure level	80 dB (1 W/1 m)
Resonance frequency fs	340 Hz
Voice coil diameter	13 mm
Height of winding	2 mm
Cutout diameter	46 mm
Net weight	0.014 kg
Protective system	IP 65*)
Temperature range	−40 ... 70 °C

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

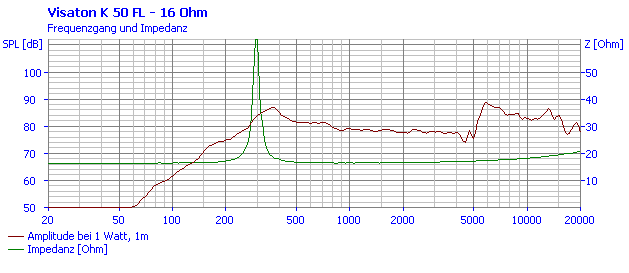

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

Directivity Pattern

Loudspeaker Directivity Pattern (on and off axis response)
