K 28.40 - 8 Ohm

Thumbnail Filmstrip of K 28.40 - 8 Ohm Images

Purchase K 28.40 - 8 Ohm

SKU: V-2945-K2840 K 28.40 - 8 Ohm

Name: K 28.40 - 8 Ohm
Brand: Visaton
SKU: V-2945-K2840
Price: 15 AUD
Availability: InStock

$15.00 each

Brand: Visaton

Quantity in Basket: None

Qty

Description

Visaton Speaker Driver - K 28.40 - 8 Ohm Miniature Loudspeaker
Art. No. 2945

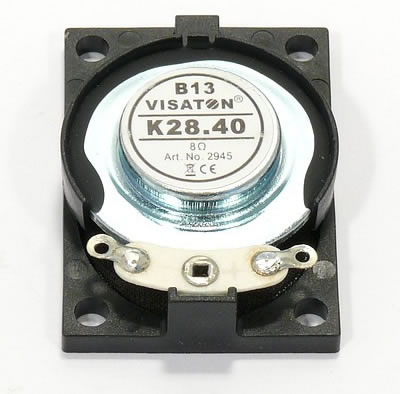

Visaton K28.40 - Ohm Miniature Speaker - rear.

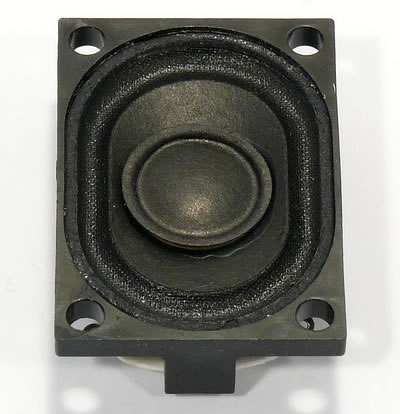

Visaton K28.40 - 8 Ohm Miniature Speaker

Characteristics and Sound Properties
2.8 x 4.0 cm (1.1" x 1.6") miniature speaker with paper cone and rectangular plastic basket. Small dimensions due to neodymium magnet. The excellent interaction between the different components achieves a very linear frequency response. Connection via soldering points on rear side.

Technical Specifications

Rated power	2 W
Maximum power	3 W
Nominal impedance Z	8 Ohm
Frequency response	230-20000 Hz
Mean sound pressure level	79 dB (1W/1m)
Resonance frequency fs	450 Hz
Voice coil diameter	14 mm
Height of winding	3 mm
Cutout diameter	26 x 37 mm
Net weight	0.014 kg

Driver Dimensions

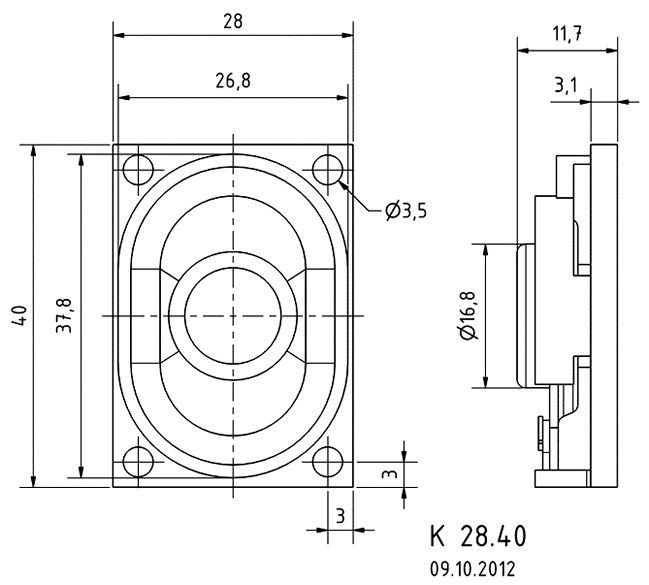

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

Frequency and Impedance Response

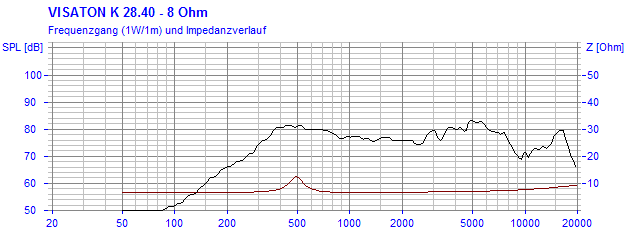

Loudspeaker Frequency and Impedance Response Graph
