SKU: V-2914-K36MO K 36 MO - 8 Ohm

Visaton Speaker Driver - K 36 MO - 8 Ohm Miniature Loudspeaker
Art. No. 2914

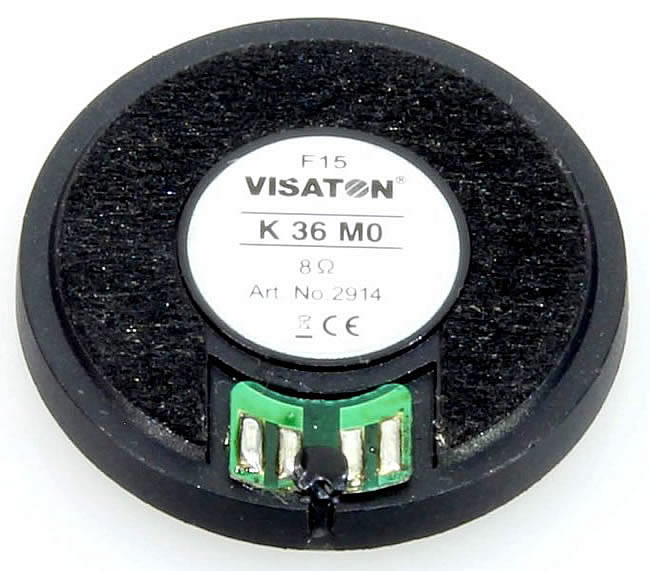

Visaton K36MO - 8 Ohm Miniature Speaker

Characteristics and Sound Properties

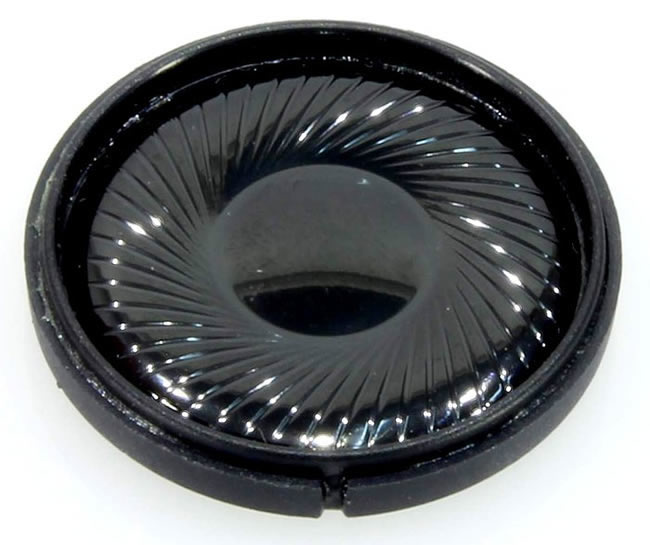

3.6 cm (1.4") miniature speaker with a plastic basket and plastic diaphragm. Balanced frequency response and good voice reproduction. Particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).

Typical applications:-
- Monitoring speaker for electronic devices
- Monitoring speaker for outdoor systems

Attributes:-
- Plastic: ABS (basket; UL 94:HB); Mylar (diaphragm)
- Functionally at cold according to EN 60068-2-1/EN 50155

Technical Specifications

Rated power	1 W
Maximum power	2 W
Nominal impedance Z	8 Ohm
Frequency response	300–20000 Hz
Mean sound pressure level	77 dB (1W/1m)
Opening angle (-6dB)	180°/4000 Hz
Excursion limit	±0.5 mm
Resonance frequency fs	550 Hz
Voice coil diameter	10 mm
Height of front pole-plate	2 mm
Height of winding	2 mm
Cutout diameter	31 mm
Net weight	7 g
Protective system	IP 65 *)
Temperature range	-40 ... +70 °C

*) IP protection class for front side when built into a sealed enclosure



Driver Dimensions

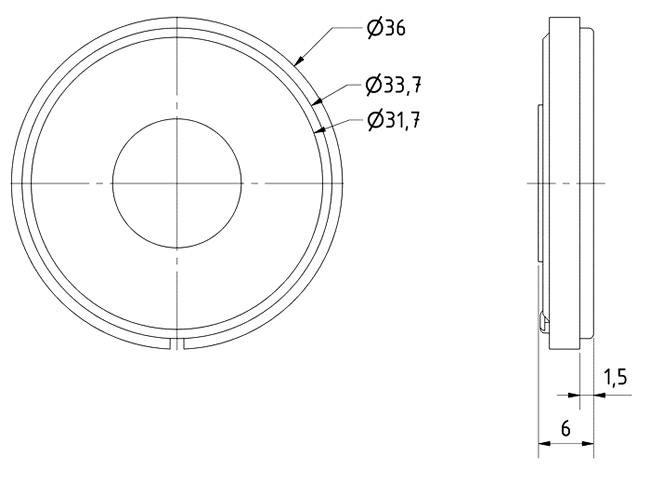

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

Frequency and Impedance Response

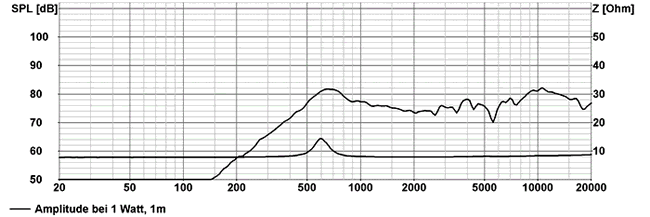

Loudspeaker Frequency and Impedance Response Graph

Directivity Pattern

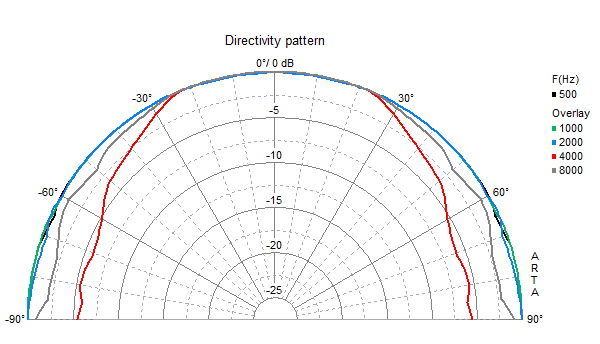

Loudspeaker Directivity Pattern (on and off axis response)
