SKU: V-2815-K16 K 16 - 8 Ohm

Visaton Speaker Driver - K 16 - 8 Ohm Miniature Loudspeaker
Art. No. 2815

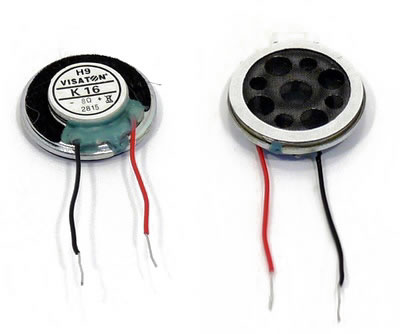

Visaton K16 - 8 Ohm Miniature Loudspeaker

Characteristics and Sound Properties
1.6 cm (0.63") miniature loudspeaker with very small dimensions and a front-sided area of glue. The connection can be done via already stripped cables.

Typical applications:-
- Applications in very small devices
- Model construction
- Signal output

Technical Specifications

Rated power	0.5 W
Maximum power	1 W
Nominal impedance Z	8 Ohm
Frequency response	700–20000 Hz
Mean sound pressure level	71 dB (1W/1m)
Resonance frequency fs	1100 Hz
Voice coil diameter	8 mm
Height of winding	18 mm
Cutout diameter	13 mm
Net weight	0.002 kg
Length of cable	24 mm
Temperature range	–25 ... 70 °C

Driver Dimensions

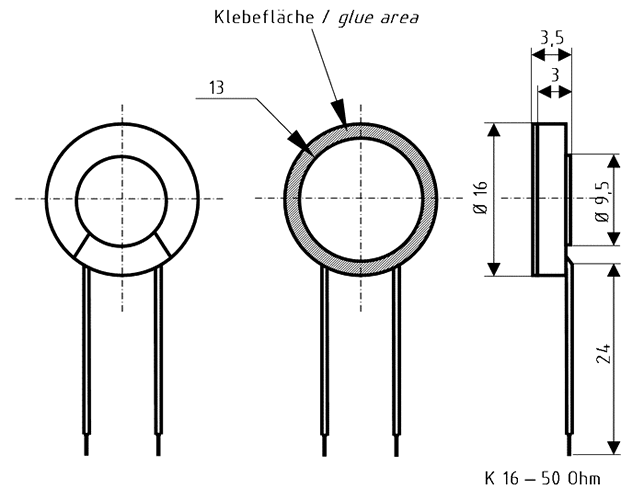

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

Frequency and Impedance Response

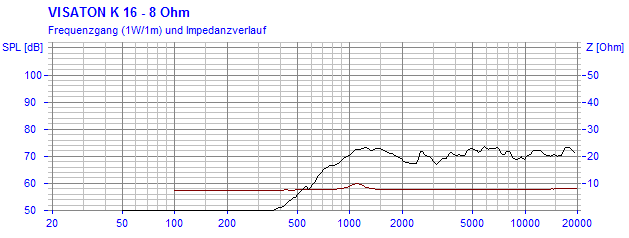

Loudspeaker Frequency and Impedance Response Graph
