    K 1030 - 8 Ohm

    Thumbnail Filmstrip of K 1030 - 8 Ohm Images

      Purchase K 1030 - 8 Ohm

      SKU: V-2801-K1030 K 1030 - 8 Ohm

      $13.00 each
      Brand: Visaton
      Quantity in Basket:  None






      Visaton Speaker Driver - K10.30 - 8 Ohm Miniature Speaker
      Art. No. 2801

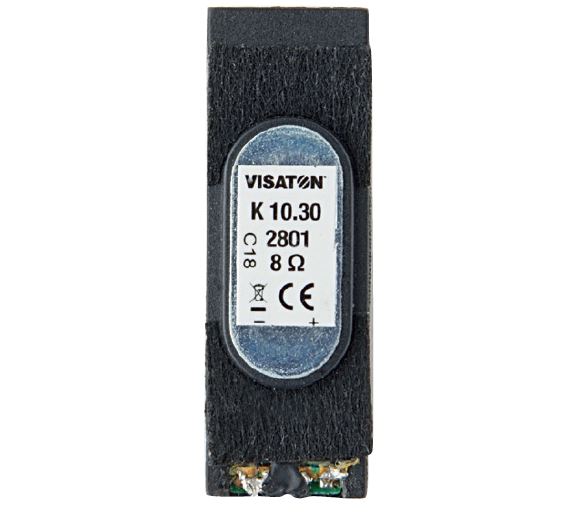

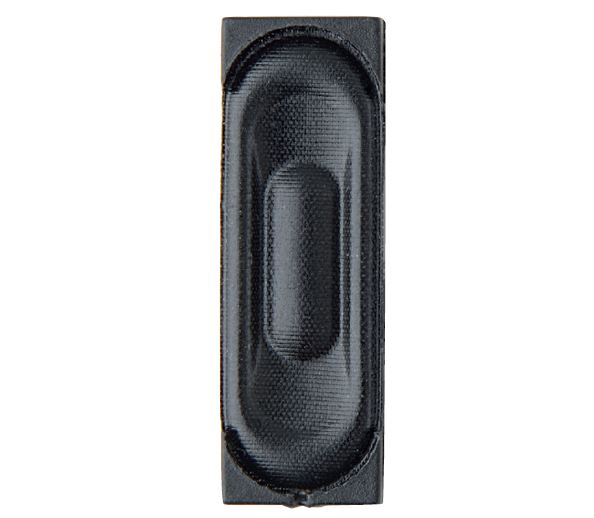

      Visaton K 10.30 - 8 Ohm Miniature SpeakerVisaton K 10.30 - 8 Ohm Miniature Speaker rear view.

      Visaton K 10.30 - 8 Ohm Miniature Speaker



      Characteristics and Sound Properties
      1 x 3 cm (0.39" x 1.2") miniature speaker with plastic basket and coated fabric cone. The electrical contact is done via solder pads at the rear side. Suitable for signal and speech output in applications with very little space.



      Technical Specifications

      Rated power 0.5W
      Maximum power 1 W
      Nominal impedance Z 8 Ohm
      Frequency response 750-20000 Hz
      Mean sound pressure level 85 dB (0.1 W/0.1 m)
      Resonance frequency fs 1200 Hz
      Net Weight 2.5g








      Driver Dimensions

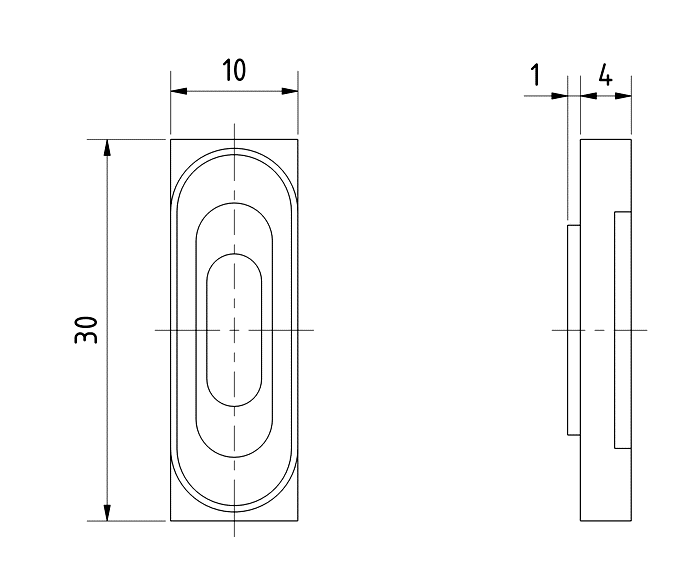

      Visaton K 10.30 - 8 Ohm Miniature Speaker dimensions
      Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)



      Frequency and Impedance Response

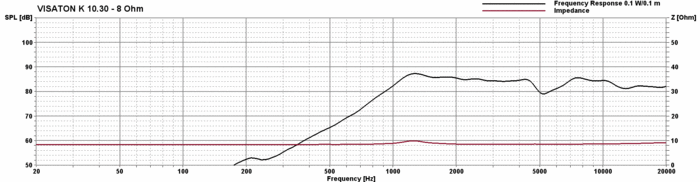

      Visaton K 10.30 - 8 Ohm Miniature Speaker frequency response
      Loudspeaker Frequency and Impedance Response Graph
