SKU: V-2247-BF32S BF32 S - 8 Ohm

Visaton Speaker Driver - BF32S - 8 Ohm 3.2 cm or 1.3" fullrange speaker
Art. No. 2247

Visaton Speaker Driver BF32S - 8 Ohm 3.2 cm or 1.3" fullrange speaker

Characteristics and Sound Properties
3.2 cm (1.3") fullrange speaker with a wide and balanced frequency response and very good low range reproduction. With powerful Neodymium driver.

Suitable for applications where slim construction and good music and speech reproduction are requested. Square basket with four mounting holes for easy mounting.

Typical applications:-

• Flat TVs
• Info Terminals
• Other compact devices speech and music reproduction.



Technical Specifications

Rated power	2 W
Maximum power	5W
Nominal impedance Z	8 Ohm
Frequency response	150–20000 Hz
Mean sound pressure level	78 dB (1 W/1 m)
Resonance frequency fs	220 Hz
Voice coil diameter	20 mm
Height of winding	3 mm
Cutout diameter	31.5 mm
Net weight	28g
Temperature Range	–25 ... 70 °C

Driver Dimensions

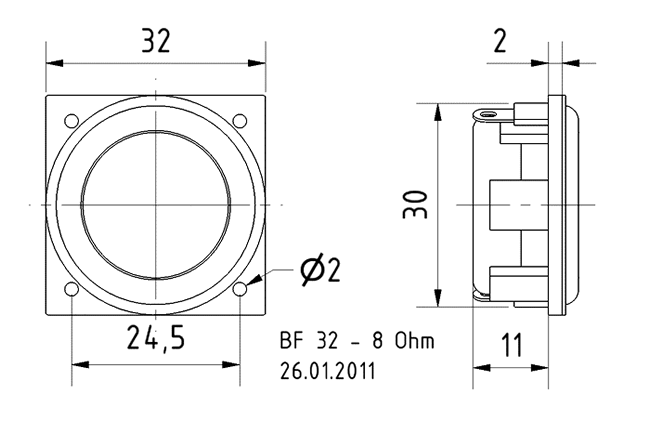

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

Frequency and Impedance Response

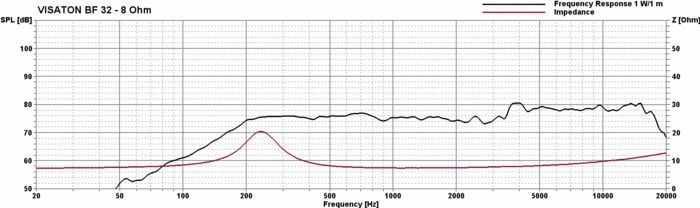

Loudspeaker Frequency and Impedance Response Graph

Directivity Pattern

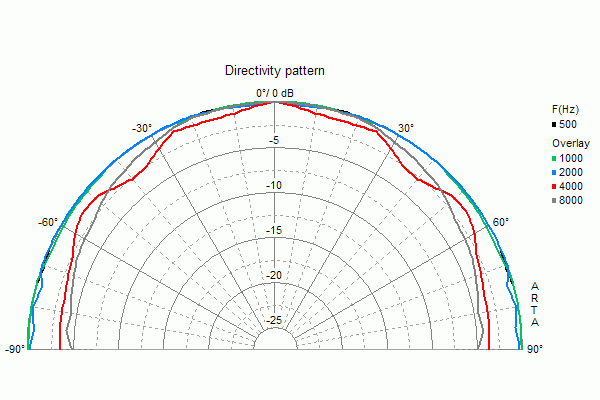

Loudspeaker Directivity Pattern (on and off axis response)
