SKU: V-2242-BF32 BF 32 - 8 Ohm

Visaton Speaker Driver - BF 32 - 8 Ohm Miniature Wideband Driver
Art. No. 2242

Visaton BF32 - 8 Ohm

Characteristics and Sound Properties
3.2 cm (1.3") fullrange speaker with a wide and balanced frequency response and very good low range reproduction. With powerful Neodymium driver. Suitable for applications where slim construction and good music and speech reproduction are requested. Square basket with four mounting holes for easy mounting.

Typical applications:
- flat screens (TV and PC)
- information terminals
- other compact devices speech and music reproduction

Technical Specifications

Rated power	2 W
Maximum power	5 W
Nominal impedance Z	8 Ohm
Frequency response	150–20000 Hz
Mean sound pressure level	78 dB (1W/1m)
Resonance frequency fs	220 Hz
Voice coil diameter	20 mm
Height of winding	3 mm
Cutout diameter	31.5 mm
Net weight	0.028 kg
Connections	Soldering

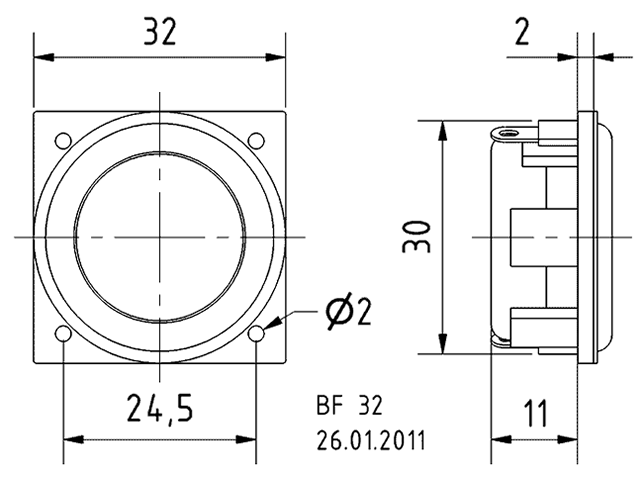

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

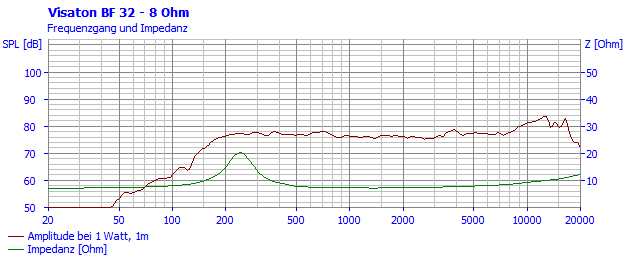

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

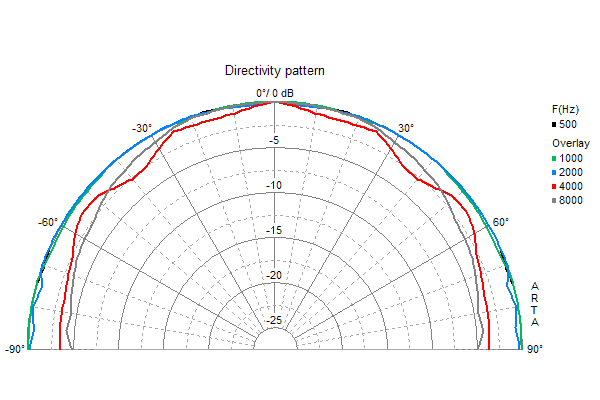

Directivity Pattern

Loudspeaker Directivity Pattern (on and off axis response)
