SKU: V-2180-FR10WPX FR 10 WPX Black - 4 Ohm'

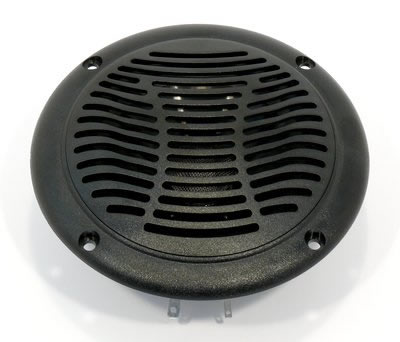

Visaton Speaker Driver - FR 10 WPX - 4 Ohm Saltwater Resistant - Black
Art. No. 2180

Visaton FR10WPX - 4 Ohm Saltwater Resistant - black.

Characteristics and Sound Properties
Saltwater resistant 10 cm (4") full-range driver with moulded plastic cone, plastic basket and grille. Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads. Black colour. *) IP protection class for front side when built into a sealed enclosure

Typical applications:-
- Loudspeaker for saunas
- Outdoor PA systems
- Loudspeaker for solariums and damp locations
- Boats, ships and open vehicles

Attributes:-
- Temperature resistant up to 120 °C
- Suitable for outdoor applications
- Seawater proof
- Ball-resistant

Technical Specifications

Rated power	20 W
Maximum power	30 W
Nominal impedance Z	4 Ohm
Frequency response	80–16000 Hz
Mean sound pressure level	83 dB (1W/1m)
Opening angle (-6 dB)	83°/4000 Hz
Resonance frequency fs	120 Hz
Height of front pole-plate	4 mm
Voice coil diameter	20 mm
Height of winding	5 mm
Cutout diameter	101 mm
Net weight	0.275 kg
Connections	4.8 x 0.8 mm (+) 2.8 x 0.8 mm (−)
Protective System	IP 65 *)
Colour	Black
Temperature range	-40 ... 120 °C

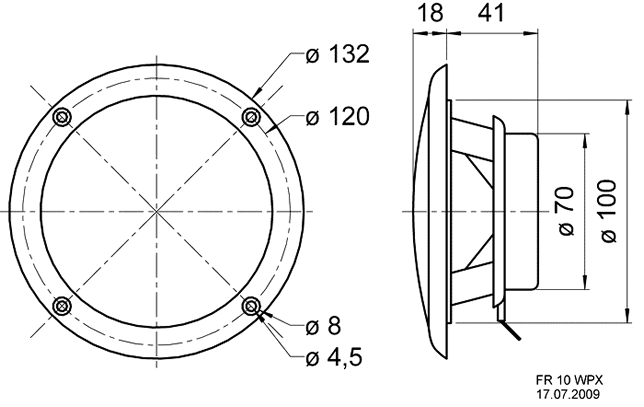

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

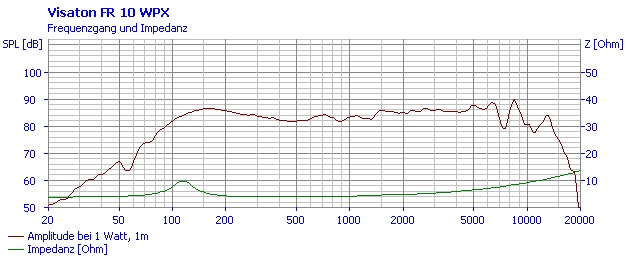

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

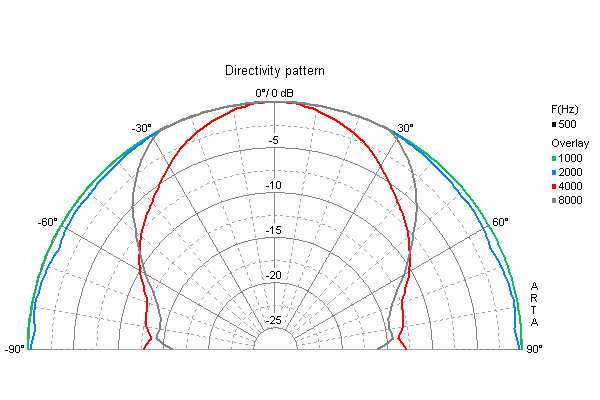

Directivity Pattern

Loudspeaker Directivity Pattern (on and off axis response)
