SKU: V-2126-FR16WPCL FR 16 WP CL - 100V

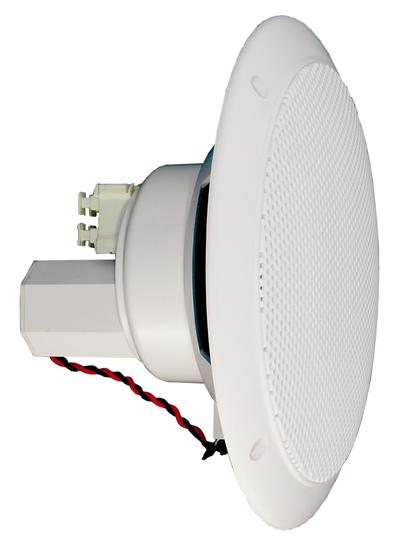

Visaton Speaker Driver - FR 16 WP CL - 100 V Saltwater Resistant Full Range
Art. No. 2126

Visaton FR16WPCL - 100V Saltwater Resistant Full Range

Characteristics and Sound Properties
Saltwater resistant 16 cm (6.5") full-range speaker with moulded plastic cone, plastic basket and grille. Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads. Suitable for chloric air (e.g. indoor swimming pools). *) IP protection class for front side when built into a sealed enclosure.

Typical applications:
- Indoor swimming pools

Attributes:
- 100 V transformer
- Seawater proof
- Suitable for chloric air
- Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
- Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
- Plastic: ASA (UL 94:HB; UV-/weather-proof)
- Ball-resistant

Technical Specifications

Transformer Matching	6; 3; 1.5 W
Sound pressure level	94 dB (1 W/1 m) @ 3500 Hz
Frequency Response	60–15000 Hz
Mean sound pressure level	86 dB (1 W/1 m)
Max sound pressure level	93 dB (1W/1m)
Opening angle (-6 dB)	46°/4000 Hz
Excursion limit	6 mm
Magnetic induction	1.0 T
Magnetic flux	250 uWb
Height of front pole-plate	4 mm
Voice coil diameter	20 mm
Height of winding	6 mm
Cutout diameter	142 mm
Net weight	0.6 kg
Protective system	IP 65 *)
Temperature range	-40 ... 80 °C

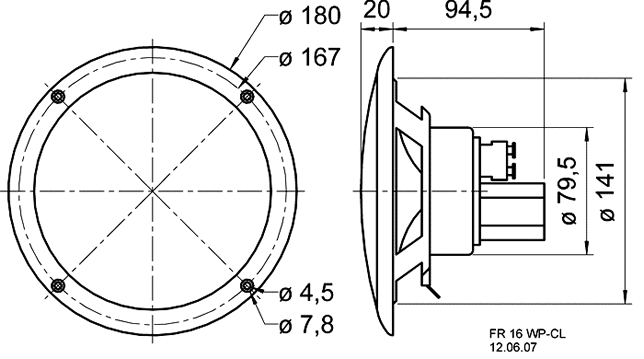

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

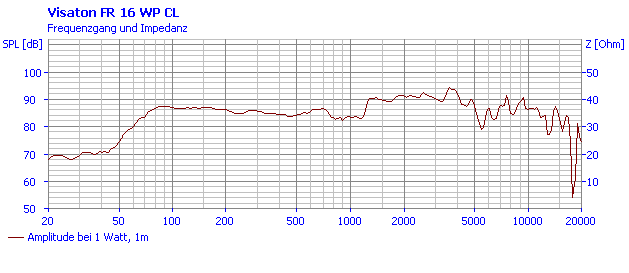

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

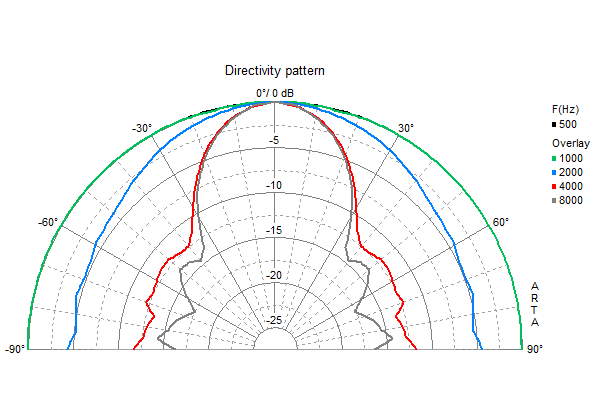

Directivity Pattern

Loudspeaker Directivity Pattern (on and off axis response)
