SKU: V-2030-R10STE R 10 S TE - 8 Ohm

Visaton Speaker Driver - R 10 S TE - 8 Ohm Fullrange Speaker
Art. No. 2030

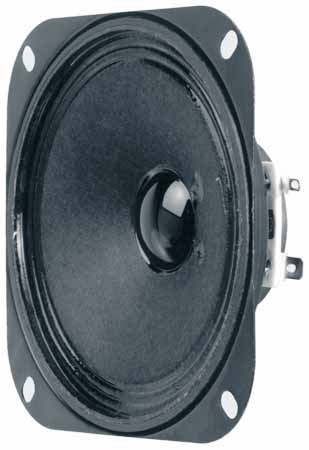

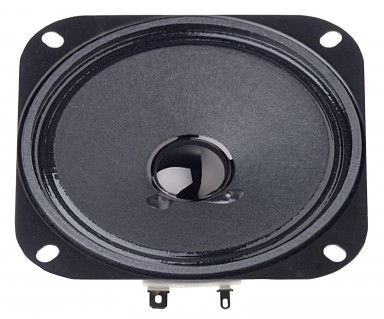

Visaton R10STE - 8 Ohm Full Range Speaker

Characteristics and Sound Properties
10 cm (4") fullrange speaker with high efficiency and balanced frequency response. Especially suitable as control speaker for electronic devices. Equivalent to model R 10 S - 8 Ohm, but with connectors 4.8 x 0.8 mm (+) and 2.8 x 0.8 mm (-).

Typical applications:-
- Control speakers for electronic devices
- Ceiling- mounted speakers in railway carriages and buses
- Model construction

Technical Specifications

Rated power	20 W
Maximum power	30 W
Nominal impedance Z	8 Ohm
Frequency response	100–13000 Hz
Mean sound pressure level	90 dB (1W/1m)
Dispersion angle (-6 dB)	92°/4000 Hz
Excursion limit	±1.5 mm
Resonance frequency fs	160 Hz
Magnetic induction	0.95 T
Magnetic flux	135 µWb
Height of front pole-plate	3 mm
Voice coil diameter	15 mm
Height of winding	4 mm
Cutout diameter	93 mm
Net weight	0.16 kg
DC resistance Rdc	7.2 Ohm
Mechanical Q factor Qms	6.27
Electrical Q factor Qes	2.92
Total Q factor Qts	1.99
Equivalent volume Vas	1.7 litres
Effective piston area Sd	56 cm2
Dynamically moved mass Mms	2 grams
Force factor Bxl	2.0 Tm
Inductance of the voice coil L	0.5 mH
Temperature range	−25 ... 70 °C
Connections	4.8 x 0.8 mm (+) 2.8 x 0.8 mm (−)

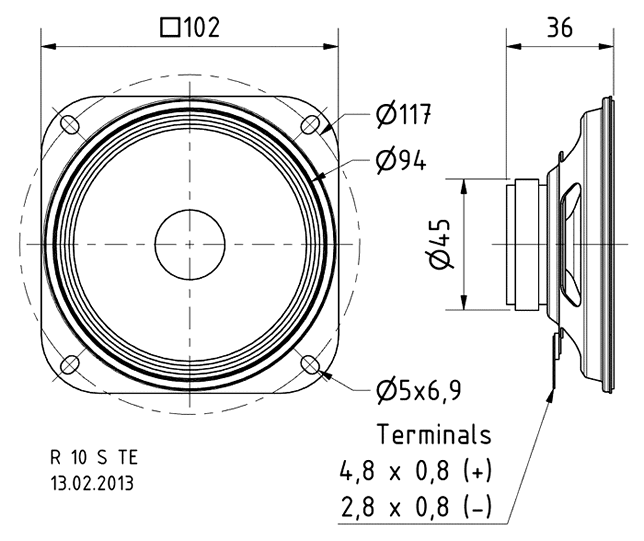

Driver Dimensions

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

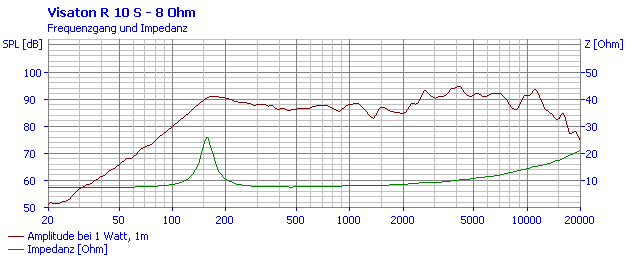

Frequency and Impedance Response

Loudspeaker Frequency and Impedance Response Graph

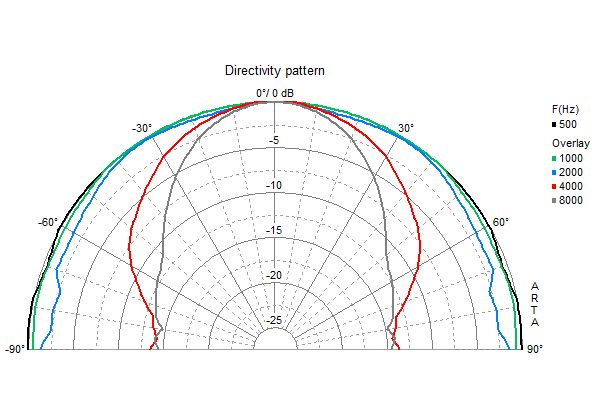

Directivity Pattern

Loudspeaker Directivity Pattern (on and off axis response)
