Visaton Speaker Driver - B 100 - 6 Ohm High End Fullrange
Art. No. 1263

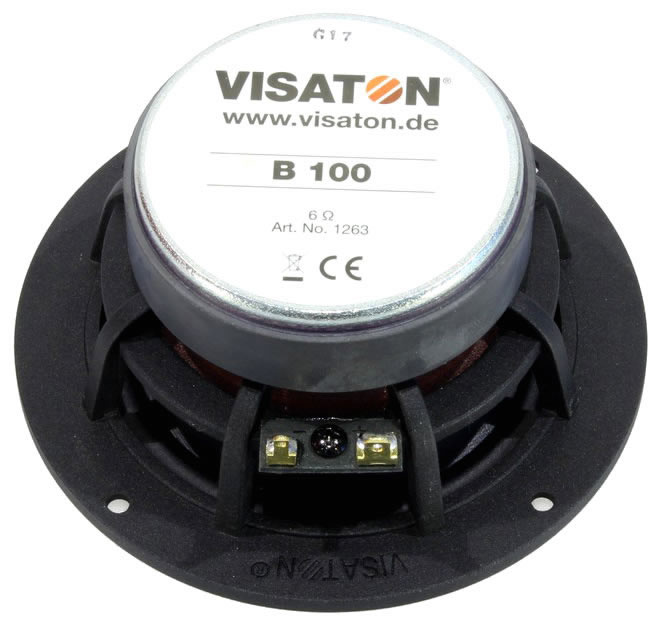

Visaton B100 - 6 Ohm high-end fullrange.
Characteristics and Sound Properties
10 cm (4") high-end full-range loudspeaker with excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis. High efficiency with low distortion are just some of the qualities of this speaker.
Attributes:-
- Paper membrane
- Impedance control ring (copper)
- Aluminium die cast basket
- Phase-plug
Technical Specifications
| Cm | 1.28 mm/N |
| Rated power | 30 W |
| Maximum power | 60 W |
| Nominal impedance Z | 6 Ohm |
| Frequency response (fu: Lower cut-off frequency depending on cabinet) |
fu-20000 Hz |
| Mean sound pressure level |
88 dB (1W/1m) |
| Maximum linear displacement | ±1.6 mm |
| Excursion limit | ±7.0 mm |
| Resonance frequency fs | 75 Hz |
| Magnetic induction | 1.29 T |
| Magnetic flux | 316 µWb |
| Height of front pole-plate | 3 mm |
| Voice coil diameter | 26 mm |
| Height of winding | 6.3 mm |
| Cutout diameter | 101 mm |
| Net weight | 0.68 kg |
| DC resistance Rdc | 5.8 Ohm |
| Mechanical Q factor Qms | 10.13 |
| Electrical Q factor Qes | 0.54 |
| Total Q factor Qts | 0.52 |
| Equivalent volume Vas | 5.27 Litres |
| Effective piston area Sd | 54.1 cm² |
| Dynamically moved mass Mms | 3.2 g |
| Force factor Bxl | 4.1 Tm |
| Inductance of the voice coil L | 0.36 mH |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (−) |
Recommended Cabinet Sizes
| Volume / Principle | BR Port | fb | fc / QTC |
| 5.8 litre / closed | - | - | 107 Hz / 0.71 |
| 11 litre / bass reflex | 1 x BR 19.24 (length 9 cm) | 60 Hz | - |
fc = System resonance (sealed box system)
QTC = The system's Q at resonance (fc)
Driver Dimensions

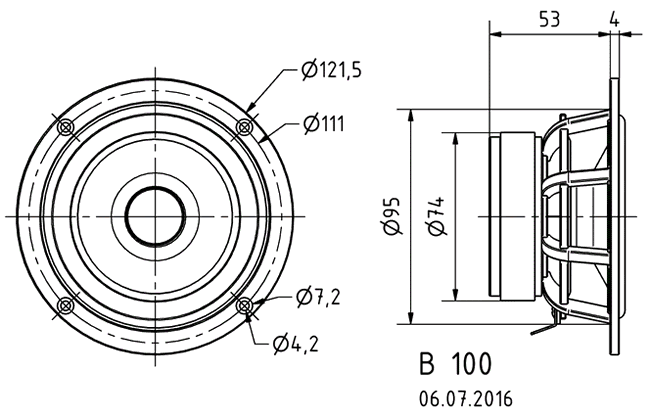

Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
Frequency and Impedance Response

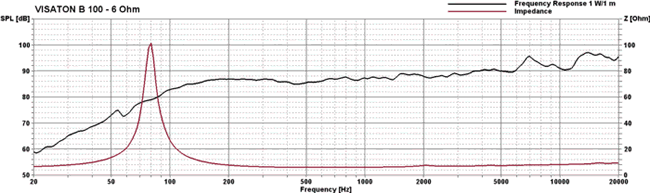

Loudspeaker Frequency and Impedance Response Graph

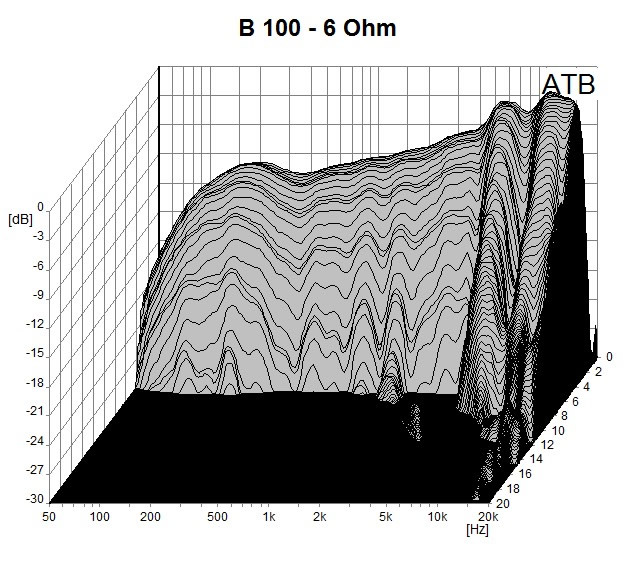

Loudspeaker Waterfall Spectrum Chart
