KE 25 SC - 8 Ohm

Thumbnail Filmstrip of KE 25 SC - 8 Ohm Images

    Purchase KE 25 SC - 8 Ohm

    SKU: V-1191-KE25SC KE 25 SC - 8 Ohm

    $315.00 each
    Brand: Visaton
    Quantity in Basket:  None

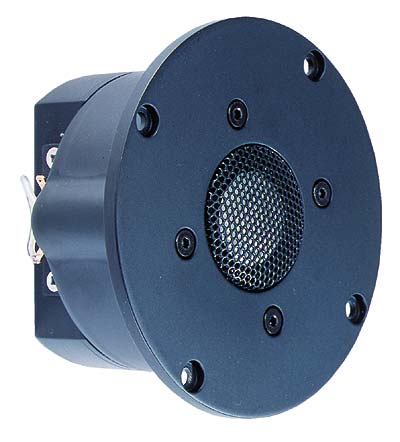

    Visaton Speaker Driver - KE 25 SC - 8 Ohm High End Dome Tweeter
    Art. No. 1191

    Visaton KE25SC - 8 Ohm High End Dome Tweeter.
    Visaton KE25SC - 8 Ohm High End Dome Tweeter



    Characteristics and Sound Properties
    Magnetically shielded 25 mm (1") high end dome tweeter made of ceramic for crystal clear, perfectly reproduced sound even at high volume settings and with no distortion. The pole piece perforation coupled with the flow-optimised rounded shape, the damping in the cavity and the ventilated voice coil carrier guarantee a very low resonance frequency.

    The impedance is linearised by means of an integrated LRC element. This means that the dome can be easily integrated in a network of crossovers. The protective grille is fitted on the inside with an acoustic low-pass filter in the shape of a transparent ring, which does not begin to operate until 25 kHz are achieved, when it damps any material-borne resonance. The grille has the added advantage of improving omnidirectional sound distribution at higher frequencies.



    Technical Specifications

    Nominal power handling with high pass 80 Watt
    (12 dB/Oct.; 2000 Hz)
    Peak power handling with high pass 140 Watt
    (12 dB/Oct.; 2000 Hz)
    Nominal impedance Z 8 Ohm
    Frequency response 800–25000 Hz
    Mean sound pressure level 89dB (1W/1m)
    Opening angle (-6 dB) 124°/8000 Hz
    Resonance frequency fs Compensated
    Magnetic induction 1.5 T
    Magnetic flux 470 µWb
    Voice coil diameter 25 mm
    Cutout diameter 82 mm
    Net weight 0.98 kg
    DC resistance Rdc 5.9 Ohm

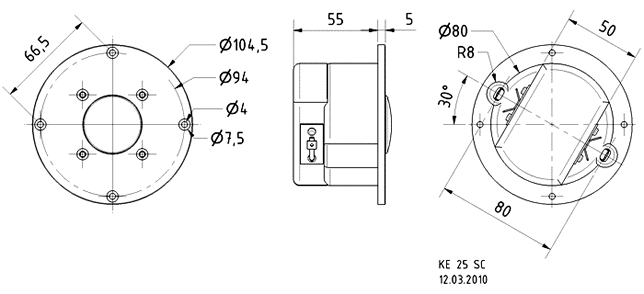

    Driver Dimensions

    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)
    Loudspeaker Driver Dimensions and Measurements - all dimensions in mm (approx.)

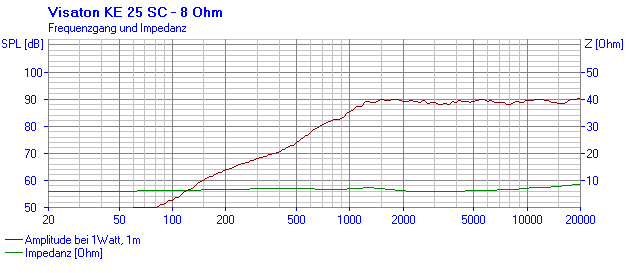

    Frequency and Impedance Response

    Loudspeaker Frequency and Impedance Response Graph
    Loudspeaker Frequency and Impedance Response Graph

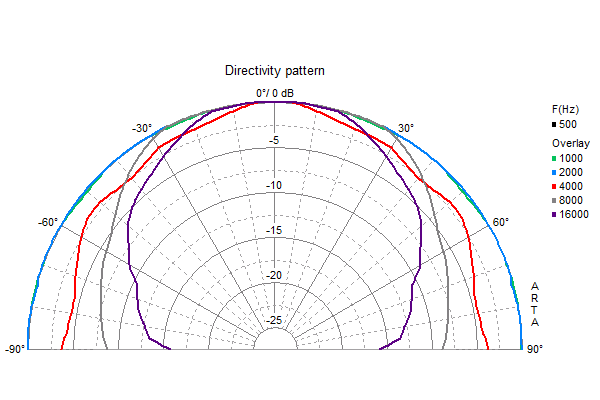

    Directivity Pattern

    Loudspeaker Directivity Pattern (on and off axis response)
    Loudspeaker Directivity Pattern (on and off axis response)

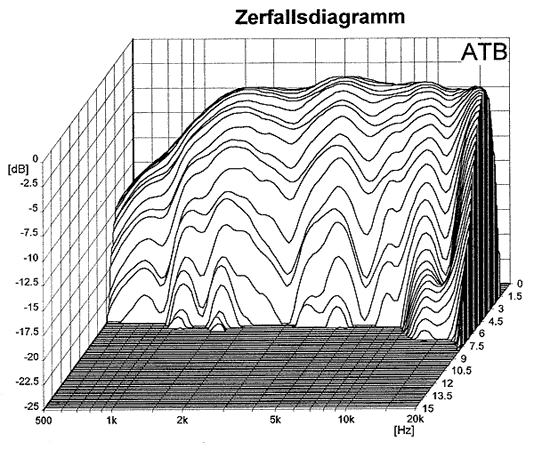

    Waterfall Spectrum

    Loudspeaker Waterfall Spectrum Chart
    Loudspeaker Waterfall Spectrum Chart
