Time switch approx. 2 sec. up to 23 min. (± 30%) M113A - Time switch 12 - 15 V/DC

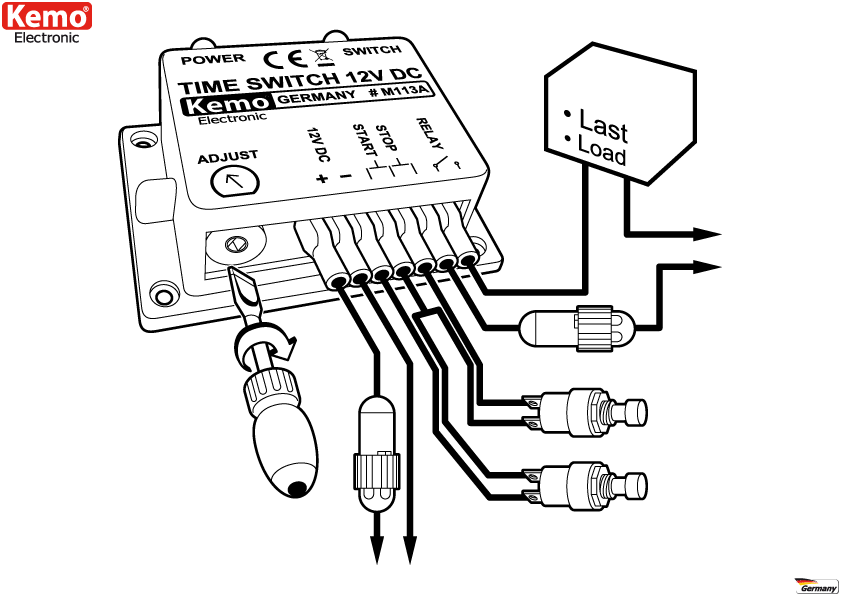

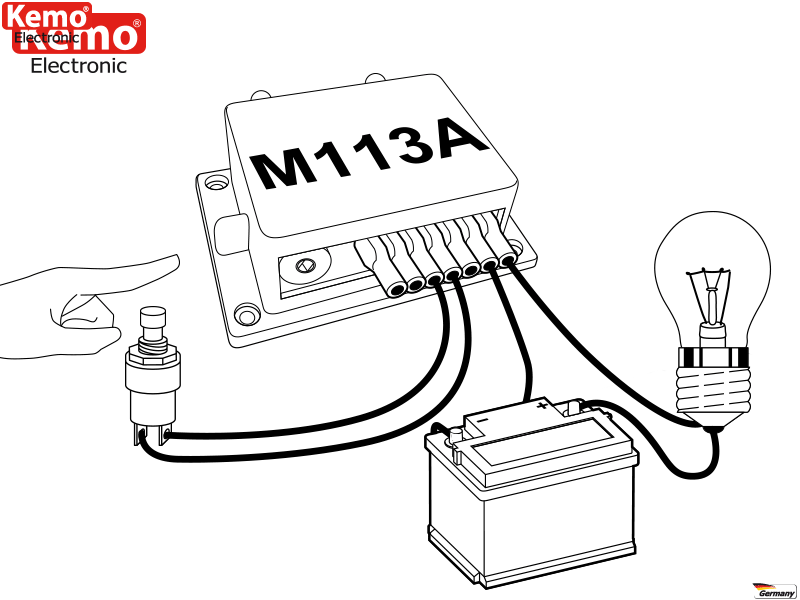

Switches other devices on after pressing the key and switches them off again automatically by means of the installed relay point 1 x ON (max. 3 A) when the adjusted time has expired. The lapse of time may be interrupted any time with the second key. 2 push-buttons are required for operation.
Technical Data
Operating voltage
12 - 15 V/DC
Current consumption
approx. 20 mA / 80 mA (relay off / on)
Adjustable time
approx. 2 sec. to 23 min., (± 30 %)
Connection
via flat-pin plug at the module
Displays
2 (1 x LED operating voltage, 1 x LED relay “ON”)
Relay point
1 x ON, max. 3 A, max 25 V (The installed relay point may also switch up to 230 V/AC, but in this case the safety regulations of VDE like protection against accidental contact, etc. have to be observed)
Dimensions
approx. 87 x 60 x 33 mm (with mounting bottom)
