SKU: Speakers-Benz-W124-Active-ESX120 Mercedes Benz W124 Front Amplified Speakers 75W

ESX Benz W124 Active Speaker System for Front Factory Replacement 120mm / 5 Inch

Ideal replacement for Mercedes Benz W124 sedan and coupé (about 1985-95) front dashboard speakers or other car audio applications. This system not only replaces the speakers, it includes a high power amplifier to really get the sound going. Including adaptors for the originals speakers, you don't even need to run new speaker wire; and the amp being highly efficient, power from the same sources as the radio will suffice.

These powerful 95 watt RMS coaxial speakers have been designed to give superior performance coupled with the included ultra compact full range Class-D amplifier. There are no extra cables required for a radio with standard Euro DIN cables, and you don't need extra power to be connected to the battery.

High end sound is achieved thanks to the bandwidth of up to 60,000Hz and low harmonic distortion of <0.007% (THD+N @ 5W). It has RCA output for optional subwoofers to boost your sound, rounding out your system. Straight-forward installation due to plug and play nature.

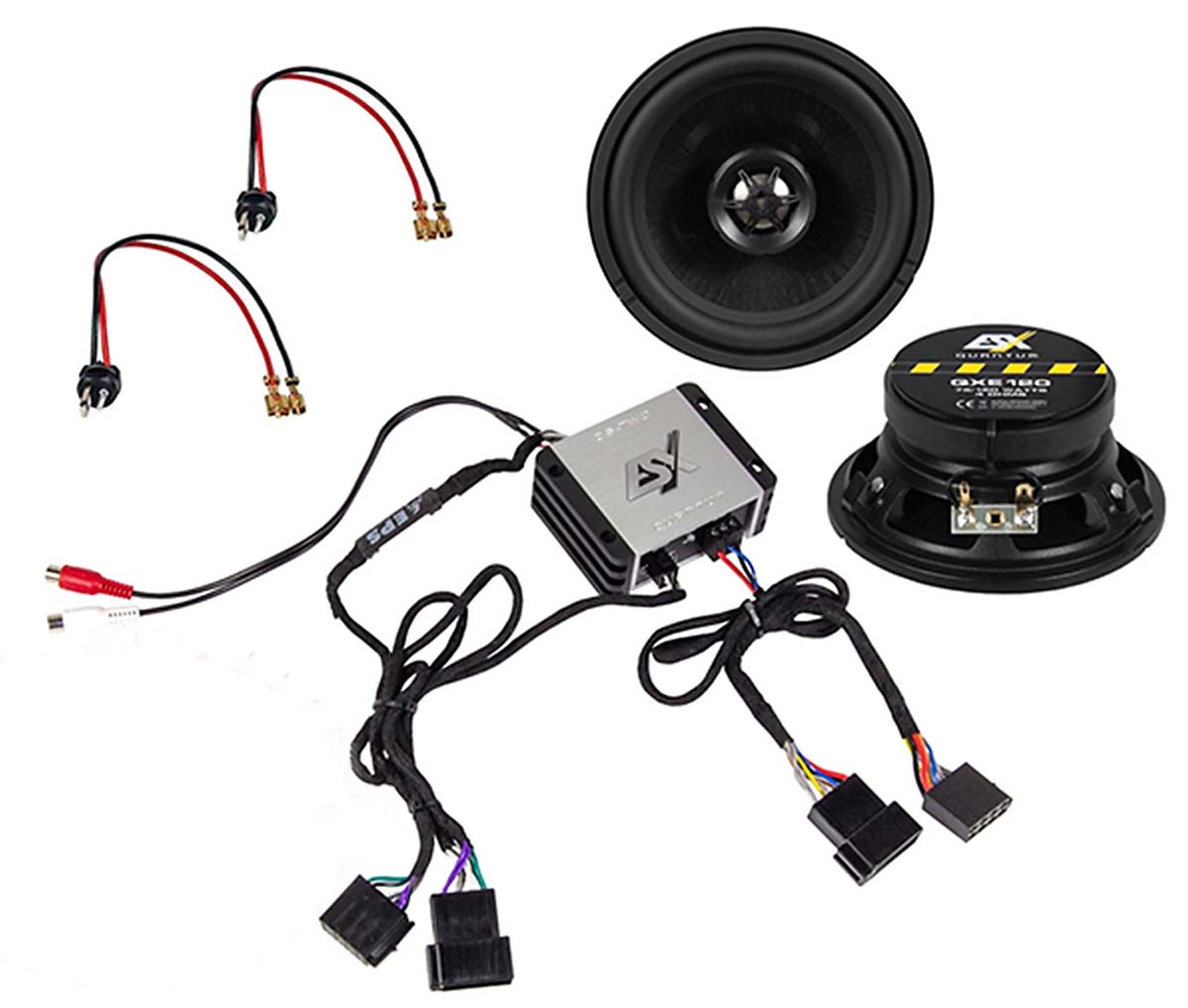

ESX W124 Active Speaker System

System Details:

• 2 Channel amplifier with a pair of two-way coaxial speakers
• Associated connection cables for DIN Euro plug connections and original speaker connection adaptors.

Amplifier Details:

• 2-Channel Class D Amplifier
• 2 x 52 / 95 Watt RMS at 4 / 2 Ohm
• Ultra-compact Full Range Class D Amp
• Frequency response 10 Hz to 60 kHz
• Perfect for HD Audio
• Up to 90% efficiency
• 2-channel RCA Line Out for e.g. active subwoofers
• Wiring harness with DIN ISO plug and sockets (not for original Becker wiring, but we can supply some adaptors)
• Dimensions 70 x 35 x 90 mm (approx.)

Speaker Details:

• 12cm speakers with adapter cables for Becker / Benz-style speaker sockets
• 2-Way Coax with 75 Watt RMS power handling, 4 Ohm
• 20 mm aluminium tweeter
• 120 mm polypropylene graphite cone
• Speaker adapter cable from "old" to new
• Mounting depth: 49 mm (approx.)
• Mounting hole: 110 mm (approx.)


ESX QS-Two compact amplifier
