Thumbnail Filmstrip of RetroSound Radio International Pickup 1957-1959 Style Images

RetroSound RetroRadio Premium - International Pickup 1957-1959 Style

RetroSound car radios are highly configurable and look right at home in your classic vehicle giving you an original style often replicated from original parts. We have configured this one to suit the car listed as close as possible but other looks are available. Modern features such as USB, DAB (digital radio), iPod / iPhone compatibility and Bluetooth depending on the option you select.

Please check the cut out size in your dash and dimensions before ordering: measurements of the radio are below on the diagram and also the faceplate link. If you are unsure measure the width and height of the cut out in your dash, plus measure centre to centre on any knob holes which are drilled separately and contact us. More on buying a RetroSound Radio here.

What is DAB? Digital Audio Broadcasting is a new free advanced digital radio system rolling out across Australia. Click here to check reception in your area. Note you will need a DAB aerial or the aerial splitter we offer above. The unit still has a normal AM and FM radio tuner.

This configuration Premium RetroRadio + 102 + 02-72

Faceplate Dimensions:- 102 Faceplate

Standard Features:

Bluetooth for your mobile phone - includes microphone for hands-free telephone calls
Bluetooth A2DP audio streaming - anything that your mobile can send via A2DP Bluetooth should play, such as music, podcasts, Internet radio, navigation and more.
Built-in DAB / DAB+ tuner (optional DAB antenna / adaptor required, select option)
AM / FM tuner with 30 memory presets
32000 colour LCD display plus dimmer setting choose your colour: orange, red, green, blue etc.
Built in Amplifier: 4x 25W RMS output; 4x 45W peak
Extension ports available
2x USB inputs for MP3 / WMA playback (32G max.), USB are accessible via a short cables on the back of the radio; USB Extension ports available.
2x Auxiliary input/s (rear - 3.5mm socket) 8" / 20cm long approx., optional AUX Extension ports available
Pre-amp Dual RCA outputs: 4 channel
The LCD pushbuttons and face panel come various colour options - select on checkout.
EQ presets / treble / bass / mid-range / fader / balance adjustments
Power antenna lead and amp turn on output included
Optional vintage look screen protectors are available (some radio configurations may include a specific screen protector film.).
Selectable 12 / 24 hour clock
Works seamlessly with optional RetroSound Amplifiers
Australian / European / USA / Japan tuning system
Power Requirements: 10.5-14.4 V DC (negative chassis)
Current Consumption (during operation): Max. 15A
Current Consumption (ignition off): <3.5 mA
Compatible aerials
Compatible speakers
Dimensions (radio face only): 3.5" x 1.5" x 1.05" = 9.0 x 3.8 x 25 mm (W x H x D approx. - please check dimensions before cutting, front panel is slightly tapered)
Dimensions (radio body): 3.96" x 1.98" x 4.30" = 10.1 x 5.03 x 10.9cm (W x H x D approx. - cables and mounts not included)
Removable front panel for advanced installs - optional extension cable available
Patented "InfiniMount" adjustable shaft system
Made for iPod / iPhone
Subwoofer output with adjustment control
Non-volatile memory (keeps settings and stations if battery is disconnected)
2 Year warranty

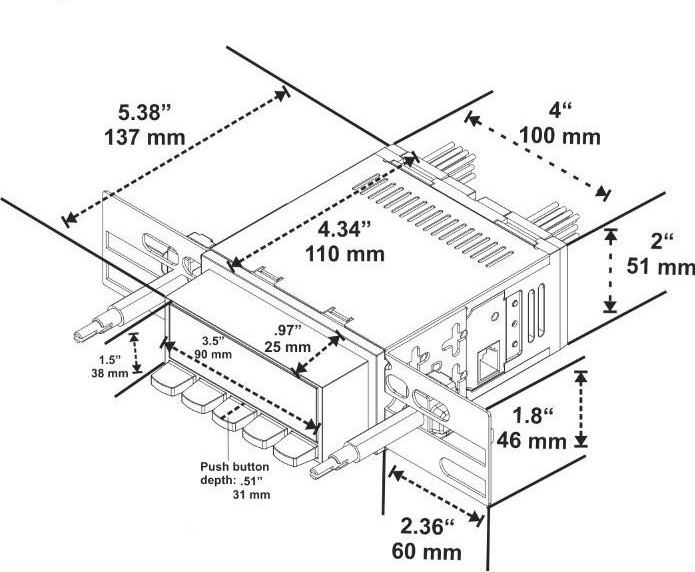

RetroSound radio dimensions (approx.):

Retro Sound RetroRadio chassis dimensions (approx.)

They have a wide assortment of interchangeable knobs, faceplates and trimmings to suit a range of looks and vehicles. They are an ideal solution for restorers of classic cars. Installation is required and if you do not have experience, we recommend a professional installer.

General mounting hardware is included with the unit but for DIN sized holes — 2-1/8" (50mm) height by 7-1/8" (180mm) width —, order the DIN mounting kits here. Also you can order optional screen protectors too.

Note:- These radios are highly configurable and need some assembly but can be configured to suit a range of vehicles or tastes, please contact us if you need help. Professional installation is recommended.

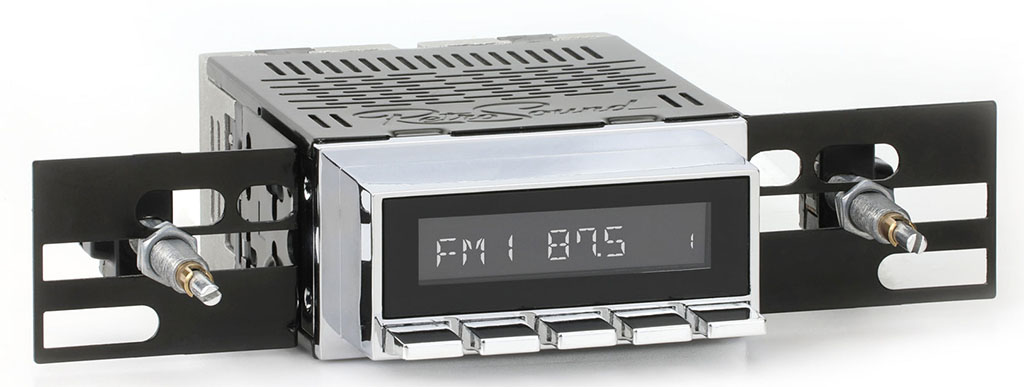

RetroSound RetroRadio, showing base unit with chrome trim and chrome buttons.

RetroSound RetroRadio, showing base unit with black trim and black buttons.

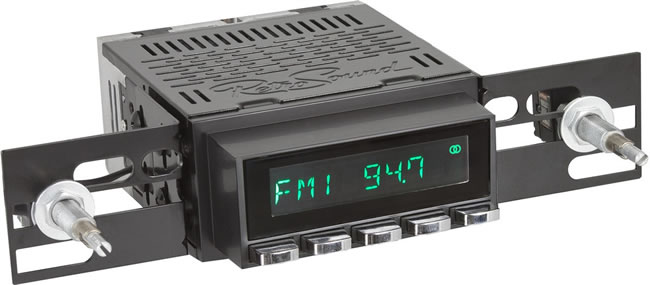

RetroSound RetroRadio, showing base unit with black trim and chrome buttons.

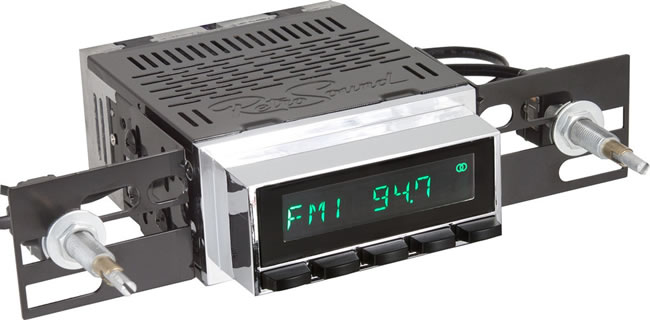

RetroSound RetroRadio, showing base unit with chrome trim and black buttons.

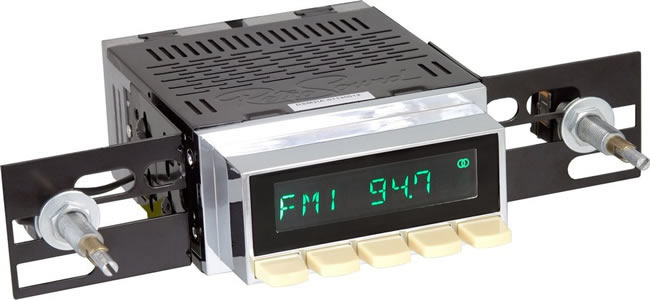

RetroSound RetroRadio, showing base unit with chrome trim and ivory buttons.

Please select your Motor option above when ordering, details are below for each feature set. Price will change accordingly.

Important! Please check the cut out size in your dash and dimensions before ordering: measurements of the radio are below. If you are unsure, measure the width and height of the cut out in your dash, plus measure centre to centre on any knob holes which are drilled separately and contact us, other configurations are possible. More on buying a RetroSound Radio here.

The RetroSound radio is available with two different feature sets:

Motor 6 Features:

Bluetooth for Phone Calls and Music Streaming.
Built-in DAB+ tuner (optional DAB antenna / adaptor required, select option)
AM / FM tuner with 30 memory presets
32000 colour LCD display plus dimmer setting
Built-in 4 Channel Amplifier: 25 Watts RMS True Rating / 45 Watts max. / 300 Watts (peak power) MOSFET amplifier
2x USB inputs for MP3 / WMA / FLAC file playback, USB is accessible via 15" / 38cm (approx.) on the back of the radio, optional USB Extension ports available.
2.1 Amp device charging via USB
1x Auxiliary/AUX 3.5mm input 7" / 18cm long approx., optional AUX Extension ports available
Pre-amp with six RCA outputs: 4 full channel plus dual subwoofer output with adjustment control
Made for iPod / iPhone
2 Year warranty
See below for more information on all motors for these radios.

Motor 1DAB-1 Features:

Bluetooth for Phone Calls and Music Streaming.
Built-in DAB+ tuner (optional DAB antenna / adaptor required, select option)
AM / FM tuner with 30 preset memories
White display only on LCD
Built-in 4 Channel Amplifier: 18 Watts RMS True Rating / 40 Watts max. / 275 Watts (peak power) MOSFET amplifier
1x Auxiliary/AUX 3.5mm input 5.5" / 14cm long approx., optional AUX Extension ports available
1 year warranty
See below for more information on all motors for these radios.

Common Features for Motor 1DAB-1 and Motor 6:

Dimensions (radio body): 4.34" x 2" x 4" = 110 x 51 x 100mm (D x H x W approx. - cables and mounts not included)
Power Requirements: 11.5 to 14.4 V DC (negative chassis) - Max. 15A
Output Speaker Impedance: 4 to 8 Ohm
Non-volatile memory (keeps settings and stations if battery is disconnected)
Selectable 12 / 24 hour clock
Removable front panel for advanced installs - optional extension cable available
Optional vintage look screen protectors are available (some radio configurations may include a specific screen protector film).
Works seamlessly with optional RetroSound Amplifiers
Compatible aerials
Compatible speakers
User Manual via download
Retro Manufacturing radios are a modular design. Assembly is required. This design allows for a more adjustable fit and to offer different style options. RetroSound Radios are only compatible with 12V negative grounding vehicles unless a voltage convertor is used.
Click here to check reception in your area.
