SKU: RF-Explorer-WSBU1G-Plus-Slim RF Explorer WSUB1G+ SLIM 50kHz - 960MHz

RF Explorer WSUB1G+ Slim with 50 kHz - 960 MHz Frequency Range

The RF Explorer is an affordable Handheld Spectrum Analyser designed from scratch to be a multi-purpose tool for the specific needs of digital radio frequency communication. The RF Explorer is aimed to provide a very affordable tool for work in all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer which offers high performance, compact size, low consumption and low cost.

The new SLIM model offers an outstanding robust design, a more convenient USB connector on the side and larger internal battery capacity.

The RF Explorer offers about 90% of what a high cost unit will do for RF digital band communication, at about 5% of the cost! Additionally, it can be carried easily anywhere, used remotely for hours with a single battery charge. The RF Explorer spectrum analyser displays full frequency spectrum in the appropriate band, including carrier and modulated shape. It will also display Spread Spectrum activity that exists and can show bandwidth to monitor collisions and frequency deviation. It includes PC connectivity for extra functionality using standard mini-USB 2.0 connector.

Features:

• Internal LNA amplifier and selectable attenuator
• Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
• New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
• Ideal choice for HAM bands from 160 meters to 33cm
• Wide band coverage to all popular sub-1GHz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
• Pocket size and light weight Solid aluminium metal case
• Spectrum Analyser mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
• High capacity internal Lithium battery for 16hs+ of continuous run, rechargeable by USB
• Multi-platform Windows/Linux/MacOS Open Source software and API libraries
• Can be extended with internal Expansion Modules for additional band and functionality
• Firmware upgrades available, open to community requested features.
• High capacity LiPo battery for 16hs+ of continuous run, rechargeable by USB.
• Can be extended with internal Expansion Modules for additional bands and functionality.
• Comes complete with carry case
• Optional stand.
• USB Cable supplied.
• Manuals can be downloaded here.
• Internal LNA amplifier and selectable attenuator

RF Explorer WSUB1G Plus Slim Specification:

• Frequency band: 0.05 – 960MHz
• Frequency span: 0.1 – 960MHz
• Internal selectable LNA 25dB gain
• Internal selectable Attenuator 30dB
• Graphics LCD 128x64 pixels, great visibility outdoors
• Support included for Windows, Linux and MacOS X
• Backlight for great visibility indoor
• Standard SMA 50 ohms connector
• Wideband 144/433 MHz dual band telescopic antenna included
• UHF 400-900MHz rubber duck articulated antenna included
• High quality flexible silicone rubber boot included
• Amplitude resolution: 0.5dBm
• Dynamic range: -125dBm to 10dBm
• Absolute Max input power: +30dBm
• Average noise level (typical LNA): -125dBm
• Frequency stability and accuracy (typical): ±10ppm
• Amplitude stability and accuracy (typical): ±2dBm
• Frequency resolution: 1kHz
• Resolution bandwidth (RBW): automatic 2.6kHz to 600kHz

Parts List:

• Spectrum Analyzer
• Quality Mini-USB cable with ferrite bead

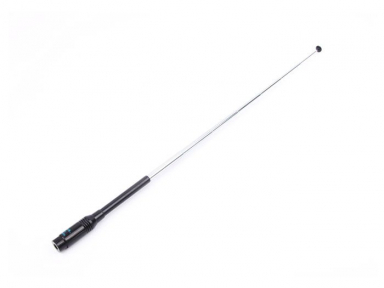

• Telescopic NA-773 antenna

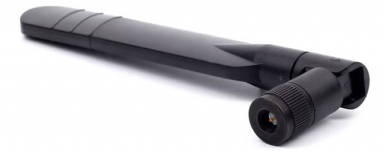

• Rubber duck UHF 400-900Mhz antenna
• EVA case

Note: this RF Explorer is a very sensitive spectrum analyzer, specially designed to detect signals with aerial antenna. For extra protection when connecting the analyzer to a signal source with a coaxial cable, we suggest using a RF Explorer Power Limiter


RF Explorer WSUB1G+ Slim and supplied accessories in the case.

Getting Started:

The first thing you want to do is to power up your unit and play with it! This is perfectly ok; just make sure you are not near any strong RF field before plugging in your antenna in the SMA connector. At very same instant you plug in the antenna, the device will start receiving RF energy even if it is powered off.

This is a battery operated device, please charge the battery before use; it comes with half charge as the standard way to extend the battery life when it is stored for an undetermined period of time. But to use it you should fully charge it. Never charge your device unattended.

Note the device will automatically switch ON as soon as you plug it in the USB port, but that doesn't mean it is being charged: to charge the battery you need to switch the battery power to ON.
