SKU: RF-Explorer-Rubber-Duck-UHF RF Explorer Rubber Duck UHF 400-900MHz SMA Articulated Antenna

RF Explorer Rubber Duck UHF 400-900 MHz SMA Articulated Antenna

This RF Explorer UHF aerial is a high performance, robust rubber duck articulating (bends up to 90°) model for the 400-900MHz range. It is ideal choice for pro audio and video professionals.

It covers various TV and Digital TV Broadcast (DTVB) and the range used for many UHF wireless microphones from major brands. This antenna can be used with the RF Explorer models including the WSUB1G, ISM Combo, 3G Combo and 6G Combo for best reception and sensitivity in the UHF range, also with the RF Signal Generator and other brands of equipment.

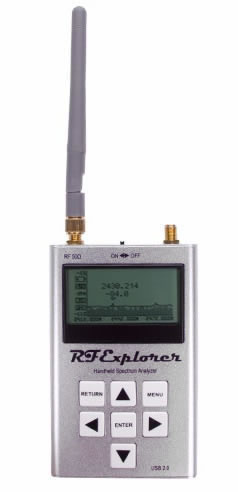

RF Explorer Rubber Duck UHF 400-900MHz SMA Articulated Antenna - shown with RF Explorer available separately.

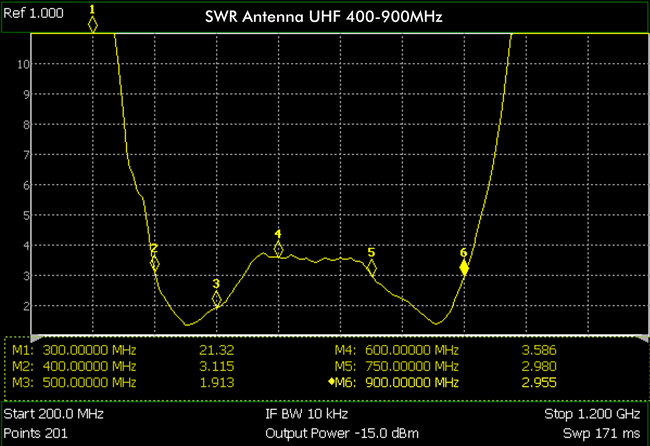

RF Explorer Rubber Duck UHF 400-900Mhz SMA Aerial Frequency Response Curve.

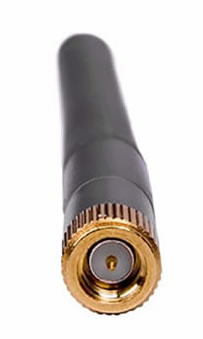

RF Explorer UHF 400-900Mhz SMA Aerial

Features:

• Impedance: 50 Ohm
• Connector: SMA male
• Type: rubber duck articulated
• Characterised response: 400-950MHz
• VSWR: <2 (450, 850 MHz)
• VSWR: <3.5 (400-900 MHz range)
• Polarisation: vertical
• Gain: up to 3.5dBi
• Max power: 50W

Specifications:

• Dimensions: 80mm x 120mm x 8.3mm (approx.)
• Weight: 13g (approx.)
