SKU: RF-Explorer-Rubber-Duck-58GHz-SMA-Aerial RF Explorer 5.8GHz SMA Articulated Antenna

RF Explorer Rubber Duck 5.8 GHz SMA Articulated Antenna

This 5.8GHz rubber duck omnidirectional aerial is the perfect choice to use with the RF Explorer in 5.8GHz bands. It also has moderate quality reception at 2.4GHz band and therefore can be used as multi-band antenna.

This antenna is included in several RF Explorer models such as 6G and 6G Combo. You can order this as replacement if your original antenna got damaged or lost, or as an extra antenna for multiple purposes such as using it with RF Explorer Signal Generator, or with other equipment brands.

Features:

• Rubber duck 5.8 GHz perfect for WiFi, Wireless Video, FPV drone racing
• Same antenna included in several RF Explorer models
• Impedance: 50 Ohm
• Connector: SMA male
• Type: rubber duck articulated
• Characterised response: 5700-5800MHz (usable at 2.4GHz but not characterised)
• VSWR: <2.0
• Polarisation: vertical
• Gain: up to 2dBi
• Max power: 50W
• RoHS compliant

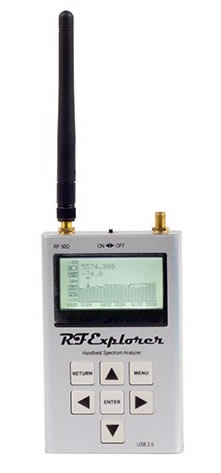

RF Explorer Rubber Duck 5.8GHz SMA Articulated Aerial shown with RF Explorer (available separately).

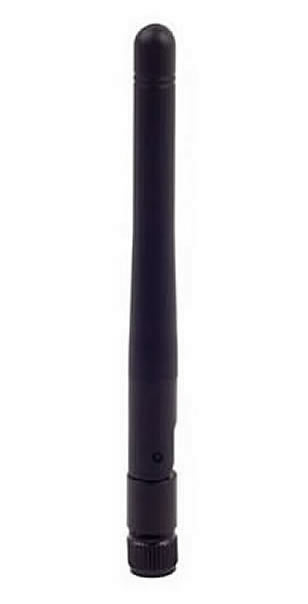

RF Explorer Rubber Duck 5.8GHz SMA Articulated Antenna

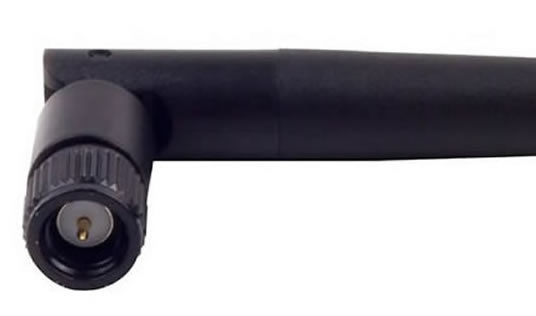

RF Explorer Rubber Duck 5.8GHz SMA Articulated Antenna End View
