RF Explorer 15-2700MHz Expansion Module RFEMWSUB3G
RFEMWSUB3G is an Expansion Module for certain RF Explorer modules. It can be plugged in your RF Explorer unit to extend the coverage to the 15-2700 MHz (0.015-2.7GHz) continuous frequency band. It gets attached internally to the RF Explorer main board and has a second antenna connector to cover the new band.
You can combine any RF Explorer model with any Expansion Module you wish (check the CNC Top Cover option in case your model needs it), note some units already have an expansion module fitted, so cannot have an additional module fitted without removing it first. The firmware will correctly recognise your configuration and will work in all cases. Assembling an Expansion Module to your RF Explorer is very easy, check this article for more details and contact us if you need additional information.
Order the top cover for the correct assembly for the new expansion board here: CNC Top Cover

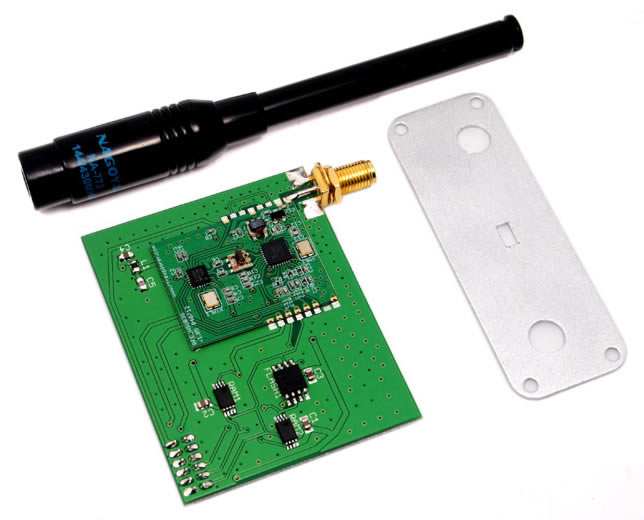

RF Explorer RFEMWSUB3G Expansion Module supplied parts.
Features:
- Easy to plug in your RF Explorer unit, compatible with all models. Optionally, you may want to order a fully assembled RF Explorer 3G Combo including a WSUB1G base model and a RFEMWSUB3G expansion module.
- Includes a transport EVA carry case for the RF Explorer.
- Extend band coverage to any frequency starting at 15MHz and going up to 2.7GHz. This includes very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.
- Extend internal FLASH and RAM memory for additional capabilities.
- Important: Note this unit does not include RF Generator functionality, only Spectrum Analyser functionality is available.
Specifications:
- Frequency band coverage: 15-2700MHz
- Standard SMA 50 Ohm connector, a matching antenna is included
- 50 Ohm wideband Nagoya NA-773 telescopic antenna included
- Firmware: RF Explorer must upgrade to firmware v1.09 or higher to use this module. Note some of the features and operation accuracy may be improved in upcoming free firmware revisions.
Detailed Specification Comparison Chart:
| Model | RFEMWSUB3G | RFEMWSUB1G | RFEM2.4G |
| Spectrum Analyser Frequency (MHz) | 15-2700 | 240-960 | 2350-2550 |
| Spectrum Analyser Span (MHz) | 0.112-100 | 0.112-100 | 0.112-100 |
| Frequency resolution (kHz) | 1.0 | 1.0 | 1.0 |
| DANL typical (dBm) | -110 | -115 | -105 |
| Amplitude resolution (dBm) | 0.5 | 0.5 | 0.5 |
| Automatic RBW (kHz) | 2.6-600 | 2.6-600 | 58-812 |
| Graphics LCD (pixels) | 128x64 | 128x64 | 128x64 |
| LCD Backlight | 5 levels | 5 levels | 5 levels |
| LCD Contrast | 10 levels | 10 levels | 10 levels |
| RF Impedance (Ohm) | 50 | 50 | 50 |
| RF Absolute Max input power (dBm) | +30 | +5 | +5 |
| RF Max measurable input power (dBm) (**) |
-5 - left -10 - right |
-5 | -5 |
| RF Generator Frequency (MHz) | Not available | Not available | 2350-2550 |
| RF Generator Power (dBm) | Not available | Not available | -30 to +1 |
| Wi-Fi Analyser | 13 channels | Not available | 13 channels |
| DSP | Filter/Fast | Fast | Fast |
| Frequency accuracy (typical) | 10ppm | 10ppm | 10ppm |
| Frequency stability (typical) | 10ppm | 10ppm | 10ppm |
| Amplitude stability (typical) | ±1dBm | ±1dBm | ±1dBm |
| Amplitude accuracy (typical) | ±6dBm | ±3dBm | ±3dBm |
| RF DC decoupled | Yes | Yes | No |
| Max RF DC Voltage (V) | 16 | 16 | 0.3 |
| Extra RAM | 64KB | 64KB | 64KB |
| Extra ROM | 2MB | 2MB | 2MB |
| Antenna included | NA-773 | NA-773 | Whip 2.4GHz |
| EVA Case included | Yes | Optional | Optional |
Notes:
- Note: All 2.4GHz models support now an extended frequency band from 2350 to 2550MHz by a simple firmware upgrade to v1.08 or newer.
- Note: WSUB1G and WSUB3G models can work with frequency span higher than 100MHz (up to 600MHz) by a simple firmware upgrade to v1.11 or newer.
- (**) Note some frequency ranges may have a more limited, lower measurable range. Please contact us for more details on a particular frequency range if you need to measure input power close to -10dBm. In all cases, using a 20 or 30dB attenuator is suggested in order to lower the input power to a -30 or -40dBm range, as it will exhibit better behaviour by limiting spurious and signal overload. If you use an attenuator, you also improve the VSWR of the measurement and can be adjusted in OffsetDB parameter of RF Explorer ATTENUATOR MENU in order to read the exact value on screen, saving you from doing any math.
