SKU: RF-Explorer-Directional-Patch-24-GHz-Antenna Directional Patch 2.4GHz SMA Articulated Aerial

Directional Patch 2.4 GHz SMA Articulated Antenna

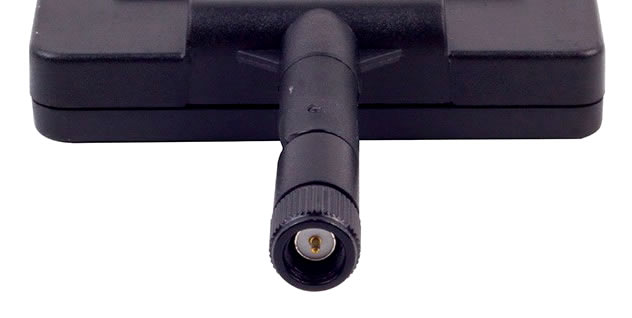

The 2.4GHz directional antenna is a high gain, excellent choice to use RF Explorer analyser to scan in a specific direction. As opposed to omnidirectional antennas such as dipole types, this patch antenna has an 8dBi gain in the front face. It includes a true SMA connector (not RP-SMA as most in the market) and therefore fits perfectly on all RF Explorer models plus SMA connections on other devices.

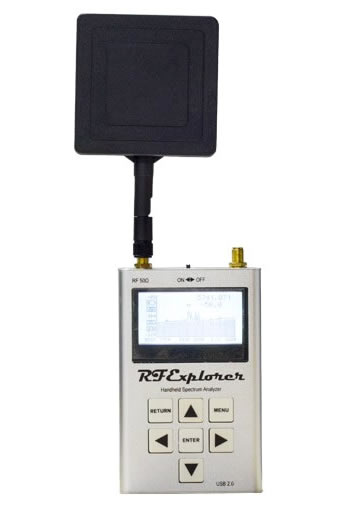

This antenna is recommended for high sensitivity detection of RF sources with suitable RF Explorer Spectrum Analysers, including distant transmitters, focus and orientate antennas or find nearby hidden bug devices. It is also perfect to find your lost drone or RC plane as long as still transmit valid signal and optimise your wifi network.

Alternatively, it can be used in the RF Explorer Signal Generator to produce a quality long distant RF source to determine path loss and adjust antenna orientation in an RF link.

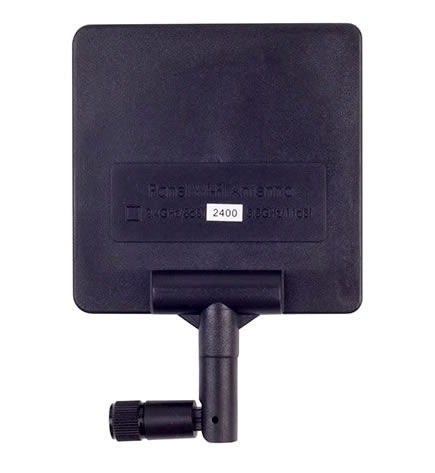

Directional Patch 2.4GHz SMA Articulated Antenna for RF Explorers - Rear View

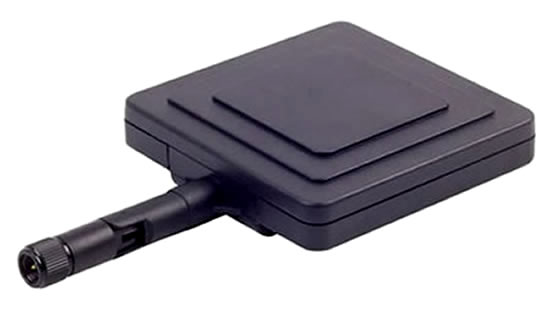

Directional Patch 2.4GHz SMA Articulated Antenna for RF Explorers
