SKU: RF-Explorer-6G RF Explorer 6G Spectrum Analyser

RF Explorer 6G Spectrum Analyser with 4850-6100 MHz Frequency Range - Australian Local Stock

RF Explorer is a hand-held digital spectrum analyser, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost. It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

This model includes a 6G baseline standard unit. It comes with one SMA connectors and a rubber duck 5.8 GHz antenna, good for 5.2 to 6.0 GHz scanning. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported, not supplied. Can be extended with internal Expansion Modules for additional band and functionality, and easily convert it to a 6G Combo or WiFi Combo more capable models.

This model offers coverage for most used communication frequency range used in modern communication technologies including 5GHz WiFi, Wireless Video, 5.8GHz ISM, Satellite, etc.

RF Explorer 6G Features (See details specs in the table further below):

• Pocket size and light weight
• Solid aluminium metal case
• Spectrum analyser mode with peak max, hold and normal, as well as overwrite and averaging modes.
• Lifetime free firmware upgrades available, open to community requested features.
• High capacity LiPo for 16hrs + of continuous run rechargeable by USB.

Note this unit does not include RF Generator functionality, only Spectrum Analyser functionality is available.

Specification:

• Frequency band: 4850-6100 MHz
• Frequency span: 2 kHz - 300 MHz (can extend to 600 MHz with any expansion module connected)
• Graphics LCD 128x64 pixels, great visibility outdoors
• Downloadable PC Windows
• Backlight for great indoor visibility
• One standard SMA 50 Ohms Spectrum Analyzer connector: 4850-6100 MHz
• Amplitude resolution: 0.5 dBm
• Dynamic range: -105 dBm to -15 dBm
• Absolute Max input power: +25 dBm
• Average noise level (typical): -105dBm
• Frequency stability and accuracy (typical): ±0.5 ppm
• Amplitude stability and accuracy (typical): ±3 dBm
• Frequency resolution: 1kHz
• Resolution bandwidth (RBW): automatic 58 kHz to 812 kHz
• Size: 113 x 70 x 25 mm approx.
• Weight: 185g approx.

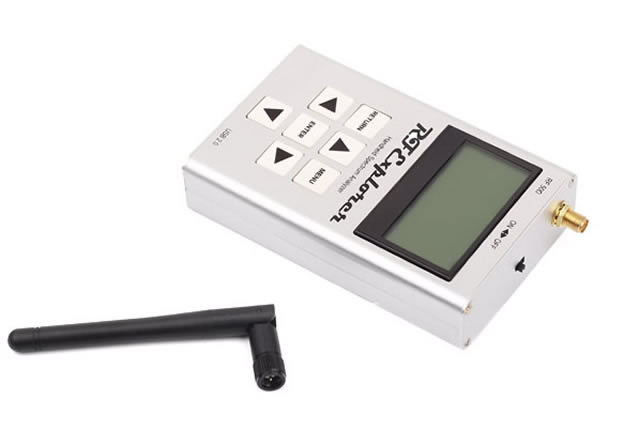

RF Explorer 6G Spectrum Analyser- note actual product might look slightly different depending on the exact version.
