SKU: Monacor-110580-AT62SK-LPad Loudspeaker Level Control Attenuator L-Pad AT-62SK

Monacor AT-62SK L-Pad Level Control Attenuator

Part-No.: 0110580

L-Pad Attenuator for loudspeaker level control.

Features:

• High-performance level control
• Mono version
• With push-on knob
• Thread length: 19 mm

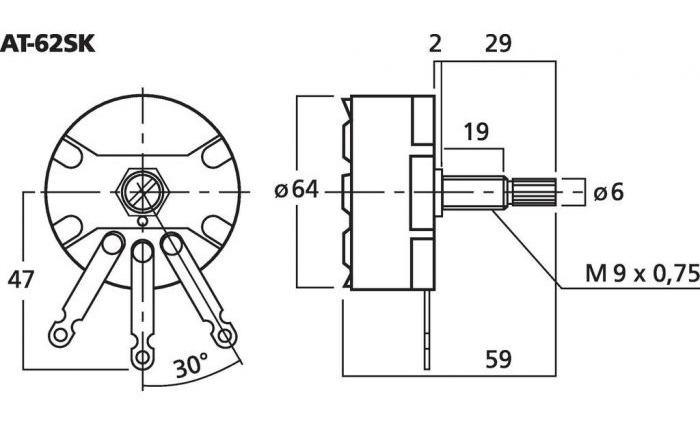

Monacor AT62SK L-Pad Attenuator dimensions (approx.)

Specifications:

• Impedance: 8 Ohm ± 20%
• Channels: One / Mono
• Attenuation: 0 dB to ∞ dB
• Attenuation Direction: Counter-clockwise
• Turning angle: 300° ±5°
• Power Rating: 100 W Max
• Admiss. ambient temp: 0-40 °C
• Weight: 127 g

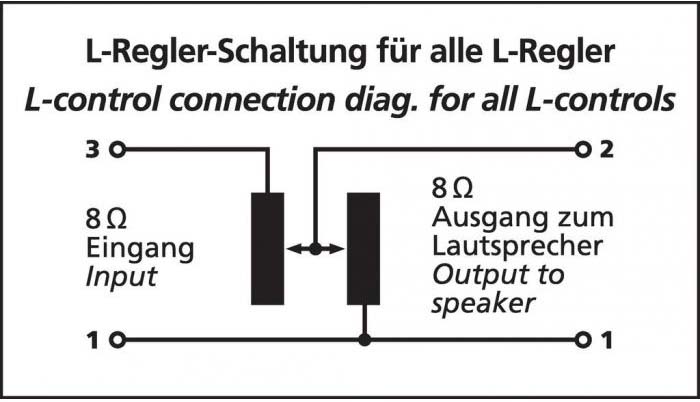

L-Pad Attenuator suggested connection diagram.
