SKU: M-102250-RBT95 Monacor RBT-95 Ribbon Tweeter

Monacor RBT-95 Ribbon Tweeter - 60 WMAX - 30 WRMS, 8 Ohm

Part-No.: 10.2250

• Magnetostatic tweeter / speaker with a high efficiency
• Perfectly fine dynamic reproduction of the high range and the brilliance frequency range
• Power capability of the system can be considerably increased by using voltage dividers and even higher crossover frequencies
• Very light sound of low distortion which particularly improves the stereophony in applications from 5 kHz onwards
• By adding a super tweeter above 8-10 kHz, e.g. even high-quality full range systems can be further improved

Review: Klang+Ton 06/2006

"A very favourable price and amazingly good measured values ... simply showed a perfect performance."

Specifications:

• Technical Facts Speakers Impedance (Z): 8 Ohm
• Resonant frequency: (fs) 4,500Hz
• Max. frequency range: fx-22,000Hz
• Rec. crossover freq. (12dB: 5,000Hz
• Music power: > 60WMAX
• Power rating: > 30WRMS
• SPL (1W/1m): 98dB
• Mounting cutout: 80 x 45mm (approx.)
• Mounting depth: 17mm (approx.)
• Dimensions - diameter: 95mm (approx.)
• Weight: 120g (approx.)

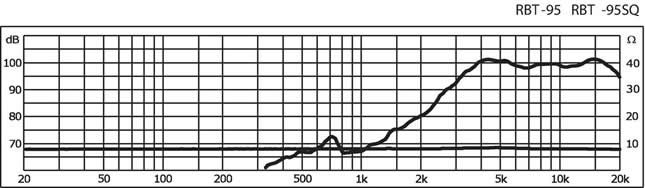

Monacor RBT95 frequency response graph.

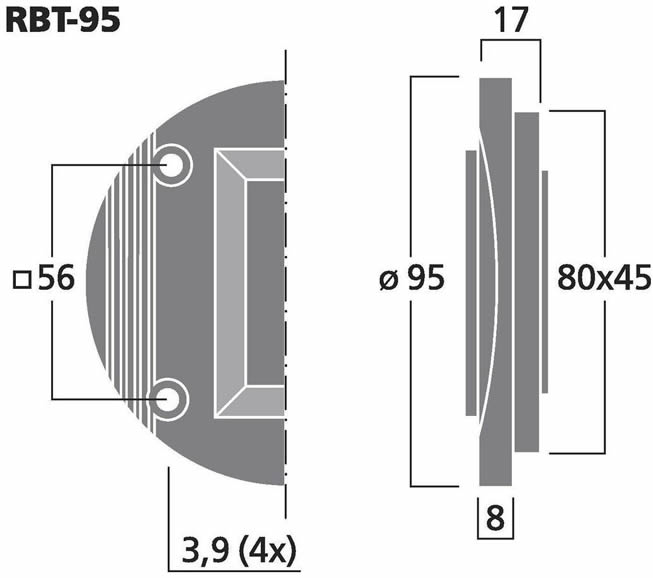

Monacor RBT95 technical and dimension diagram.
