SKU: M-010870-MS525-Switch-DPDT MS-525 Double Pole Double Throw Switch

Miyama MS-525 Toggle Switch - Double Pole / Double Throw (DPDT)
Part Number 01.0870

Precision Miyama toggle switch for high quality switching functions, high switching current and long-life, thus especially suitable for audio, industrial and other professional applications. With central fixing 6mm. For safety extra-low voltage or signal voltage. Low contact resistance of max. 20mOhm. Sealed soldering contacts, chromium-plated toggles. Not for high voltage or mains voltages!

• Switch Function: 2x On / On
• Power Rating: 6A
• Mounting Hole Diameter: 6mm
• Supplied per each

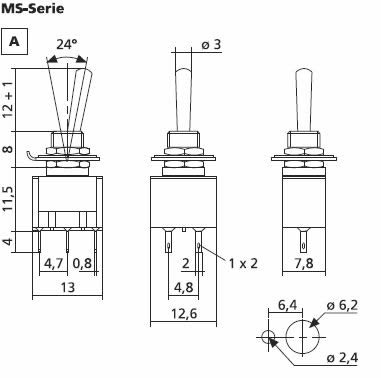

MS525 Dimensions - Note diagrams may also represent various other switch configurations.
