SKU: ETS-SM1WPW-Microphone Weather Proof IP67 Microphone with Wind Screen SM1-WPW

ETS IP67 Weather Proof, Harsh Environment, Omni-directional Microphone with Windscreen SM1-WPW

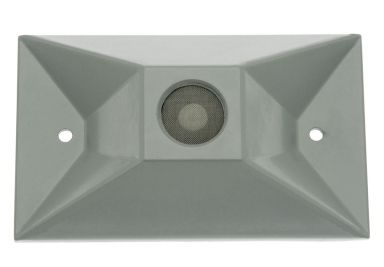

Weather proof microphone for hostile environments such as outdoor applications, on board ships, rooms that are washed down daily, etc. high performance, durable electret element can withstand direct exposure to high pressure water and even submersion without affecting operation. Includes a removable 1.27cm (0.5 inch) wind screen inserted into a directing tube. Cast aluminium plate mounts on any flat surface or on a single gang 'bell box', gasket included.

Applications for the weather resistant microphones include:
Outdoor areas, boats, ships, trains, buses, tour coaches, railways, airports, fire trucks, ambulance, emergency vehicles, marine, railway stations, loading docks, warehouses, entrance gates, dispatch, supermarkets, food areas, restaurants, outdoor displays, hospitals, conference areas, control centres, clubs, pubs, bars, front gates, remote access, control points, remote monitoring, asset protection, theft prevention, security, alarm systems, casino soft count rooms, booking rooms, interrogation rooms, police, prisons, sleep disorder centres, therapy labs, convenience stores, fast food restaurants, nanny cams, conference rooms, zoos, parking structures, elevators, stairwells, industrial process monitoring, etc. Anywhere CCTV cameras are installed, these can typically be installed.

• Omni-directional 7.6m (25') pickup pattern (approx.)
• IP67 Rated
• Low noise MOSFET pre-amplifier
• Adjustable gain
• 500Hz-13kHz Frequency response
• Peak Limiter: 0.5sec response time
• Potted internal electronics. Ideal for high vibration and harsh environments
• Corrosion resistant electret element
• 100 Ohm unbalanced output
• Flying leads termination
• Power: 12 to 24VDC @ 10mA
• On-board voltage regulator and RFI filtering
• Industrial temperature range: -40°C to 105°C
• Cast aluminium plate mounts on any flat surface or on a single gang 'bell box', gasket included
• Dimensions: L 11.7cm x W 7.1cm x H 5.9cm; (L 4.6" x W 2.8" x H 2.3" ) - approx

Download Product Specification Sheet (PDF)
Download Installation Instructions (PDF)
