SKU: Dynavin-D8-PSS-PSB Dynavin Carplay Android Auto System Porsche Boxster Cayman 911 Carrera

Dynavin D8 PSs Pro

Car radio with 7 inch touchscreen, Bluetooth, built in DAB, Apple CarPlay and Android Auto support.

• 2004-2012 Porsche Boxster
• 2004-2012 Porsche Cayman
• 2004-2012 Porsche 911
• 2004-2012 Porsche Carrera

These units are ideal as a direct replacement of your existing radio system in your car. Designed to fit like the original unit and integrate as far as possible with the vehicle, but with many enhanced and new features plus integration with steering wheel controls. Dynavin car infotainment systems are a perfect upgrade to bring your car up-to-date with the latest technology at a reasonable price.

Steering Wheel Control	Rear View Camera Guidance
Works with Apple CarPlay	Works with Android Auto	Built-in DAB
Fast Boot	Google Play Store	Customisable Start Screen

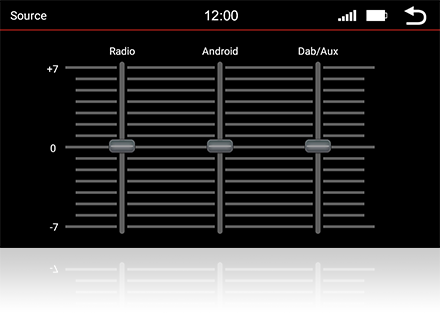

Fader and Balance	Equaliser Presets	Sound Settings

• Android OS
• Apple Car Play / Android Auto
• Power Output: 4 x 45 W High Power Amplifier
• 3 Pre-outs (3V, Front / Rear / Subwoofer)
• CANBUS Integration
• Menu Language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
• Camera connection and built-in controls compatible with many factory cameras (adaptor may be needed) or aftermarket cameras, guideline adjustment. Reverse signal either by trigger wire or CANBUS
• Fast boot-up for regular driving, deep sleep to save power after a couple of days
• 9-Band EQ
• Auto dimmer setting

Screen

• Display: 7-inch
• Resolution 1024 x 600 pixels
• Capacitive touch screen
• Anti-reflection display

• Supports Wireless Apple CarPlay and wired Apple Car Play
• Supports wired Android Auto

DAB+

• DAB/DAB+ built-in
• Station memory: 15 programmable memory locations

Bluetooth

• Integrated BT module
• Phonebook synchronization with 1000 entries
• Hands-free function with HFP
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Individual profile connection: hands-free function and music streaming
• Phonebook: Automatic phonebook transfer
• Supports dashboard display for caller alerts where available
• Supports saving pairing information for multiple phones
• Call list: dialled number / received calls / missed calls
• Speech volume setting: adjustable for incoming and outgoing calls
• Microphone gain adjustable
• Display of the signal strength
• Display of the battery charge level

A2DP

• BT audio streaming from cell phone
• Display song details where available
• Steering wheel can control up/down song/volume level where available

USB

• USB specification: USB 2.0, fast charging support
• Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
• Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV) - where allowable by local laws
• Image browsing (supported formats: JPG/BMP/PNG/JPEG)
• Playback mode: random play / single song loop / all loop / folder loop
• Picture can be set as starting screen
• Supports dashboard display of songs/composers where available
• Supports steering wheel to control up/down song/volume level where available
• File / Folder name search
• Supports up to 256 GB USB storage device

Sound Tuning

• Maximum output power: 4 x 45 W
• Adjustable subwoofer level
• Subwoofer, Bass, Middle, Treble phase selectable

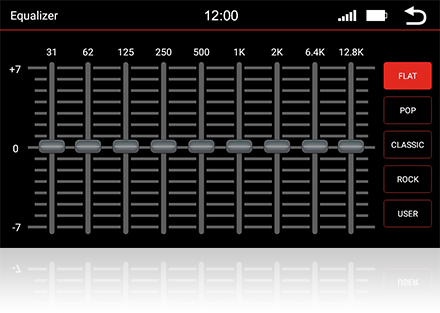

• Equaliser Presets: Pop, Rock, Classical
• 9-band parametric equaliser

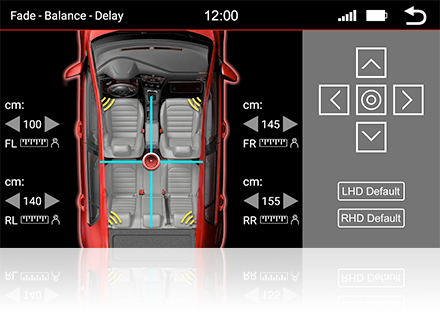

• Fader and balance
• Digital time correction

Radio

• FM frequency range: 87.5 – 108.0 MHz
• AM frequency range: 522 – 1629 kHz
• Manual station storage for 15 stations
• High Cut high frequency attenuation function
• Radio aerial trigger output
• Radio aerial phantom power where applicable

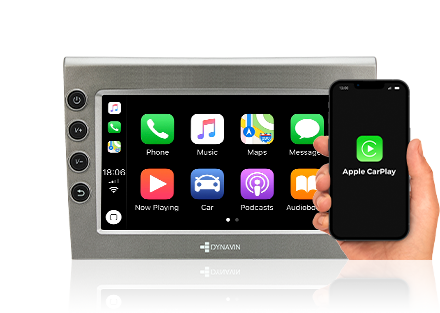

Wireless Apple Car Play / Wired Apple Car Play

With Apple CarPlay, iPhone users have an incredibly intuitive solution on board to make calls, use maps, listen to music and use messages with just a word or the touch of a button. You can enjoy Spotify, Internet radio or podcasts while still fully concentrating on the traffic, depending on what apps you have installed. The Dynavin 8 Platform supports Wireless Apple CarPlay.

Android Auto

Android Auto connects your Android phone to your car’s touchscreen display allowing you to use your Android phone while driving without having to pick it up. With Android Auto, Android users have an incredibly intuitive solution to make calls, use maps, listen to music and use messages with just a word or the touch of a button.

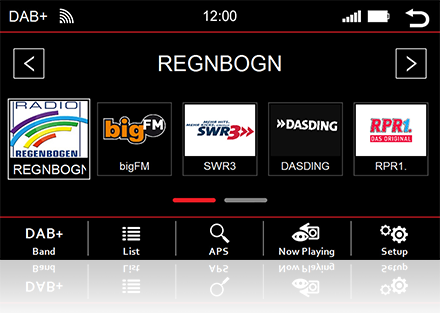

Built in DAB

DAB/DAB+ offers you an accurate, transparent sound. For uninterrupted reception, the tuner offers DAB and to DAB + , SLS (text information accompanying the program), Radio VIS (station cover on your radio display) and other helpful information where available.

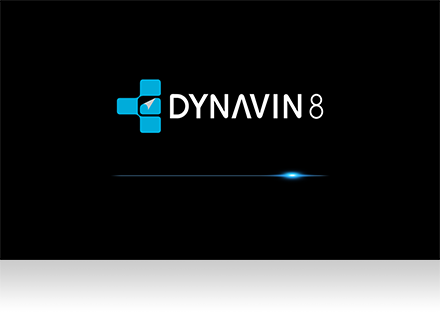

Fast Boot

The Dynavin 8 fast boot feature lets the radio system boots in 3 seconds. The fast boot is disabled to save the battery energy after the car has been switched off for more than 48 hours.

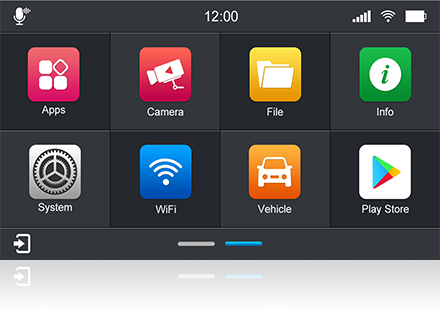

Google Play Store

The Google Play Store feature lets users install Android apps after connecting to the Internet via Wifi connection, such as a hotspot to your phone. Google account required, fees may apply from Google.

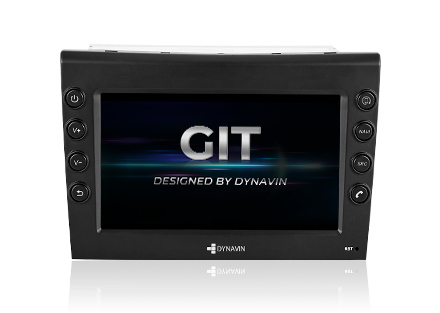

Customisable Start Screen

With the DynOS operating system, you have the ability to change the start-up screen image and store radio stations images.

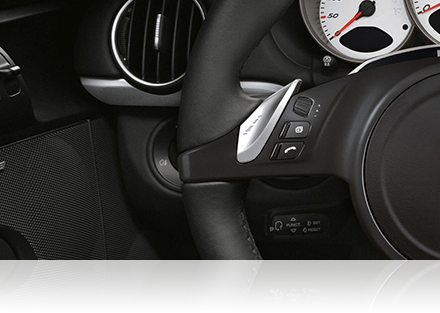

Steering Wheel Control

The Dynavin system communicates seamlessly with the steering wheel functions of your vehicle. This allows you to control volume, telephone, track search (forwards / backwards) and other functions as usual. When a smartphone is connected to the system, you can even activate voice control such as "Siri" or "Google Assistant" via the steering wheel. This feature is vehicle dependant.

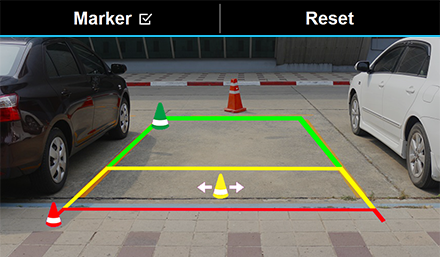

Reverse Camera

Whether your vehicle is equipped with the factory reverse camera, or an aftermarket camera, it can be supported by the Dynavin 8 Platform. You can see the dynamic guide lines in the reverse camera mode. Adaptor may be required for factory connections. Unit has a standard RCA connection.

Supplied Parts

• Main unit with LCD (and extension cable if necessary)
• Wiring harness adaptor
• DAB antenna
• GPS antenna (in many cases you can use the original GPS aerial)
• USB extension cables
• Microphone
• Wifi aerial
• Reverse camera RCA connection (camera not included)
• Quick start guide (manual via online link)
