SKU: CANGOclick-Pickup CANGOclick CANBUS JBus Data Induction Pickup

CANGOclick CANBUS or JBUS Data Induction Pickup

Sometimes problems occur when connecting directly to the vehicle's CANbus by soldering or crimping: error signals, cutting wires, warranty issues and more... Once the CAN High and CAN Low are identified, then you have to find the best way to connect to them. Now you can avoid all these inconveniences by using the CANGOclick which works by inductively reading the data.

The CANGOclick can be used to read CANBUS and J-Bus and it is available in two versions: CANGOclick like cable accessories for FMS / J1708 interfaces, or CANGOclick cable for your trace & tracking devices. CANGOclick reads vehicle signals without making a wire to wire connection. This technology guarantees that no intrusive signals are send to the vehicle CANBUS or J-Bus. This eliminates liability matters, warranty issues or dangerous wrong connections.

Three versions available:

• CANBUS for 3.3V DC supply and 4 pin Molex
• CANBUS for 8-40V DC supply range and 4 pin Molex (Part No. 6164-30)
• J-Bus (J-Line) for 3.3V DC supply and 4 pin Molex

Connection with the CANGO FMS device, can also be used with other systems. (Colours can vary, main unit not included.)

Key Benefits:

• No direct wiring connection to the CANBUS and J-bus connections
• One cable fits all vehicles / equipment
• 100% accurate reading of the CANBUS and JBus data signals
• 100% non-intrusive technology
• Safe and reliable reading of CAN BUS and J Bus data
• No soldering, wire cutting or crimping to the vehicle’s factory wiring
• No physical wire to wire connections
• Can be removed with virtually no trace

Specifications:

• Supply voltage: 3.3V DC for standard CANBUS and J-Bus version (3.0 - 3.6V DC range)
• Supply voltage: 8 - 40V DC
• Molex connector (4 pin) on cables - suitable for CANGO FMS device, can be cut if required (not 8-30V model)
• Dimensions (without cable): Length 40mm, Diameter 14mm (approx.)
• Material: PP + 30% fibreglass
• Colour and appearance can vary
• Cable Length: 1m (approx.)
• Environmental Sealing: IP67 (only click-on part)
• Storage Temperature: −40°C to +90°C
• Operating Temperature: −40°C to +85°C

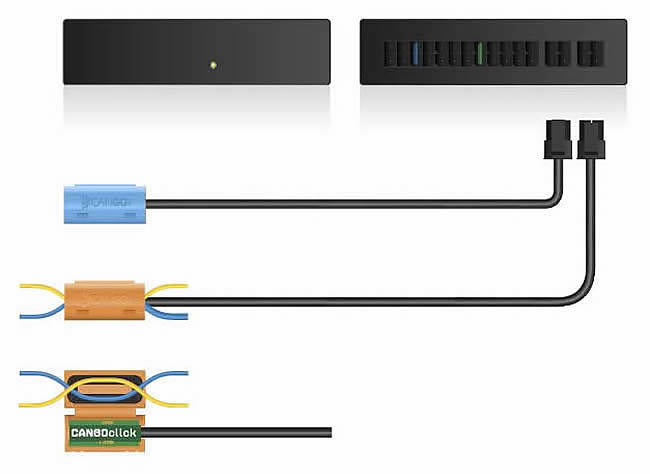

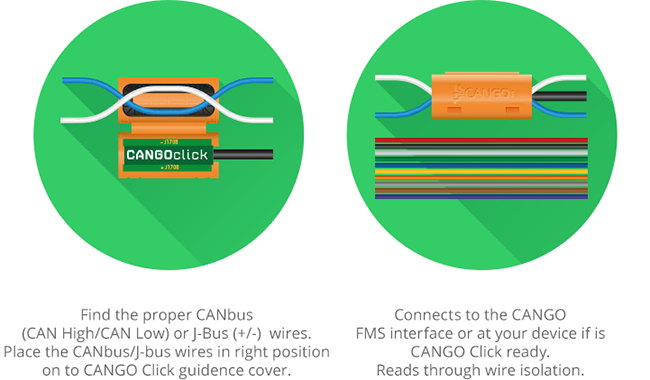

Easy connection with the CANGOclick! Colours may vary.
