Blaupunkt Hamburg SQM23 DAB Car Radio with Bluetooth DAB/USB/iPod
Reintroducing a Legend: The Blaupunkt Hamburg SQM 23 DAB. Remember the iconic Blaupunkt Hamburg car radio from the 1980s? It became a cult favourite for its user-friendly design and crystal-clear reception. Now, Blaupunkt brings it back for a new generation with the Hamburg SQM 23 DAB!
![](/mm5/graphics/blaupunkt/blaupunkt-hamburg-sqm23dab-animation.gif)
Classic Design, Modern Features:
- Timeless Look: We kept the original radio's beloved design, complete with modernised multicolour LCD lighting and durable LED key labels.
- Superior Reception: Experience exceptional audio quality with the Blaupunkt Codem FM RDS tuner and DAB digital radio.
- Modern Connectivity: Play music from your Apple devices or USB drives, and even charge your phone. Stream music directly from your phone using Bluetooth audio streaming.
- Voice Assistant Control: Access your phone's voice assistant (Siri, Google Assistant, or Alexa) for hands-free control without picking up your phone.
- Customisable User Experience: Program a button to launch your favourite audio source directly (USB, iPod, or Bluetooth). Settings are saved even after a power disconnect.
- Perfect for Classic Cars: The short installation depth ensures a perfect fit for vehicles with limited space.
- Nostalgic Packaging: The packaging itself is a delightful throwback, designed to match the original radio's aesthetic.
Embrace the legacy of the Hamburg radio and elevate your classic car's sound system with the all-new Hamburg SQM 23 DAB!
![Blaupunkt Hamburg SQM23DAB features](/mm5/graphics/blaupunkt/Blaupunkt-Hamburg-SQM23DAB-features.jpg)
Specifications:
- High-End CODEM IV World Tuner
- FM, AM, DAB, DAB+ Tuner with Radio Text
- USB (2x)
- MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV support
- Apple iPod Support
- Telephony via internal or external microphone
- Audio streaming with title display
- Voice assistant access (e.g. Siri, Google, Alexa)
- Channel Preamp Output plus Sub-Out
- 4x 50 Watt
- Multicolour LCD (7 colours)
- DIM function
- Night mode lighting for buttons turned off
- Programmable buttons for favourite stations
- Permanent memory storage
- Small installation depth
![Blaupunkt Hamburg SQM 23DAB. Like The Orginal. But Better!](/mm5/graphics/blaupunkt/blaupunkt-hamburg-SQM-23-DAB-Car.jpg)
Blaupunkt Hamburg SQM 23DAB. Like The Orginal. But Better!
Radio Analogue / Digital
- Tuner Type: High-End Automotive Tuner Blaupunkt CODEM IV
- World Tuner (Switchable)
- Frequency bands: FM, AM, DAB, DAB+
- FM frequency band: 87.5 - 108 MHz
- Frequency band MW: 531- 1602 / 530- 1710 kHz
- Channels (frequency band) DAB / DAB+: 5A- 13F (174.928- 239.200 MHz)
- Number of station memories: 15x FM, 10x AM, 15x DAB
- Channel Display (PS)
- Regional function (REG)
- Program Type ID/Search (PTY)
- Band Scan/ Preset Scan
- Sensitivity (FM): Two levels LO/DX)
- Noise Suppression (FM)
- Alphabetical list of stations DAB
Media Player
- USB Front (Type A)
- USB back (1x Type A, cable)
- Concealed front inputs (USB)
- Compatible formatting: FAT16, FAT32, exFAT
- Maximum storage size: > 128 GB
- Maximum file/folder count: > 30,000
- Playback formats: MP2, MP3, WMA, APE, FLAC, AAC, MP4, WAV
- Display Options: ID3V2 (Title, Artist, Album), Folder, File, Season
- Folder & File Browsing
- iPod, iPhone control (iAP2, Lightning/USB-C): USB front and rear
- Shuffle Folder / Media
- Repeat Title / Folder / All
- Title play function (scan): Time adjustable 4 - 60 seconds
Bluetooth
- Telephone
- Internal microphone
- Connection option ext. microphone
- Accept/reject a call
- Access to the phone book: max. 1000 numbers
- Audio streaming
- Audio Streaming ID3 Track Display: Title, Artist, Album, Playtime
- Access to voice assistants (such as Siri, Google, Alexa)
- Auto wake-up on call: when radio off + ignition on, can be deactivated
- Quick pairing without PIN
- Automatic reconnection: last 5 devices
- Bluetooth Version: V5.0
- Number of paired devices: last 5
- Number at the same time: 1
- Supported Profiles: A2DP, AVRCP, HFP, SPP
- Audio Codecs: AAC, SBC
- Feature availability/support depends on the user phone/app used!
Sound
- Bass / treble adjustment: ± 7 levels
- Source-specific bass / treble adjustment
- Balance/ Fader: ± 7 levels
- Loudness
- Sound Presets: Rock, Pop, Classical
- Speaker Outputs (Channels): 4
- Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
- Sub-Out: 2 (RCA, Gain / Frequency variable)
- Max. power: 4 x 50 watts
- RMS power at 14.4 V: 4 x 24 watts (according to DIN 45324)
General
- Display: LCD, negative, anti-reflective, wide-angle, alphanumeric / symbols
- Scrolling (scrolling text): Yes (once/repeatedly)
- Display Lighting Colour: Multicolour, 7 Colours (Green, Yellow, Red, Purple, Blue, Sky Blue, White)
- Lighting colour buttons: Amber, the original Light bulb lighting modelled
- Day/night mode: Yes (manual/via dimmer connection)
- Night design when turned off: buttons
- Brightness: Multi-level, variable
- Time display
- Hour timer (Automatic Shut-down when ACC off): can be deactivated
- Low standby current: Yes (< 3.5 mA )
- Antenna inputs: FM DIN / ISO (adapter), DAB SMB (with 12 V phantom power)
- Mute input/phone mute: ground-active
- Ext. hands-free microphone connection
- Remote control: IR sensor for card remote control, compatible with old RC-10 Remote Control
- Steering wheel remote control (SWC): analogue, programmable, pre-programmed
- Variable Scan Time: Yes (4, 8, 12, 16, 60s)
- Key tone: can be deactivated
- Control panel type: Fix panel
- Colour panel / décor trim: Black / Black
- Permanent Memory: Settings & Presets
- Weight: approx. 0.65 kg
- Dimensions: 50mm x 178mm x 116mm (H x W x D, body only), 58mm x 187mm x 11mm (H x W x D, front without buttons)
- Operating voltage power consumption: 10.5-14.4 V / < 10A in operation, ACC off after 10 seconds < 3.5 mA
![Hamburg SQM23DAB - What's in the box?](/mm5/graphics/blaupunkt/blaupunkt-Hamburg-SQM-23-DAB-contents.jpg)

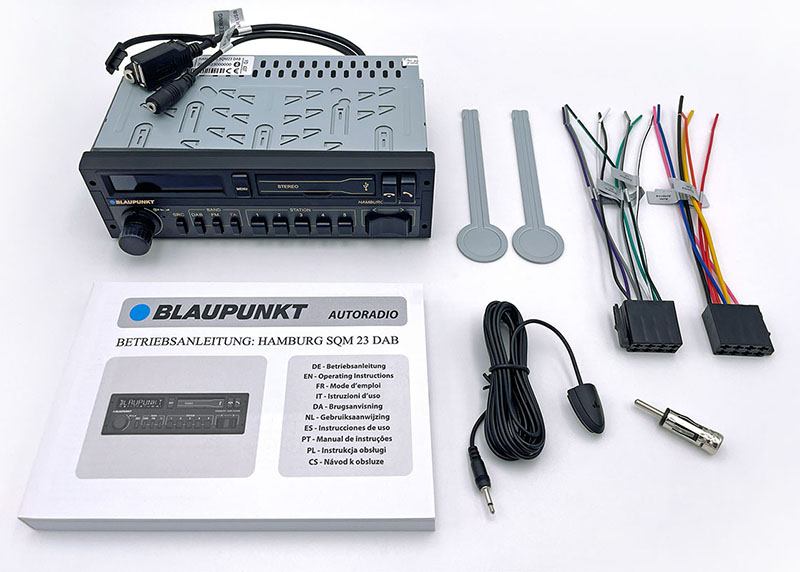

Hamburg SQM23DAB - What's in the box?
Included in the Box
- Instructions
- External BT Microphone
- Unlock tool
- Connection cable (ISO A, B)
- Antenna adapter (DIN/ ISO)
- Note: Does not have cassette player!
