SKU: Blaupunkt-Frankfurt-RCM-82 Blaupunkt Frankfurt RCM 82 DAB Bluetooth USB Car Radio

Blaupunkt Frankfurt RCM 82 DAB - MP3 car radio with Bluetooth / DAB / USB / SD / iPod / AUX-IN

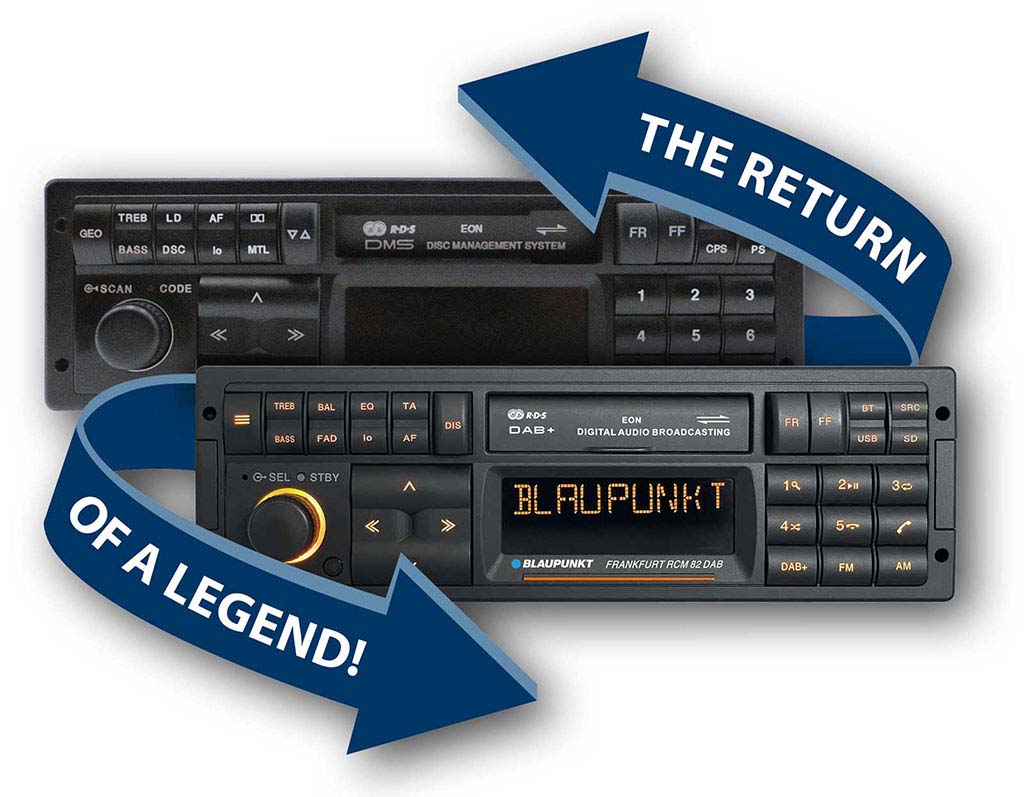

A 90s Legend Reimagined. Get ready to crank up the nostalgia! The iconic Blaupunkt Frankfurt RCM car radio is back, and it's better than ever with the all-new Frankfurt RCM 82 DAB.

Blaupunkt Frankfurt RCM 82 DAB Car Radio

Classic Design, Modern Performance:

• Timeless Throwback: We've preserved the original radio's beloved design, adding a modern twist with Vario Colour illumination for the buttons and display.
• Crystal-Clear Reception: Experience superior audio quality with the Blaupunkt Codem IV FM RDS tuner and DAB/DAB+ digital radio for all your favourite stations.
• Expanded Connectivity: Connect to your devices with ease using the two USB ports, Aux input, and microSD card slot.
• Bluetooth Ready: Stream music directly from your phone using Bluetooth audio streaming. Plus, the radio is "Made for iPhone/iPod" for seamless compatibility.
• User-Friendly Controls: Access your music and settings directly with dedicated buttons and a clear, multilingual menu. All your preferences are saved, even after a power disconnect.

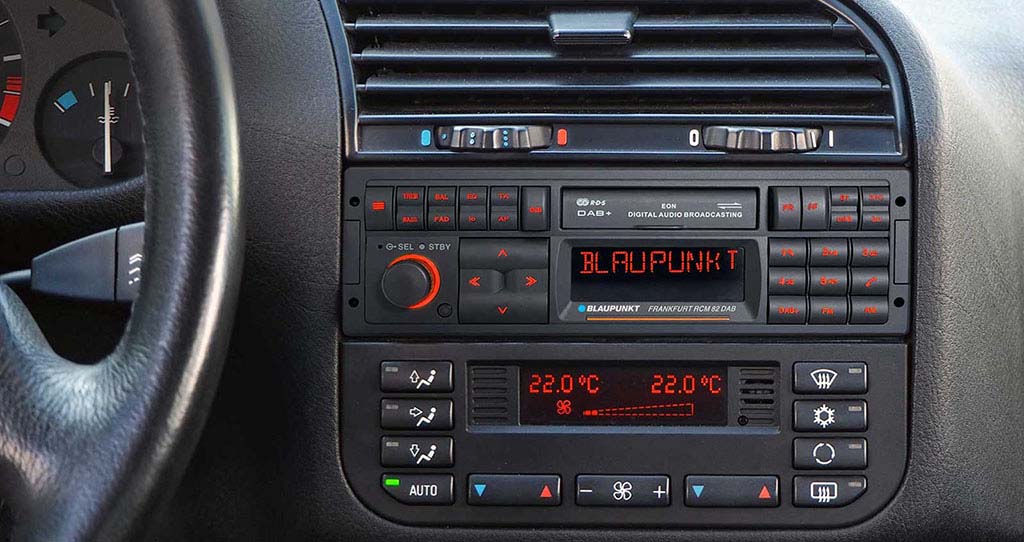

• Perfect for Classic Cars: The shallow installation depth ensures a perfect fit in vehicles with limited space.
• Authentic Packaging: The packaging itself is a delightful trip down memory lane, designed to match the original radio's aesthetic.

Bring the iconic Frankfurt sound back into your car with the Blaupunkt Frankfurt RCM 82 DAB!

Features

• High-end CODEM IV world tuner FM, AM, DAB, DAB+ tuner with radio text / DLS, allusion functions (memory scan/ Tape scan)
• USB (2x), microSD with MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV Support, front AUX, Apple iPod Support
• Bluetooth telephony via international or external microphone
• Audio streaming with title display
• Audio Mix- option for mobile phone navigation
• Access to voice assistants (e.g. Siri, Google, Alexa)
• Wake-up on call
• Twin-Connect
• Phonebook access
• Digital Signal Processing
• 2x 14-band equaliser Sound Presets
• Loudness
• 4-channel preamp output + sub-out
• 4x 50 watts
• Vario Colour (4096 colours)
• 2-line display
• DIM function
• Direct access to all audio sources
• Persistent memory
• Short installation depth

Radio Tuner

• World tuner (switchable)
• Frequency bands: FM, AM, DAB, DAB+
• Frequency band FM: 87.5 - 108 MHz
• Frequency band AM/MW: 531 - 1602 / 530 - 1710 kHz
• Number of stations 15x FM, 10x AM, 15x DAB
• Radiotext
• Travelstore / Memory Travelstore Yes / 5x FMT, 5x AMT
• Band Scan + Preset Scan FM / DAB Yes/ Yes
• Sensitivity (FM) Two levels (lo/ dx)
• Hi-Cut (FM) Yes (multi-stage switchable)
• DAB-DAB Service following where available
• DAB-FM Service following where available

Blaupunkt Frankfurt RCM 82 DAB Car Radio Connections

Media Player

• AUX Front Side: Yes (3.5mm jack)
• AUX-IN automatic detection/activation: Yes
• USB front panel: Yes (Type A, recessed socket)
• USB Rear Panel: Yes (Type A, Cable)
• Memory card reader Yes (microSD, microSDHC, microSDXC)

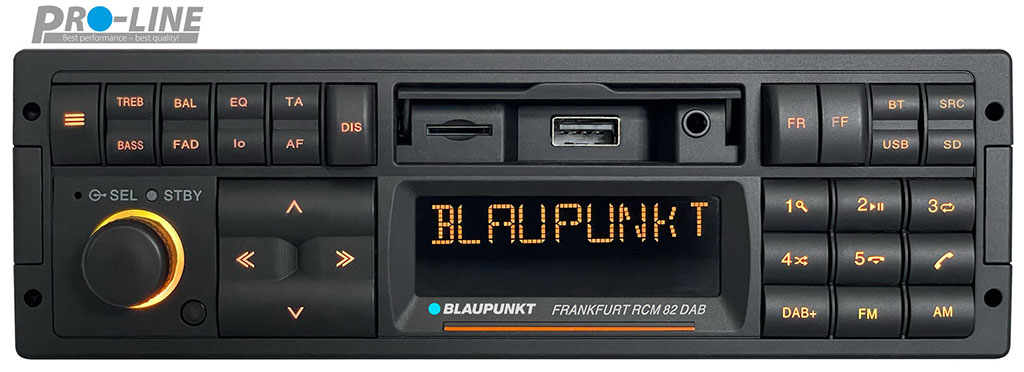

• Concealed front inputs: Yes (USB & microSD with the flap closed) usable
• Compatible formatting: (USB, memory cards) FAT16, FAT32, exFAT
• Maximum memory size: (USB, memory cards) > 128 GB
• Maximum number of files / folders (USB, memory cards): > 30,000
• MP2, MP3, WMA, FLAC, M4A(AAC), APE, WAV formats
• Display options ID3V2 (Title, Artist, Album), Folder, File, Season
• Folder & File Browsing: Yes
• Scrolling: Yes (one-time/repetitive)
• iPod, iPhone control: Yes (via USB front/ rear)
• Shuffle Folder/ Media: Yes / Yes
• Repetition Title / Folder / All: Yes / Yes / Yes
• Mix / Repeat / Scan: Yes / Yes / Yes

Bluetooth:

• Making phone calls: Yes
• Internal microphone: Yes
• Possibility of connecting external microphone: Yes
• Answer/Reject Call: Yes / Yes
• Access Phonebook: Yes (max. 1000 numbers)
• Audio Streaming Yes
• Audio Streaming ID3 Track Display Yes (Title, Artist, Album, Playing Time)
• Access to voice assistants (e.g. Siri, Google, Alexa): Yes
• Mobile Navigation Audio Mix: Yes
• Auto wake-up on call: Yes (when radio off + ignition on)
• Fast pairing without a PIN: Yes
• Automatic reconnection: Yes
• Bluetooth Version 5.0 LE
• Number of paired devices: max. last 5
• Number at the same time: Devices max. 2 (when Twin Connect is enabled)
• Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: aptX, AAC, SBC
• Availability/support of the functions depend on the user phone/app used!

Sound:

• Equaliser number of bands / design / quality filter: 2x 14 / parametric/ 1.00 - 2.00
• Bass / treble adjustment: Yes / Yes (±12 levels)
• Source-specific bass / treble adjustment: Yes
• Balance / Fader: Yes / Yes (±12 levels)
• HPF/ LPF: Yes, separate for front/rear channels, variable
• Loudness: Yes
• Sound Presets: Rock, Pop, Classical
• Speaker outputs (channels): 4
• Preamp outputs (channels, voltage): 4 (RCA, < 4V)
• Max. power: 4 x 50 watts
• RMS power at 14.4 V: 4 x 24 watts (according to DIN 45324)
• Sub-Out: 2 (RCA, Gain/Frequency variable)

General:

• Display LCD, negative, anti-reflective, wide-angle, 2-line, Alphanumeric/ Symbols
• Illumination Colour Display/ Buttons: Vario Colour, 4096 colours
• Day/night mode: Yes (manual/via dimmer connection)
• Brightness: Multi-level, variable
• Time display: Yes
• Low standby current: Yes (< 3.5 mA )
• Antenna inputs: FM DIN/ ISO, DAB SMB (with 12 V phantom power)
• Ext. hands-free microphone jack
• Permanent Memory: Yes (Settings & Presets)
• Weight: approx. 0.67 kg
• Dimensions: 50mm x 178mm x 116mm (H x W x D, housing only), 58mm x 186mm x 10mm (H x W x D, front without buttons), approx.
• Operating voltage/ power consumption: 10.5-14.4 V / < 10A in operation, ACC off < 3.5 mA

Included:

• Unlocking tool
• Connection cable (ISO A, B)
• Antenna adapter (DIN / ISO)
