SKU: Antenna-Soundlabs-Electric-Telescopic Universal Electric Car Automatic Aerial Telescopic

Electric Universal Telescopic Auto Antenna AM / FM

Suitable for many old cars, this electric aerial come with a range of mounting angle parts making fitting easier for different guards, plus a variable option. Ideal replacement for Hirschmann aerials with screw type thread. Great for restoration projects or replacement of faulty original equipment power antenna, such as the now discontinued Hirschmann aerials. With 11 angle attachments and mounting parts, this powered antenna suits many cars, including many Mercedes-Benz models.

To optimise the reception of antennas, always ensure an optimum ground connection of the antenna base or the ground strap during installation. Remove existing paint at the contact points with workshop materials and protect against corrosion with suitable contact paste and also treat the antenna rod thread and the antenna base thread to optimise contact.

Specifications:

• Minimum hole size: 14.5mm
• Will fit vehicles with existing holes up to 22 mm
• Power connection:
  • Red: +12V DC continuous current terminal 30 fused
  • Black: ground (terminal 31) body
  • Blue: +12V DC antenna remote trigger
• Reception type: AM/FM, can be used with DAB adaptors
• Mounting:
  • Fender universal
  • Fender vehicle-specific with knotting/mounting angle
  • Rod inclination 0° - 30°
• Dimensions:
  • Required installation depth: 302 mm
  • Motor housing: L 145 mm / W 90 mm / D 58 mm
  • Ball head diameter: 18 mm / M12 / Thread pitch 1.5
  • Antenna base diameter: 35 mm
  • Rod length: 81 cm (approx.)
• Connection: AM/FM: BP(m) screw connection / Cable: 1.5m length / 3C-2V / 75Ohm BP(f) > DIN(m)
• Power supply: +12V DC
• Current consumption: 0.8A max

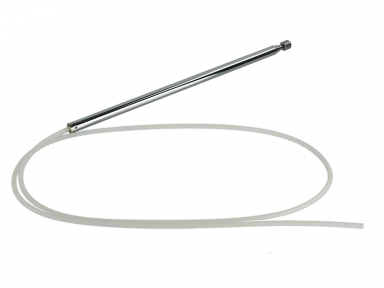

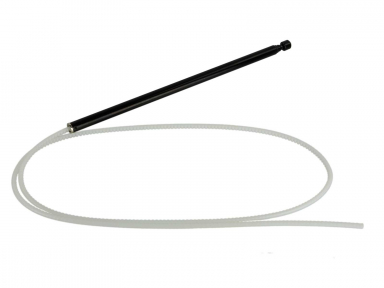

• Replacement masts available.

Compatible with (many other may be possible) - always check sizing before ordering:

Audi
Audi 50 (86) 08/1974 - 08/1978*
Audi 80 (B1/80) 06/1972 - 08/1976*
Audi 80 (B1/82) 08/1976 - 08/1978*
Audi 80 (B2/81/85) 09/1978 - 12/1987*
Audi 90 (B2/81/85) 11/1984 - 10/1986*
Audi 90 (B3/89) 05/1987 - 12/1991*
Audi 100 Sedan (C3/44) 10/1982 - 12/1990*
Audi 100 Sedan (C4) 12/1990 -  07/1994*
Audi 200 Sedan (C3) 09/1983 - 01/1988*
Audi A6 Sedan (C4/4A) 06/1994 - 03/1997*

BMW
BMW 3er (E30) 12/1982 - 06/1994*
BMW 3er Sedan 4 Door (E36) 09/1990 - 08/2000*
BMW 5er Sedan (E28) 06/1981 - 12/1987*
BMW 5er Sedan (E34) 01/1988 - 09/1995*
BMW 7er Sedan (E23) 05/1977 - 12/1986*

Landrover
Landrover Defender (LD) 09/1990 - 08/2016*

Mercedes
Mercedes series Strich-Acht (W114 / W115) 08/1973 - 02/1976*
Mercedes series 190 (W201) 09/1988 - 06/1993**
Mercedes series 123 Coupé (C123) 06/1977 - 11/1985**
Mercedes series 123 Sedan (W123) 08/1977 - 06/1984*
Mercedes series 124 (124) 01/1985 - 07/1993**
Mercedes S-Classe Coupé (C126) 126 09/1981 - 12/1991*
Mercedes S-Classe Sedan (W126) 09/1979 - 06/1991*

Opel
Opel Ascona (C1) 08/1981 - 10/1984*
Opel Ascona (C2) 10/1984 - 09/1996*
Opel Ascona (C3) 09/1986 - 12/1998*
Opel Astra (F) 08/1991 -  03/1998*/**/***
Opel Kadett (D) 04/1982 - 09/1984*
Opel Kadett (E) 09/1984 - 02/1999*/****
Opel Manta (B) 08/1975 - 09/1988*
Opel Monza (A1) 04/1978 - 11/1982*
Opel Monza (A2) 06/1983 - 12/1986*
Opel Omega Sedan (A) 10/1986 - 03/1994*
Opel Rekord (E1) 08/1977 - 11/1982*
Opel Rekord (E2) 11/1982 - 10/1986*
Opel Senator (A1/A2) 05/1981 - 12/1996
Opel Senator (B) 08/1990 - 05/1993**
Opel Vectra Limousine (A) 10/1988 - 12/1995**

Saab
Saab 9000 (CC/CD/CS) 1988 - 1998*

Seat
Seat Ibiza (021A) 04/1985 - 11/1993*
Seat Toledo (1L)  09/1991 - 02/1996*

Skoda
Skoda Favorit (781)  06/1989 -03/1995*
Skoda Forman (785) 09/1991 - 09/1995*

VW
VW Derby (86/86C) 01/1977 - 01/1985*
VW Golf I (17) 05/1974 - 08/1983*
VW Golf II (19E) 08/1983 - 08/1987*
VW Golf II (19E/1G1) 08/1987 - 12/1991*
VW Golf III (1H) 09/1991 - 02/1998**/***
VW Jetta I (16) 11/1979 - 01/1984*
VW Jetta II (16E/19E) 02/1984 - 12/1991*
VW Passat I (B1) 08/1973 - 10/1980*
VW Passat II (B2) 10/1980 - 03/1988*
VW Polo I (86) 03/1976 - 06/1981*
VW Polo II (86C) 07/1981 - 06/1990*
VW Santana (B2) 03/1983 - 12/1994*
VW Scirocco (53) 03/1974 - 02/1981*

*vehicles with an OEM antenna the hole may have to be expanded
*vehicles with antenna preparation at factory installation hole 14.5 mm
**vehicles with mounting bracket
***Estate vehicle not compatible
****Opel Kadett (E) GSI 16V not compatible
