SKU: Antenna-Active-Splitter-AM-FM-DAB-FAKRA Car Aerial Active Splitter AM FM DAB with FAKRA and Adaptors

Active Car Aerial Splitter AM/FM/DAB with FAKRA Connectors and Cable Adaptors

Active AM/FM/DAB splitter that guarantees excellent separation of AM/FM and DAB signals. Suitable for connecting a digital radio receiver to a passive AM/FM antenna with a rod for reception of DAB frequencies.

Specifications:

• AM / FM aerial to DAB/DAB+ active splitter
• Three different adaptor cables (see below)
• Compatible with passive AM/FM or AM/FM/DAB antennas
• Universal FAKRA (m) connectors for input and output
• Frequency range AM/FM: 0.52 - 1.71 MHz / 87 - 108 MHz
• Frequency range DAB/DAB+: 174 - 240 MHz
• Power Supply Voltage: +12V DC
• Current consumption: 110mA max
• Suggested mounting via an adhesive pad or cable ties, for interior use only
• Dimensions (LxWxH): 70 x 38 x 12mm (approx. without connectors / cables)
• Temperature Range: -40°C to +95°C

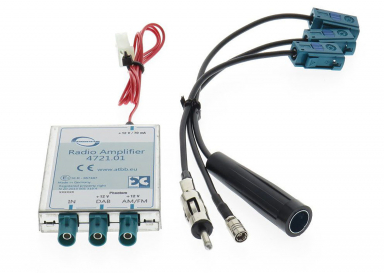

Includes (style may vary):

• Active splitter unit
• FAKRA Z Female to SMB Female
• FAKRA Z Female to DIN Male
• FAKRA Z Female to DIN Male
